DP-24SD

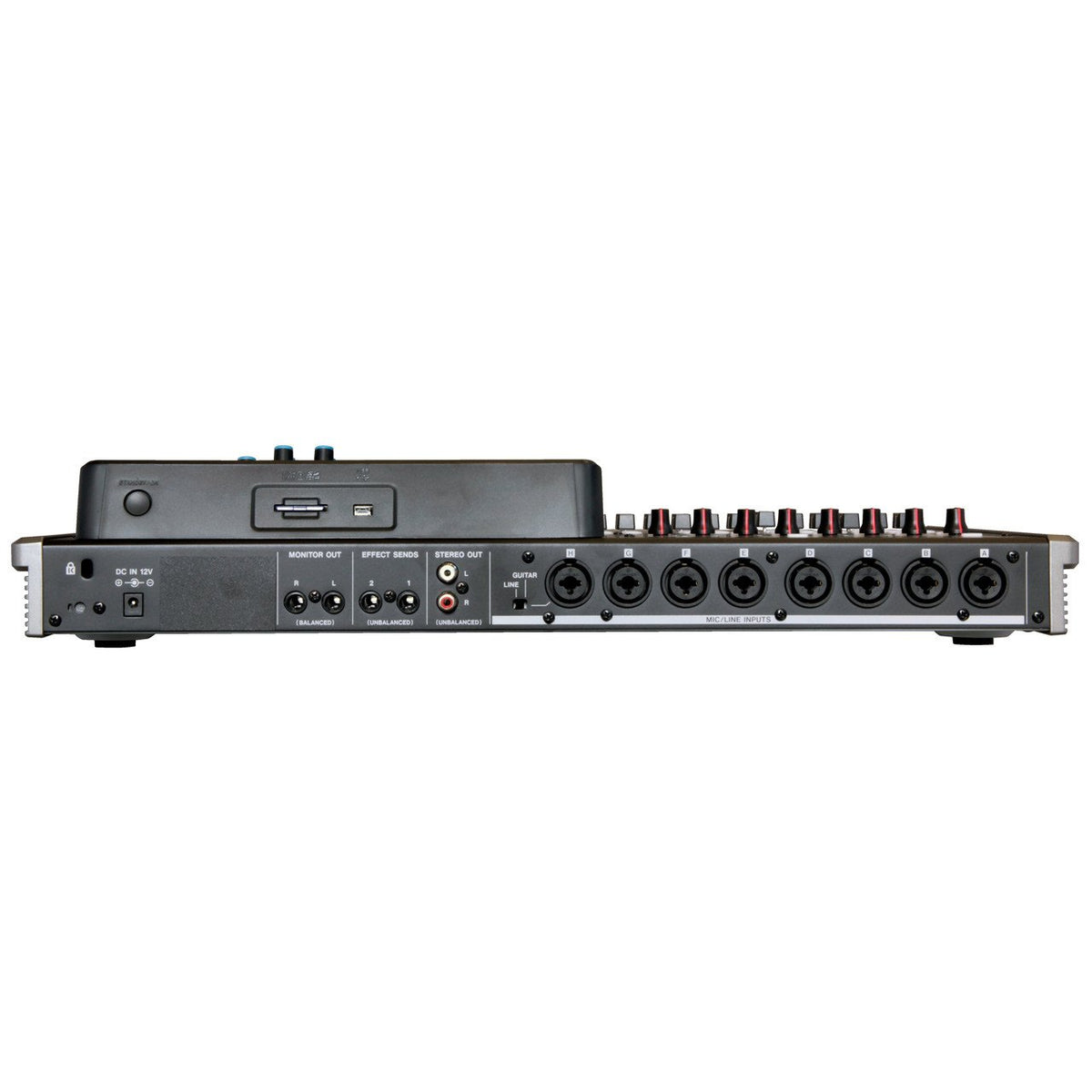

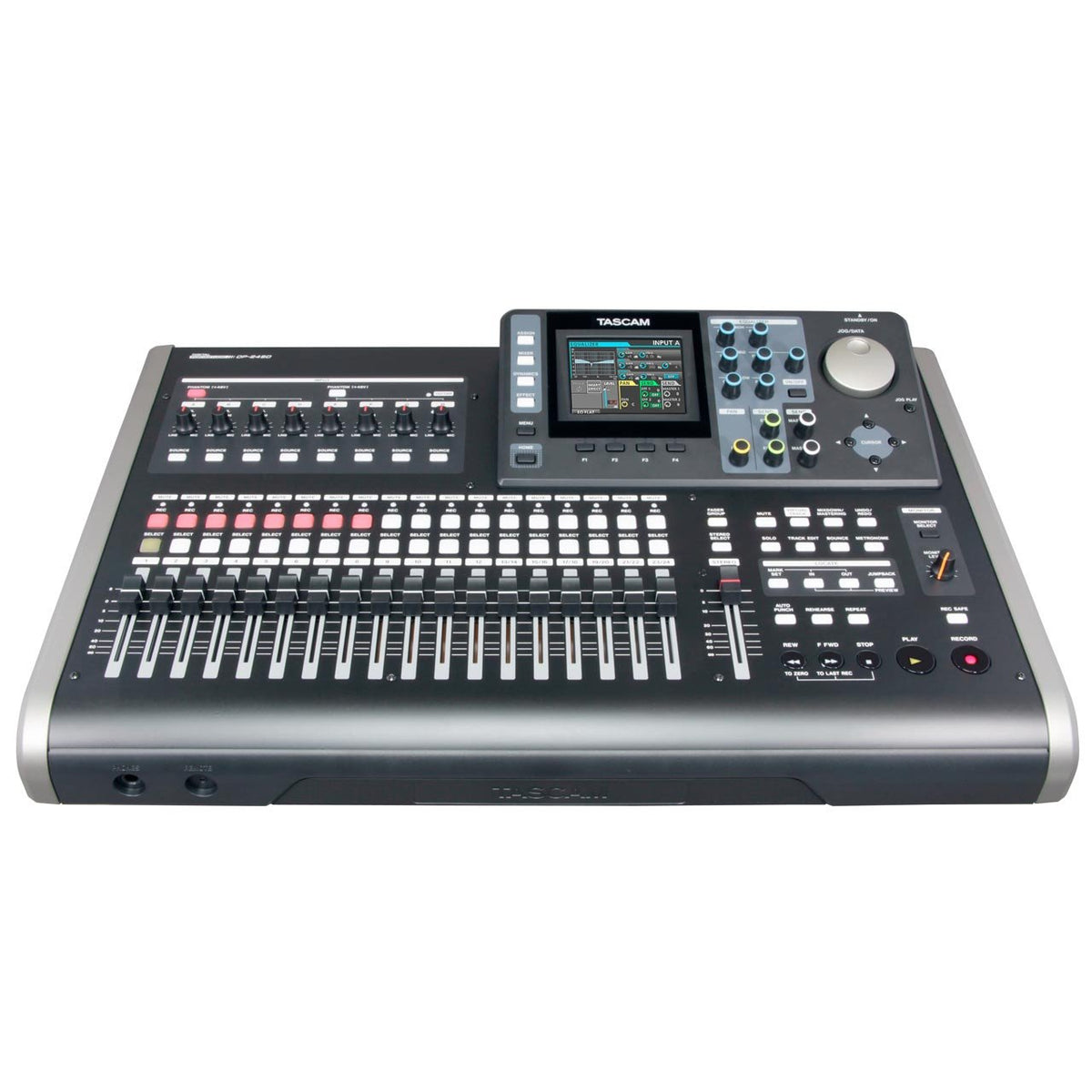

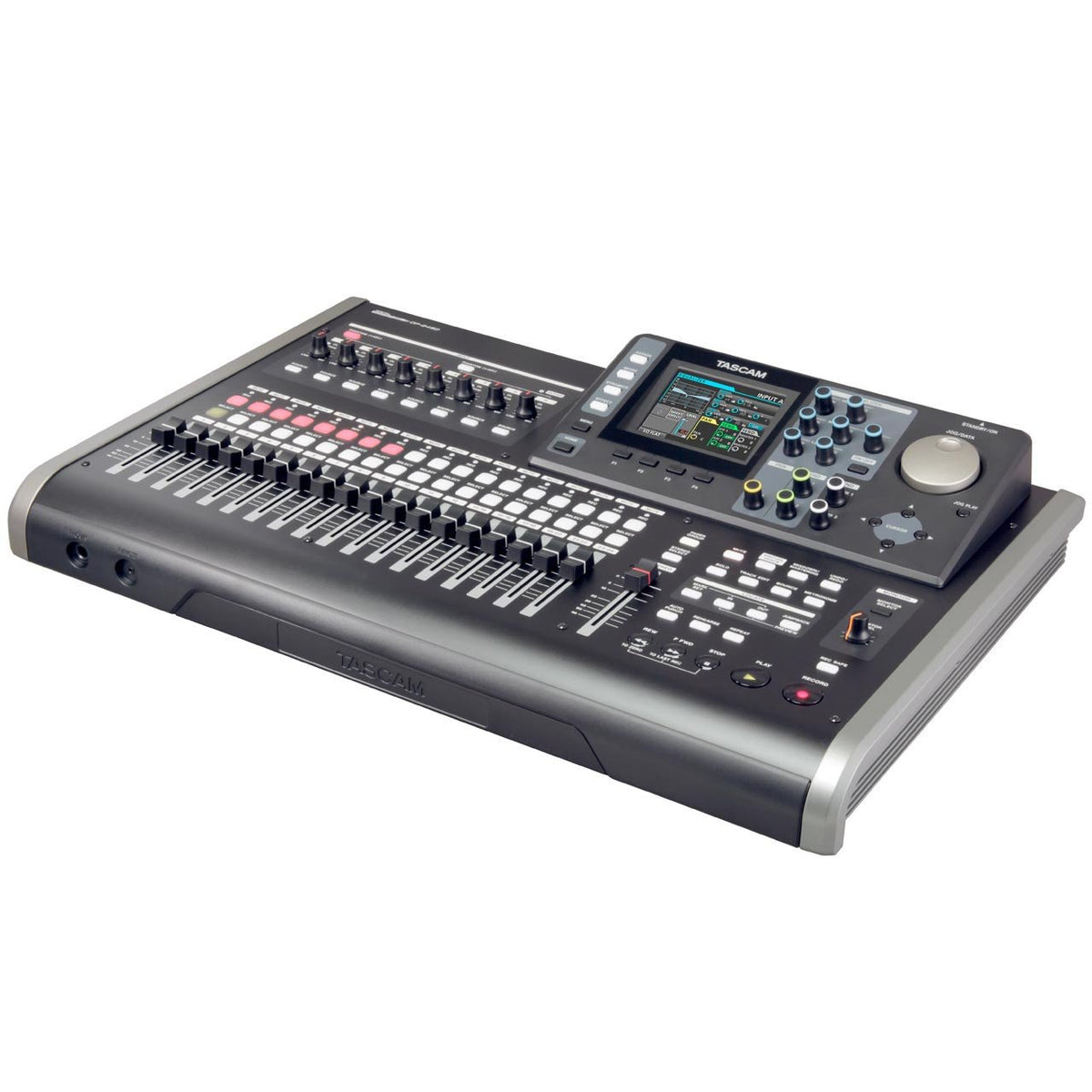

TASCAM DP-24SD 24-Track Digital Portastudio
The TASCAM DP-24SD 24-Track Digital Portastudio is a 24-track digital recorder with an in-built mixer and eight tracks of simultaneous recording via the XLR / TRS combination connectors. The DP-24SD is equipped with faders and encoders, allowing you take control of the included FX and dynamics processors. These reverbs, EQ’s, compressors and guitar-amp simulators, give you everything you need to record, mix and master your tracks to a professional standard. The TASCAM DP-24SD 24-Track Digital Portastudio has excellent metering and track display too due to its large color LCD display.
Type: Multitrack Recorders
-
-
TASCAM DP-24SD Features:
Simultaneous 24-track playback
12 mono tracks + 6 stereo tracks
Simultaneous 8-track recording
16 or 24 bit, 44.1 or 48 kHz recording
8 XLR/TRS combo connectors
Phantom power supplied on all inputs (INPUT A-D,E-H)
High-impedance input available (INPUT H)
Stereo RCA output
2 effect send outputs (1/4" TS jack)
70mW/ch headphone amplifier
Remote connector for optional RC-3F footswitch
INPUT A-H and each track equipped with 3-band EQ
Automatic punch in/out
Various edit functions (COPY INSERT, COPY PASTE, MOVE INSERT, MOVE PASTE, OPEN, CUT, SILENCE, CLONE TRACK, CLEAN OUT)
Undo and Redo function with Undo history
Dynamics effects for input (Limiter, Compressor, Noise Suppressor, Exciter)
Guitar effects (Amp Simulator, Reverb, Compressor, Chorus, Flanger, Phaser)
Mix-down effects (Reverb, Delay, Stereo Chorus)
Mastering Effects (Multi-band Compressor, Equalizer, Dither, Normalize)
Track bounce function
Virtual track (8 virtual track per one track: including use track)
Locate mark up to 99 for one song
File transferring via USB2.0
Chromatic tuner
Metronome
19 Faders
Peak-hold function on the level meter of the LCD
Sub-frame editing
Dedicated AC adapter included (TASCAM GPE248-120200-Z)
SD card included
RoHS certified -
TASCAM DP-24SD Specifications:
Recording Media: SD (512MB – 2GB) / SDHC card (4GB – 32GB)
File System: SD card:FAT16 / SDHC card:FAT32
Power: Dedicated AC adapter (TASCAM GPE248-120200-Z, included)
Power consumption: 12W (when phantom power supplying)
Dimensions: 514(W)×100.4(H)×336.9(D)mm / 20.2"(W)×4.1"(H)×13.4""(D)
Weight: 6.2kg / 13.67 lb
Accessories: AC adapter, 4GB SD card, warranty card, owner's manual -
TASCAM DP-24SD System Requirements:
Windows:
OS: Windows XP, Windows Vista, Windows 7, Windows 8
CPU: Pentium 300MHz or more
Memory: 128MB or more
USB: USB2.0
Macintosh:
OS: Mac OS X Snow Leopard(V10.6), OS X Lion(V10.7), OS X Mountain Lion(V10.8), OS X Mavericks(V10.9)
CPU: Power PC, iMAC, G3, G4 266MHz or more
Memory: 64MB or more
USB: USB2.0
** Please note, system requirements may change. For the most recent system requirements please visit the manufacturer's official product listing **
