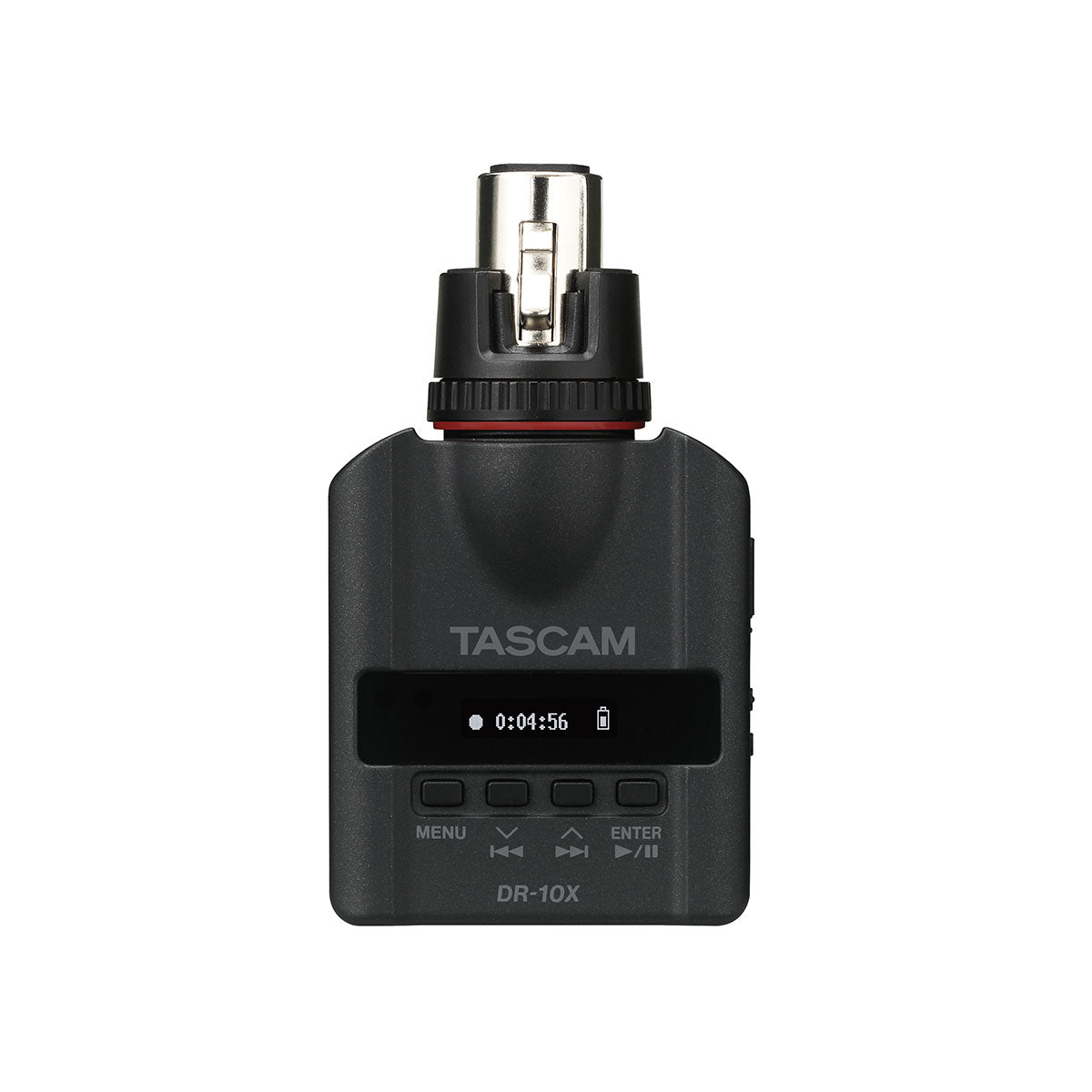

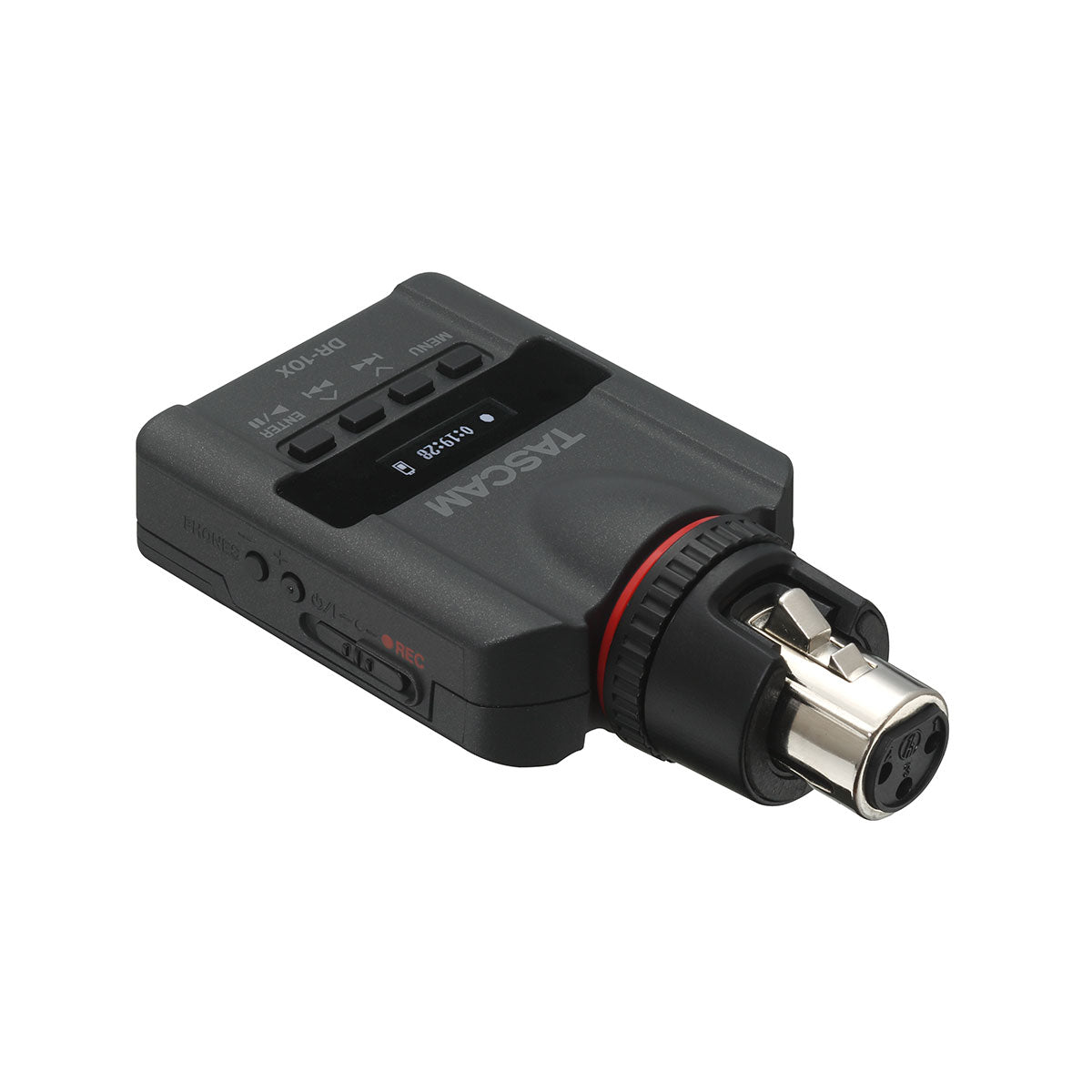

    TASCAM DR-10X Portable Recorder for XLR Microphones

    2 In Stock

    TASCAM’s compact DR-10X attaches to a handheld microphone for the ultimate compact news gathering recording system. A captive XLR connector attaches firmly to your microphone, capturing interviews at 48kHz/24-bit Broadcast WAV resolution. Offload recordings through the microUSB connection or by removing the microSD card.


        • Product Features:

          XLR plug-on connection

          Compatible with dynamic mics as well as bettery-powered condenser mics

          48kHz/24-bit linear PCM mono recording

          WAV files (compatible with BWF format)

          Media: microSD/SDHC cards (supports 32GB capacities)

          Sliding record switch and hold function to prevent misoperation during recording

          Dual recording function

          automatic file closing function to prevent the loss of already recorded data

          XLR connector also can use as external input for external input

          High/Mid/Low recording level settings

          Low-cut filter

          Limiter

          Automatic level function

          With a built-in clock function, supports BWF files that can have time information added, which is convenient for editing and searching

          Time track incrementing function can create new files at regular intervals (about every 15 minutes) during recording

          Playback function allows recorded data to be checked immediately

          Headphone output

          Locking mechanism assure a tight connection with the microphone body

          Easy-to-read organic EL display

          micro USB B port enables easy data exchange with computers

          Records at least 10 hours on a single AAA battery by using alkaline batteries (EVOLTA)

          Unit settings can be created and transferred as a computer text file

          Settings can be transferred between multiple DR-10X units using the infrared transmission function

          Firmware can be updated using a microSD card

          RoHS-compliant product

        • Technical Specifications:

      • Recording media microSD card (64MB to 2GB),
        microSDHC card (4GB to 32GB)
        Media discharging Push-Push type (Guard cover mounted)
        Recording format
        V1.00
        WAV 44.1k / 48k Hz, 16 / 24-bit mono/poly WAV (BWF format)
        V2.00
        WAV 44.1k / 48k Hz, 16 / 24-bit mono/poly (BWF format)
        MP3 44.1k / 48k Hz, 24-bit mono/poly
        Recording 128k / 192k bps
        Playback 32k to 320k bps
        Analog audio Inputs
        Connector XLR-3-31 × 1
        Input Impedance 10kΩ or more
        MIC input gain LOW / MID / HIGH
        PHONES
        Connector 1/8" (3.5mm) Stereo Mini jack (DUAL MONO) × 1
        USB
        Connector USB Micro-B type 4pin × 1
        Maximum Output USB2.0 HIGH SPEED mass storage class
        Power 1 AAA batteries (Alkaline or NiMH),
        USB bus power
        Power consumption
        Battery operation time
        Alkaline batteries (EVOLTA) Aprrox. 10 hours
        Battery (RTC) Lithium × 1(built in with soldering)
        Dimensions 2.1" × 3.7" × 1.1" / 52 × 94.4 × 28 mm
        Weight 2.4 oz. / 68.3 g (including batteries), 1.99 oz. / 56.3 g (excluding batteries)
        Accessories USB cable, Owner's Manual (including warranty)



        DR-10X Tested media List

        Last update:September 30, 2015
        Maker Series Model Capacity Result
        SanDisk SanDisk®
        microSDHC™ Memory Card (Class4)
        SDSDQ-008G-J35U 8GB OK
        SDSDQ-004G-J35U 4GB OK
        TOSHIBA EXCERIA™
        UHS-I microSDHC™ Memory Card
        (U3, Class10)
        MUH-B016G 16GB OK



        Maker Series Model Capacity Result
        SanDisk SanDisk Ultra® PLUS microSDHC™
        UHS-I Memory Cards (Class10)
        SDSDQUP-016G-J35A 16GB OK
        SDSDQUP-008G-J35A 8GB OK
        SanDisk Ultra® microSDHC™
        UHS-I Memory Cards (Class10)
        SDSDQUL-016G-J35A 16GB OK
        SDSDQUL-008G-J35A 8GB OK
        Lexar Lexar® High-Performance microSDHC™ UHS-I Card (633x) (Class10) LSDMI16GBBJP633R 16GB OK
        Lexar® High-Performance microSDHC™ UHS-I Card (300x) (Class10) LSDMI16GBBJP300A 16GB OK
        Panasonic Premium microSDHC™
        UHS-I Card (Class10) R:45MB/s
        RP-SMGA32GJK 32GB OK
        RP-SMGA16GJK 16GB OK



        Supported Media

        microSD card
        Maker Series Model Capacity
        Lexar Lexar® High-Performance microSDHC™ UHS-I Memory Card (300x) (Class10) LSDMI16GBBJP300A 16GB
        Lexar Lexar® High-Performance microSDHC™ UHS-I Memory Card (633x) (Class10) LSDMI16GBBJP633R 16GB
        Panasonic Premium microSDHC™ UHS-I Memory Card (Class6) R:45MB/s RP-SMGA16GJK 16GB
        Panasonic Premium microSDHC™ UHS-I Memory Card (Class6) R:45MB/s RP-SMGA32GJK 32GB
        SanDisk SanDisk Standard microSD™/microSDHC™ Memory Card SDSDQ-004G-J35U 4GB
        SanDisk SanDisk Standard microSD™/microSDHC™ Memory Card SDSDQ-008G-J35U 8GB
        SanDisk SanDisk Ultra® microSDHC™ UHS-I Memory Card (Class10) SDSDQUL-008G-J35A 8GB
        SanDisk SanDisk Ultra® microSDHC™ UHS-I Memory Card (Class10) SDSDQUL-016G-J35A 16GB
        SanDisk SanDisk Ultra® PLUS microSDHC™ UHS-I Memory Card (Class10) SDSDQUP-008G-J35A 8GB
        SanDisk SanDisk Ultra® PLUS microSDHC™ UHS-I Memory Card (Class10) SDSDQUP-016G-J35A 16GB
        SONY microSDXC/microSDHC UHS-I Memory Card SR-UY3A Series SR-16UY3A New 16GB
        SONY microSDXC/microSDHC UHS-I Memory Card SR-UY3A Series SR-32UY3A New 32GB
        TOSHIBA EXCERIA™ UHS-I microSDHC™ Memory Card (U3, Class10) MUH-B016G 16GB
        Transcend microSDXC/SDHC300S TS16GUSD300S New 16GB
