Tascam

US-16X08

TASCAM US-16x08 16-input Audio Interface for Mac, Windows and iPad

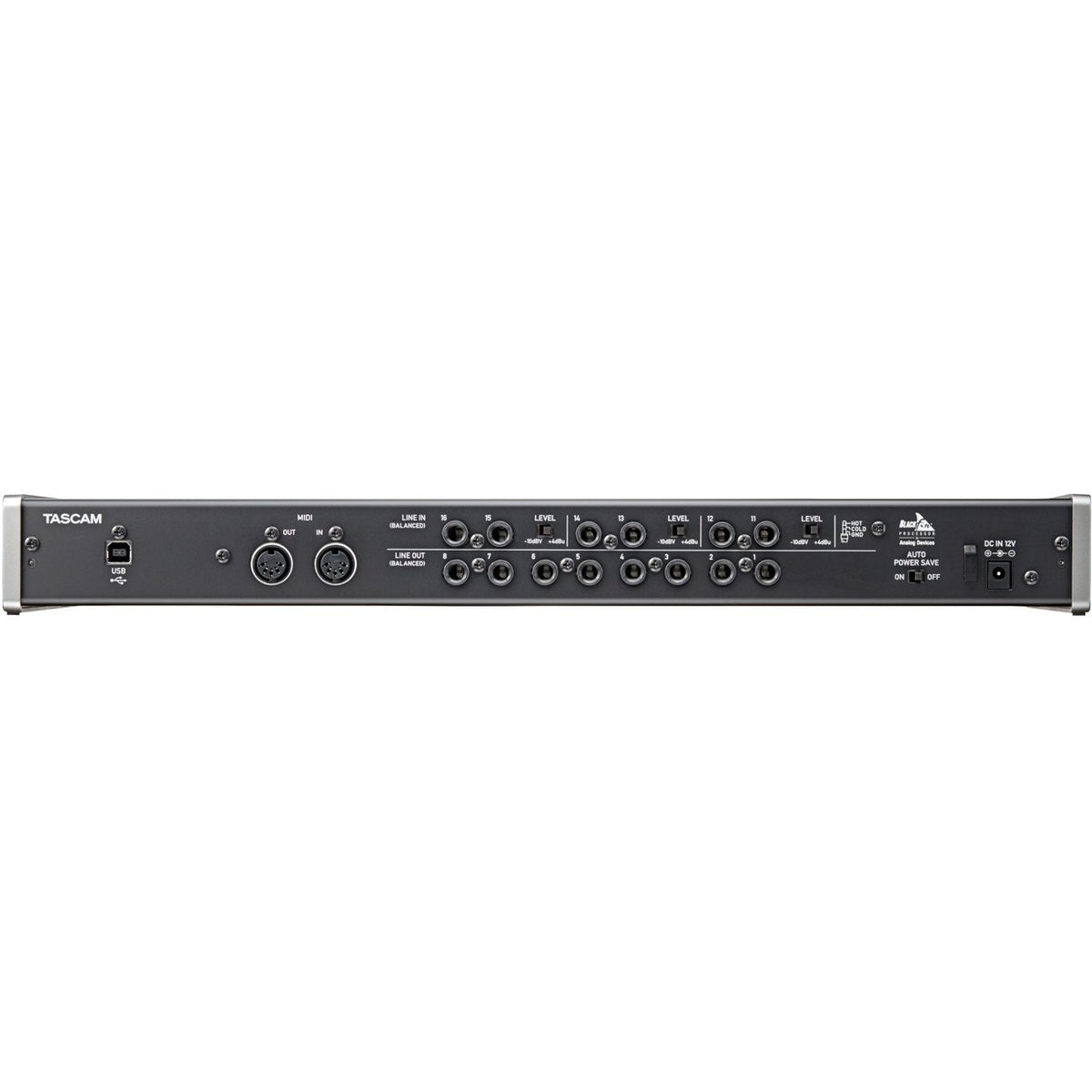

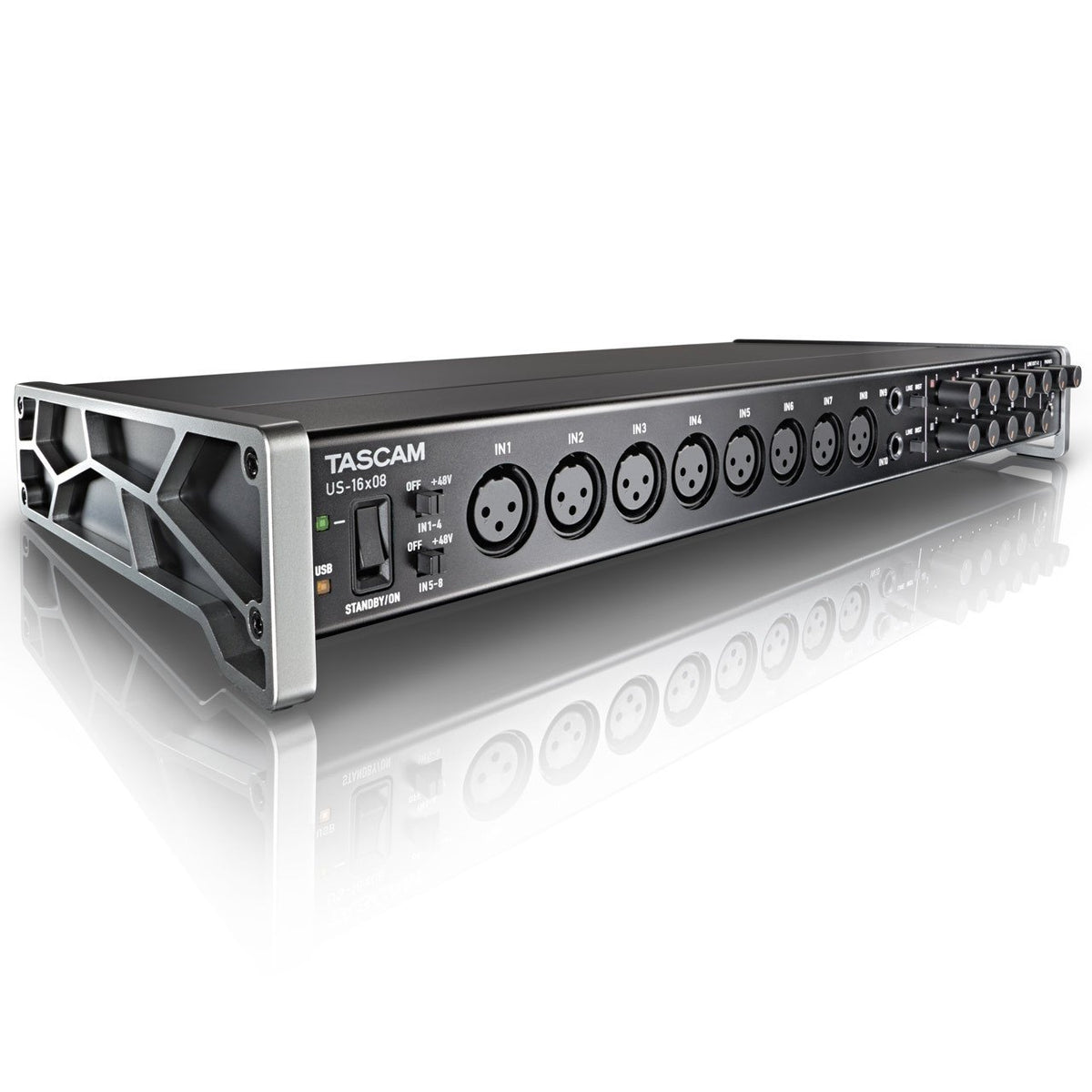

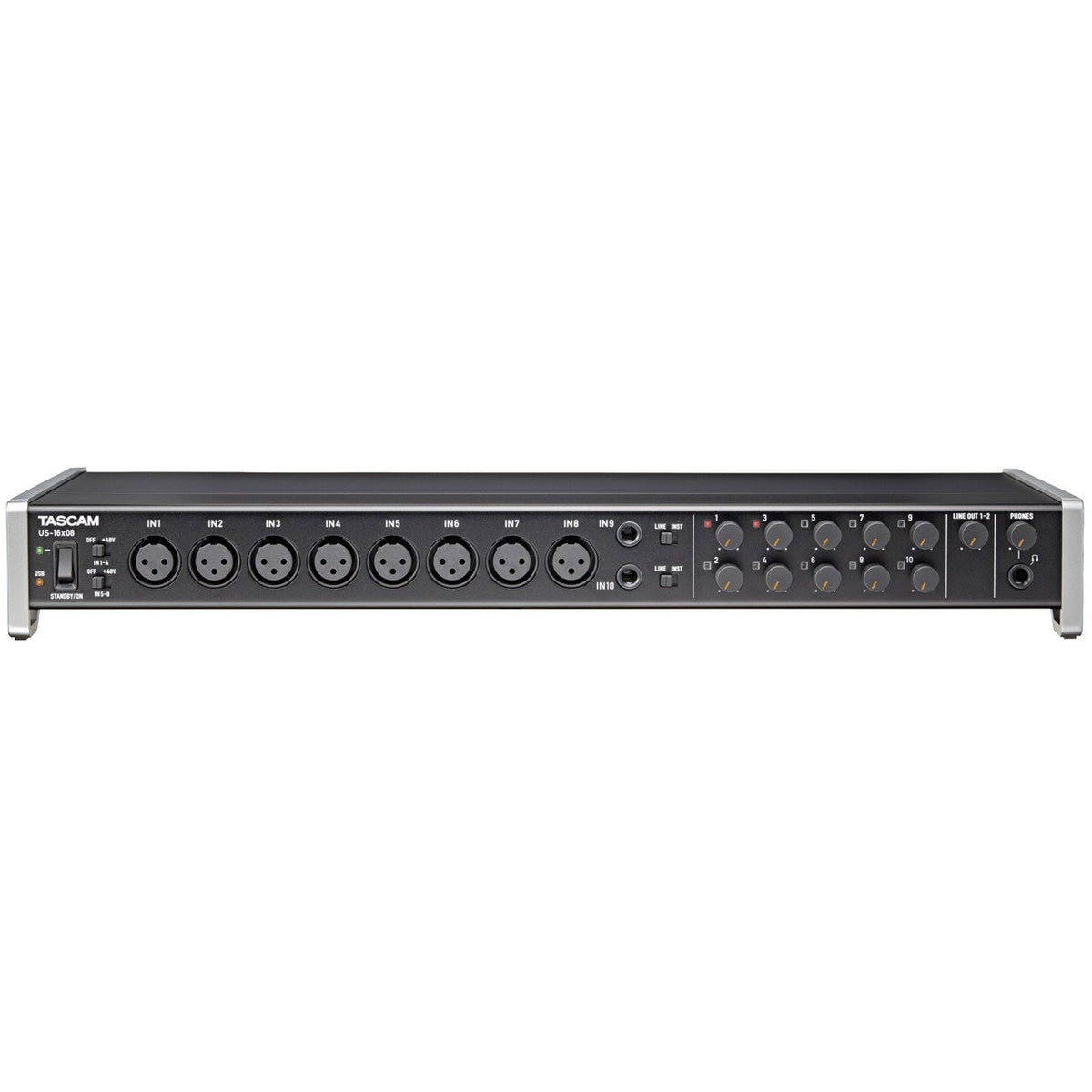

The TASCAM US-16x08 is a 16 analog input, 8 analog output USB 2.0 audio interface for Mac, Windows and iPad. The TASCAM US-16x08 has 8 x XLR mic inputs on the front panel, along with 2 x instrument/line inputs that are switch selectable. There are a further 8 x line inputs on the back, that all have a very handy -10dBV or +4dBu individual setting selector switches, to combine unbalanced and balanced equipment. The US-16x08 includes a low latency DSP mixer offering 4-band EQ per channel and compression. The TASCAM US-16x08 can also double as a 8-channel microphone preamp in stand alone mode too!


    • TASCAM US-16x08 Features:

      Ultra-HDDA (High Definition Discrete Architecture) mic preamps with −125dBu EIN
      Eight Ultra-HDDA mic pres with XLR connectors, eight TRS inputs
      Standalone mode for use as an independent mic preamp
      Up to 96kHz/24-bit recording
      Support for Windows and Macintosh
      USB 2.0 computer connection
      Connect with iPads and other iOS devices via Class Compliant drivers
      +48V phantom power available for all microphone inputs
      High-impedance inputs available
      56 dB of preamp gain, ideal for dynamic or ribbon microphones
      Tough metal casing for durability
      Angled design provides excellent usability on a desktop
      Eight TRS outputs
      Standard TRS headphones output jack with 70mW/ch output power
      Separate controls for line and headphones output volumes
      MIDI input and output
      Low-latency monitoring via on-board DSP mixer
      DSP mixer with 4-band EQ and compression on each input channel
      Digital Patch bay allows outputs to be assigned freely
      Scenes can store DSP mixer settings (up to 10 scenes can be stored and named)
      USB class compliant 2.0 support
      Confirmed operation with major DAW software (SONAR, ProTools, Cubase, Live, Studio One, Garage Band)
      RoHS certified
      Dedicated AC adapter included
    • TASCAM US-16x08 Specifications:

      Sampling frequency: 44.1k/48k/88.2k/96kHz
      Quantization bit rate: 16/24bit
      Power: Dedicated AC adapter (GPE248-120200-Z, included)
      Power consumption: 12W
      Dimensions: 445mm W ×59mm H ×219mm D
      Weight: 2.8kg
      Operating temperature: 5 to 35˚C
      Accessories: Rack mount adapter, USB cable, User's manual, warranty card, dedicated AC adapter (GPE248-120200-Z)
      Analog Inputs: 1-8 Mic/XLR, 9-10 Instrument/Line, 11-16 Line inputs: -10dBV or +4dBu setting option.
      Analog Outputs: 1-8 TRS Balanced Line outs, Headphone output 6.3mm.
      MIDI I/O: 1X1 MIDI Interface. 16 channels I/O over 5 pin Din connectors.
      USB Connector: USB B type 4-pin, Format: USB2.0 HIGH SPEED mass storage class
    • TASCAM US-16x08 System Requirements:

      Windows:
      OS: Windows 7(32-bit SP1, 64-bit SP1), Windows 8.0(32-bit, 64-bit), Windows 8.1(32-bit, 64-bit)
      Compatible computers: Windows-compatible computer with a USB 2.0 port
      CPU type/speed: Dual core/2 GHz or faster
      Memory: 2GB or more
      DRIVER: ASIO2.0, WDM(MME)
      Macintosh:
      OS: OS X Mountain Lion(10.8), OS X Mavericks(10.9)
      Compatible computers: Apple Macintosh computer with a USB 2.0 port
      CPU type/speed     Dual core/2 GHz or faster
      Memory: 2GB or more
      DRIVER: Core Audio, Core MIDI

      Please visit the Tascam website via the link below for up-to-date information on compatibility for Windows, Mac and iOS.

      ** Please note, system requirements may change. For the most recent system requirements please visit the manufacturer's official product listing **

Need more info on the TASCAM US-16x08?
