TC Helicon

TC-VL3-EXTREME

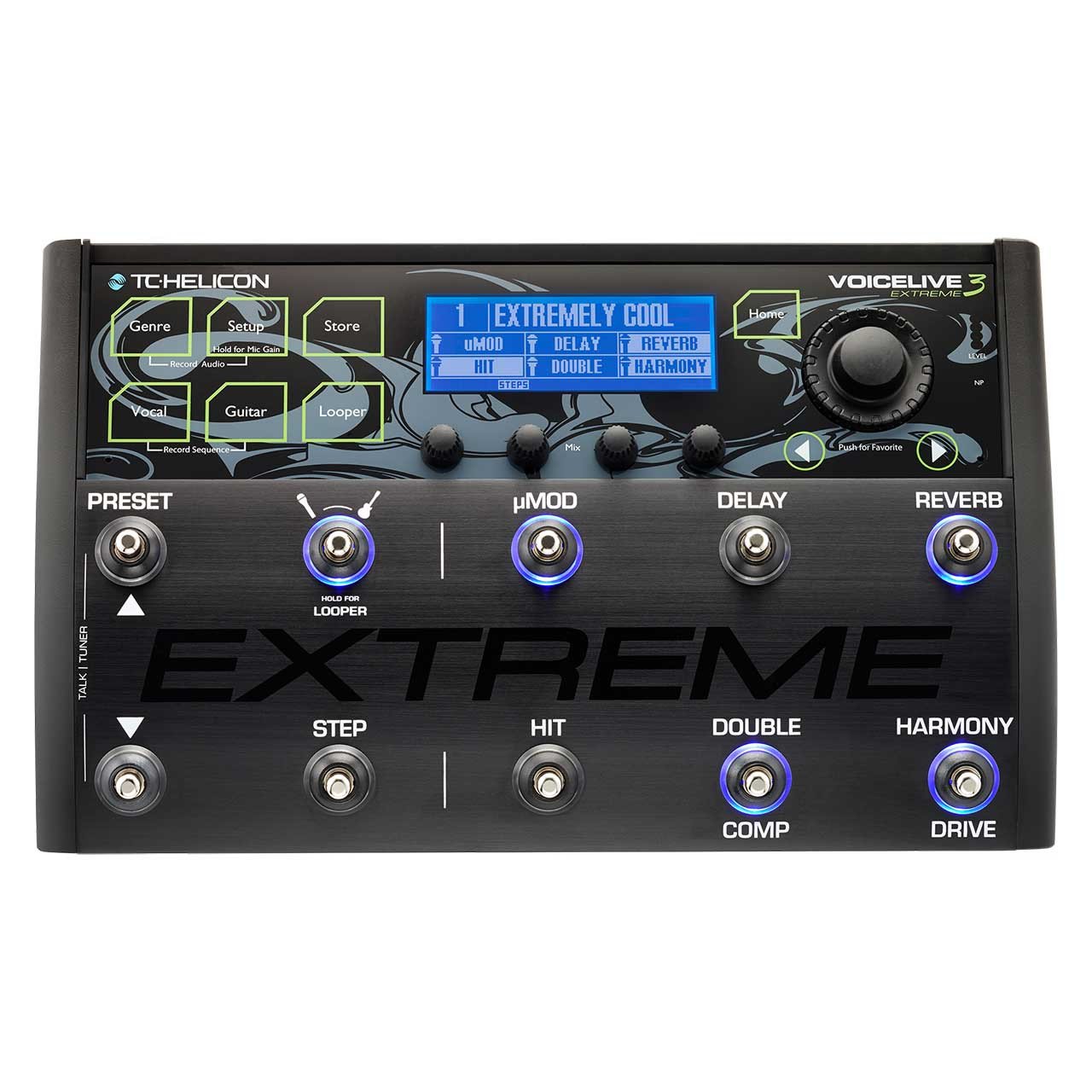

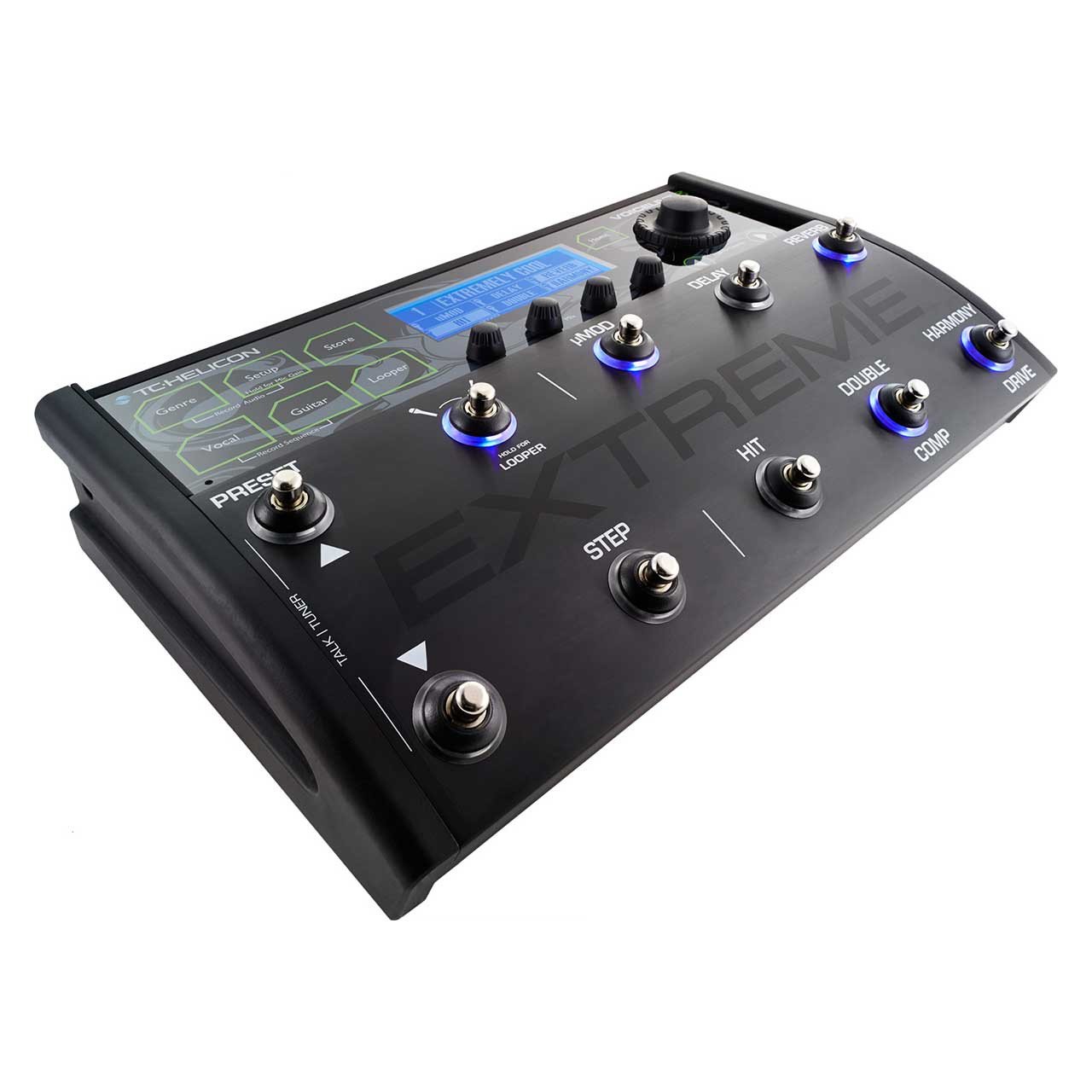

TC Helicon Voicelive 3 Extreme


5 IN STOCK

Take your stage performance to the next level with Voicelive 3 Extreme! VoiceLive 3 Extreme sets you free to focus solely on your performance with groundbreaking effects automation and backing track playback. Awesome vocal effects and rich guitar sounds run effortlessly by themselves. From the first song idea to the execution of complex live arrangements, everything you’ve worked for comes together in Voicelive 3 Extreme.


    • TC Helicon Voicelive 3 Extreme PRODUCT FEATURES:

      • Backing track import with effects automation for “tap-dance free” performances, synchronized to tracks
      • Performance recorder for live direct 24-bit audio, output to a USB flash drive
      • A complete vocal sound with next generation harmony processing, effects and tonal quality
      • Complete guitar sound via TC Electronic stomp box effects, Amp Tones and flexible outputs to your amp or PA
      • Powerful 3-phrase looping lets you create and store entire songs on-the-fly
    • TC Helicon Voicelive 3 Extreme TECHNICAL SPECIFICATIONS:

      SIZE

      • Height: 3 inches (76 mm)
      • Width: 13.8 inches (350 mm)
      • Depth: 8.5 inches (216 mm)

      WEIGHT

      • Weight: 5 lb. (2.3 kg)

      CONSTRUCTION

      • Anodized extruded aluminum and steel chassis
      • Rubberized edit/mix knobs
      • Recessed rubberized handle
      • 192 x 64 Blue STN LCD, White Back light display
      • Tri-colored Footswitch Light ring
      • Capacitive touch edit controls with LED indicators

      ANALOG INPUTS

      Voice

      • Connector: Combo Balanced XLR/Balanced TRS 1/4″ phone jack
      • Input Impedance Balanced: 3.08 kOhm
      • Mic Input Level @ 0 dBFS: -52 dBu to +7 dBu
      • Line Input Level @0dBFS: -40 dBu to +19 dBu
      • EIN @ Max Mic Gain Rg = 150 Ohm: -127 dBu
      • Mic SNR >100 dB at typical Mic Input gain
      • Phantom Power: +48V (on/off via setup menu)
      • A to D Conversion 24 Bit, 128 x oversampling bitstream, 110 dB SNR A-weighted

      Guitar

      • Connector: 1/4″ phone jack
      • Guitar Input Impedance: 1 MOhm
      • Guitar Input Level @ 0 dBFS: -2 dBU to 14 dBu
      • Guitar Input SNR >108 dB
      • A to D Conversion 24 Bit, 128 x oversampling bitstream, 110 dB SNR A-weighted

      Monitor

      • Connector: Balanced XLR
      • Input Impedance Balanced: 25 kOhm
      • Monitor Input Level @ 0 dBFS +16 dBu

      Aux

      • Aux: 1/8″ stereo mini jack
      • Aux Input Level @ 0 dBFS +2 dBu

      ANALOG OUTPUTS

      Voice

      • Connectors: balanced XLR
      • Output Impedance Balanced/Unbalanced: 300/150 Ohm
      • Output Range 0 dBFS Line Level: +14 dBu; Mic Level: – 2dBu
      • Dynamic Range >109 dB, 20 Hz to 20 kHz/li>
      • Frequency Response +0/-0.3 dB, 20 Hz to 20 kHz
      • D to A Conversion 24 Bit, 128 x oversampling bitstream, 115 dB SNR A-weighted

      Guitar

      • Connectors: 1/4″ TRS phone jack
      • Output Impedance Balanced/Unbalanced: 442/221 Ohm
      • Output Range 0 dBFS Line Level: +14 dBu; Mic Level: – 2dBu
      • Dynamic Range >105 dB, 20 Hz to 20 kHz note
      • D to A Conversion 24 Bit, 128 x oversampling bitstream, 106 dB SNR A-weighted

      Headphone

      • 1/8″ Mini stereo jack, 50 Ohm, +14 dBu max

      Guitar thru

      • Buffered Guitar Input
      • Connector: 1/4″ TRS phone jack
      • Output Impedance Bal/UnBal: 270/540 Ohms

      Monitor thru

      • Direct connection to Monitor input
      • Connector: Balanced XLR

      CONTROL

      • USB: USB A, Mini-B
      • MIDI: In/Out: 5 Pin DIN
      • Pedal: 1/4″ TRS phone jack
      • Mic Control using TC-Helicon MP-75 Microphone or Sennheiser e 835 fx mic

      POWER

      • External Power Supply Mains Voltage: 100 to 240 VAC, 50 to 60 Hz (auto-select)
      • Power Consumption: < 14 W

      SAFETY

      • EMC – Complies with: EN 55103-1:2009, EN 55103-2:2009, FCC CFR 47 Part 15B and ICES-003:2004 4th Ed
      • Safety – certified to: IEC 65, EN 60065, UL6500 and CSA IEC 65, EN 60065, UL6500 and CSA

      ENVIRONMENT

      • Operating Temperature: 32° F to 122° F (0° C to 50° C)
      • Storage Temperature: -22° F to 167° F (-30° C to 70° C)
      • Humidity: Max. 90 % non-condensing

      WHAT'S IN THE BOX?

      • Region specific power supply
      • USB cable
      • Quickstart guide
      • Guitar/Headphone combo cable
