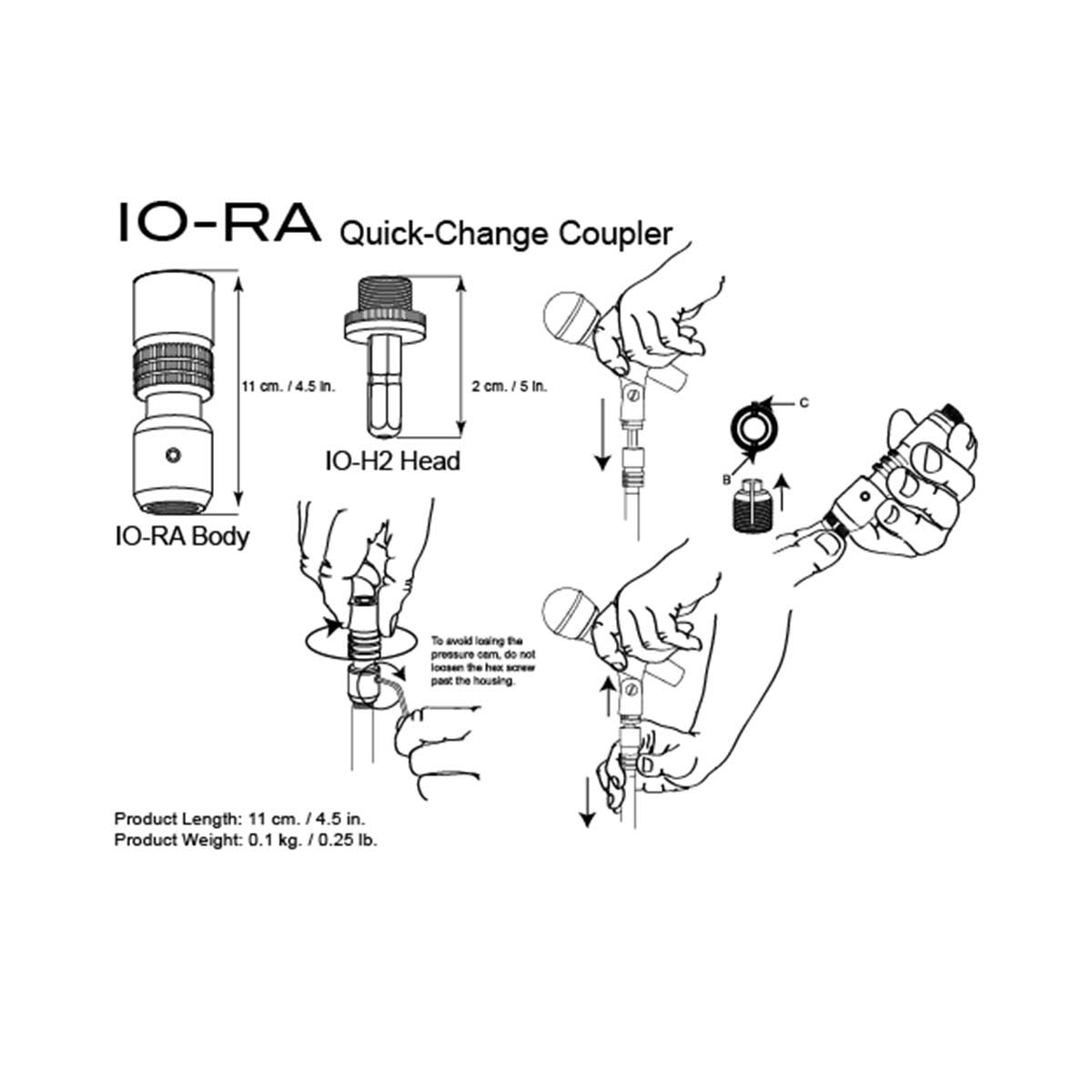

The exclusive “Cam Lock” secures IO-RA couplers to stands without damaging mounting threads. Thread the IO-RA coupler onto any stand equipped with 3/8-16 or 5/8-27 threads until tight. Then lock the IO-RA in place by tightening the 3mm hex screw with the included hex wrench. Every IO-RA is loaded with an IO-H3 hex mounting head. 3/8-16 adapter included.
Retrofitting conventional mic stands and boom arms with IO-RA Quick-Change Couplers provides an instant upgrade in functionality. Live sound and recording professionals will easily recoup their investment in MICRO and IO technology by realizing instant savings from reduced set-up and tear-down times.

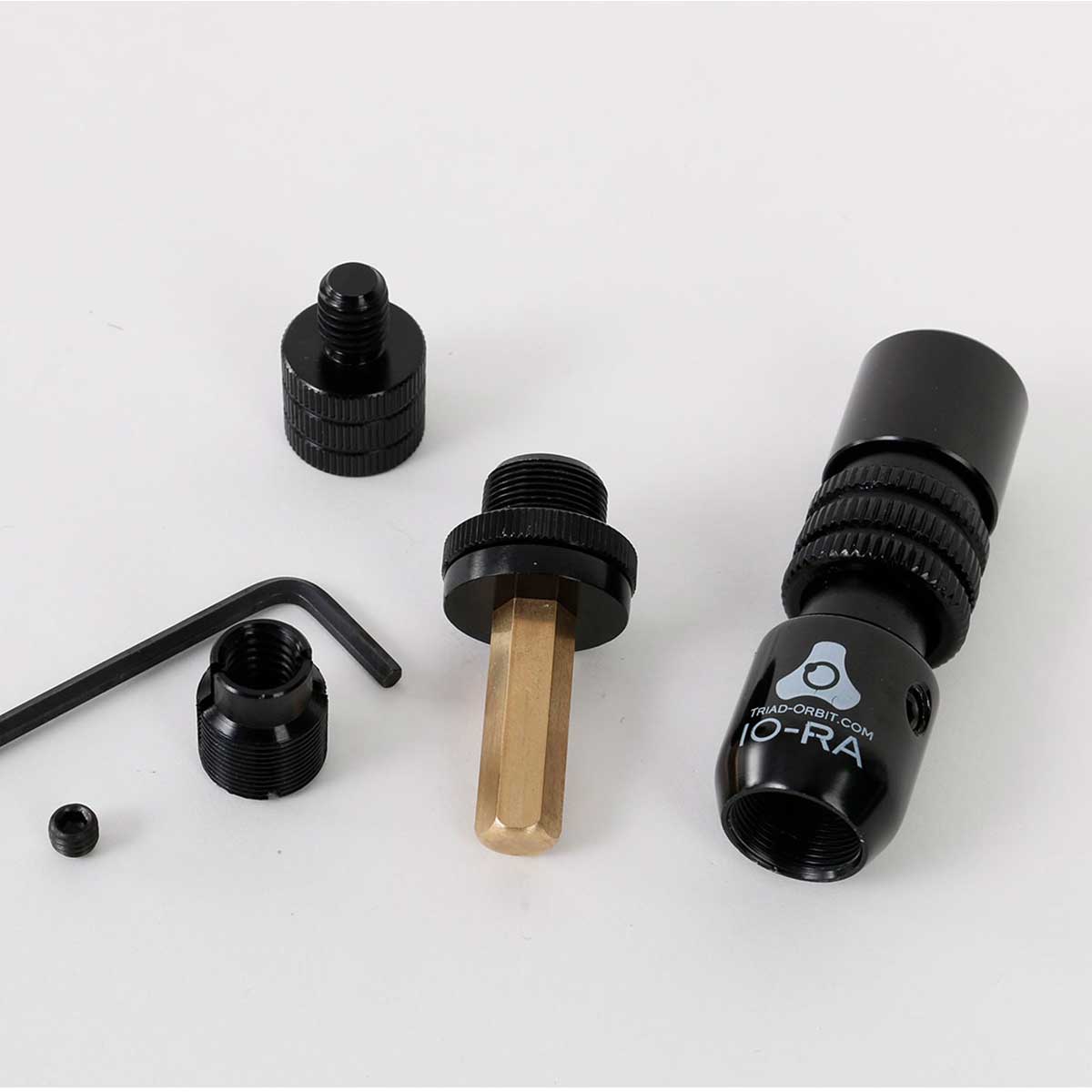

The IO-RA Quick-Change Coupler is comprised of two main parts:
The IO-H1 Hex Head with 5/8″-27 diameter thread for most mic clips and microphone accessories.

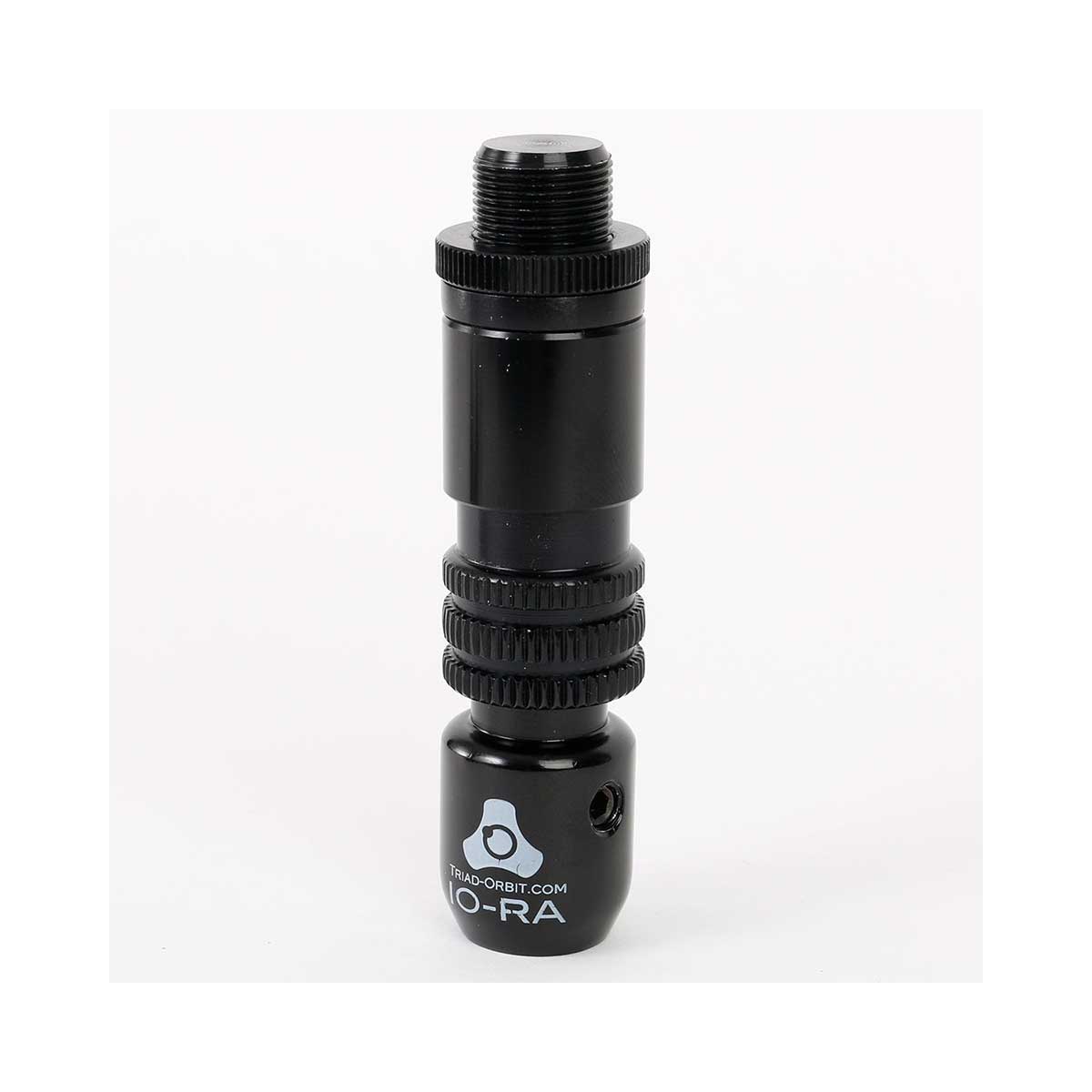

The IO-RA coupler body, which provides conventional mic stands and booms quick-change compatibility with all Triad-Orbit stand system components.

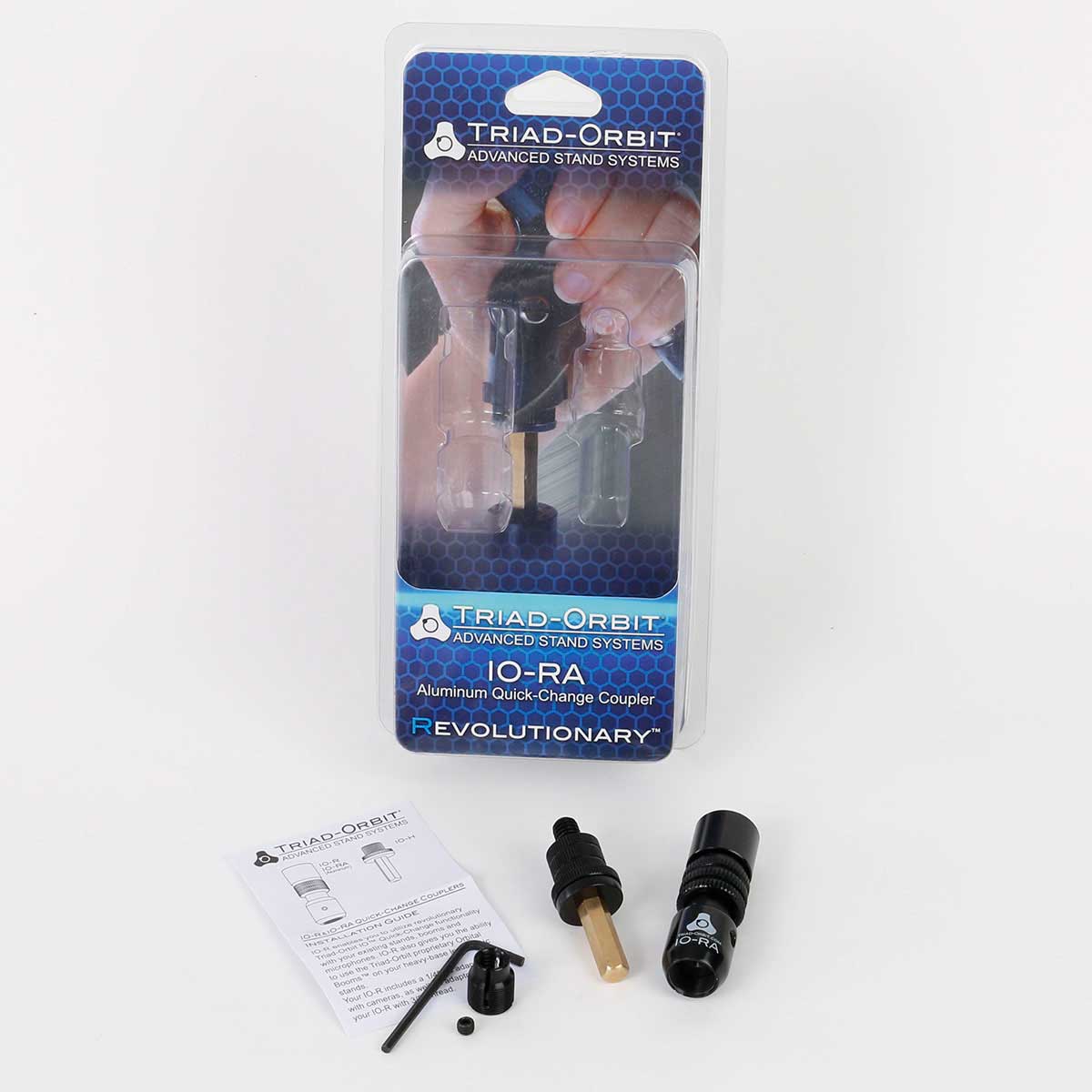

IO-RA also includes two 3/8″ adapters; one male and one female, as well as a tightening wrench.
Refer to the Triad-Orbit Systems Building Guide for more potential applications.
