    Tube Tech ME1B

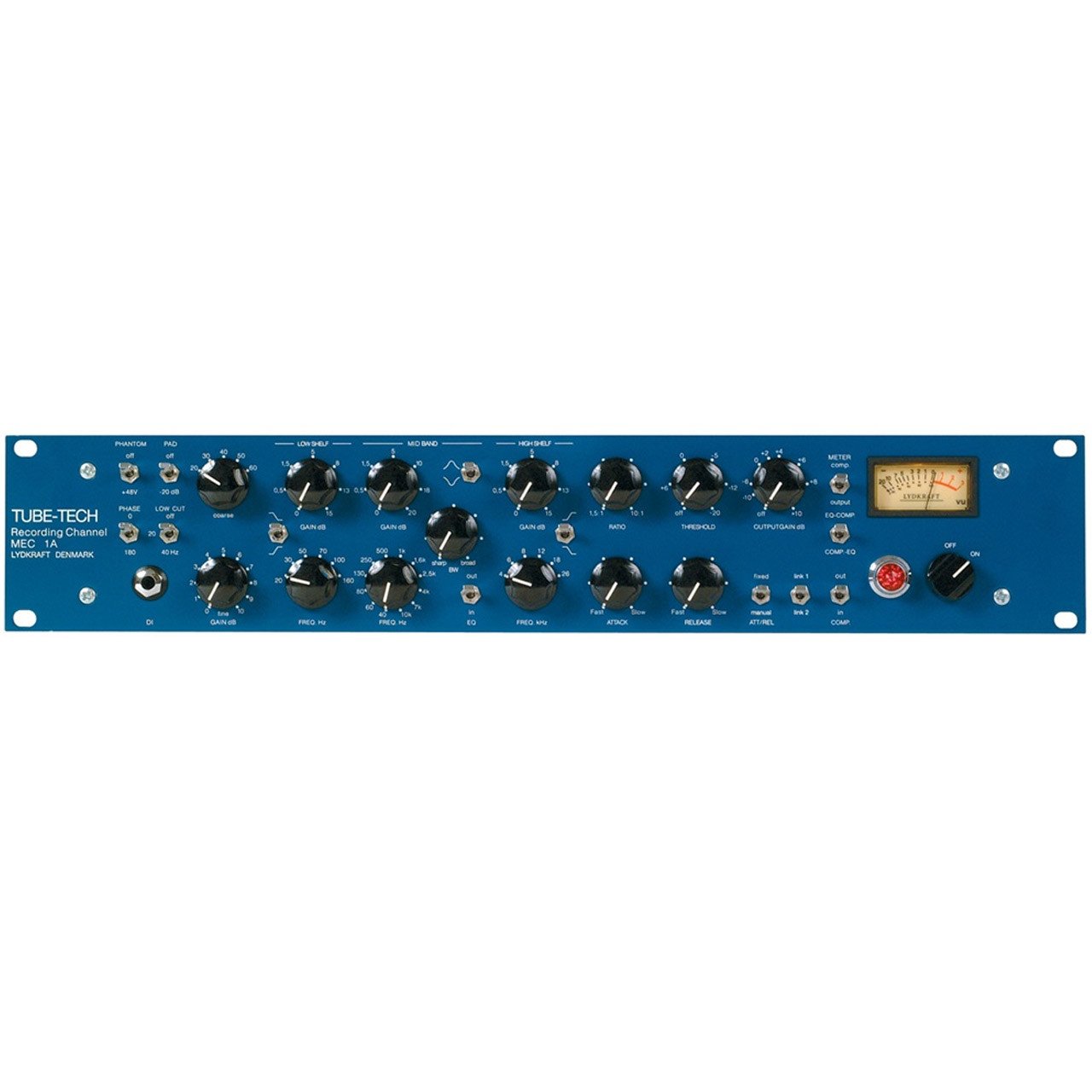

    The Tube-Tech MEC 1A is an all-tube channel strip featuring a class A microphone/instrument preamplifier, a 3 band parametric equaliser and an Opto style compressor in the one unit. The MEC 1A is a stunning sounding unit, that also features VU metering, and the compressor is linkable for stereo applications. The MEC 1A is essentially the MP 1A mic preamp, EQ 1A active EQ and the CL 2A compressor in the one 2-unit rack mountable channel strip.

      • Tube-Tech MEC 1A PRODUCT FEATURES:

        The TUBE-TECH MEC 1A Recording Channel is a one channel recording unit,
        featuring a microphone preamplifier equalizer and compressor. At the heart of the shelving and bell filters you will find a tube operational amplifier.

        The MEC 1A is all tube based except for the power supply. Input and Output have fully floating transformers. All DC voltages are stabilized, except the anode voltage for the output stage.

        Freq. response @-3 dB: 5 Hz - 60 kHz
        Low noise: < -85 dBU @ 10 dB gain
        CMRR: > 60 dB @ 10 kHz
        Output gain: Off to +10 dB
        Clickless swap relay (EQ <-> comp)
        Separate in/out switch per section
        Conductive plastic potentiometers
        Gold plated switches
        Fully regulated power supply with torodial transformer
        All-tube design (except PSU & sidechain circuit)
        In- and output are transformer balanced and fully floating
        Microphone preamplifier:
        Gain: +20 to +70 dB (DI:10-60 dB)
        Input impedance: > 1.2 kΩ
        +48V phantom power, phase reverse, -20 dB pad, low cut
        DI input impedance > 1 MΩ
        Active, tube based equalizer
        Three bands
        6 low shelving frequencies
        6 high shelving frequencies
        Bell-type Mid with 12 selectable frequencies & variable Q
        Opto Compressor:
        Low distortion optical gain reduction element
        Ratio: 1.5:1 to 10:1
        Variable attack and release
        VU meter shows output or compression
        Linkable for stereo applications
    Need more info on the MEC 1A? Click HERE for the official Tube-Tech product listing >>>
