  • TUB-PE1C

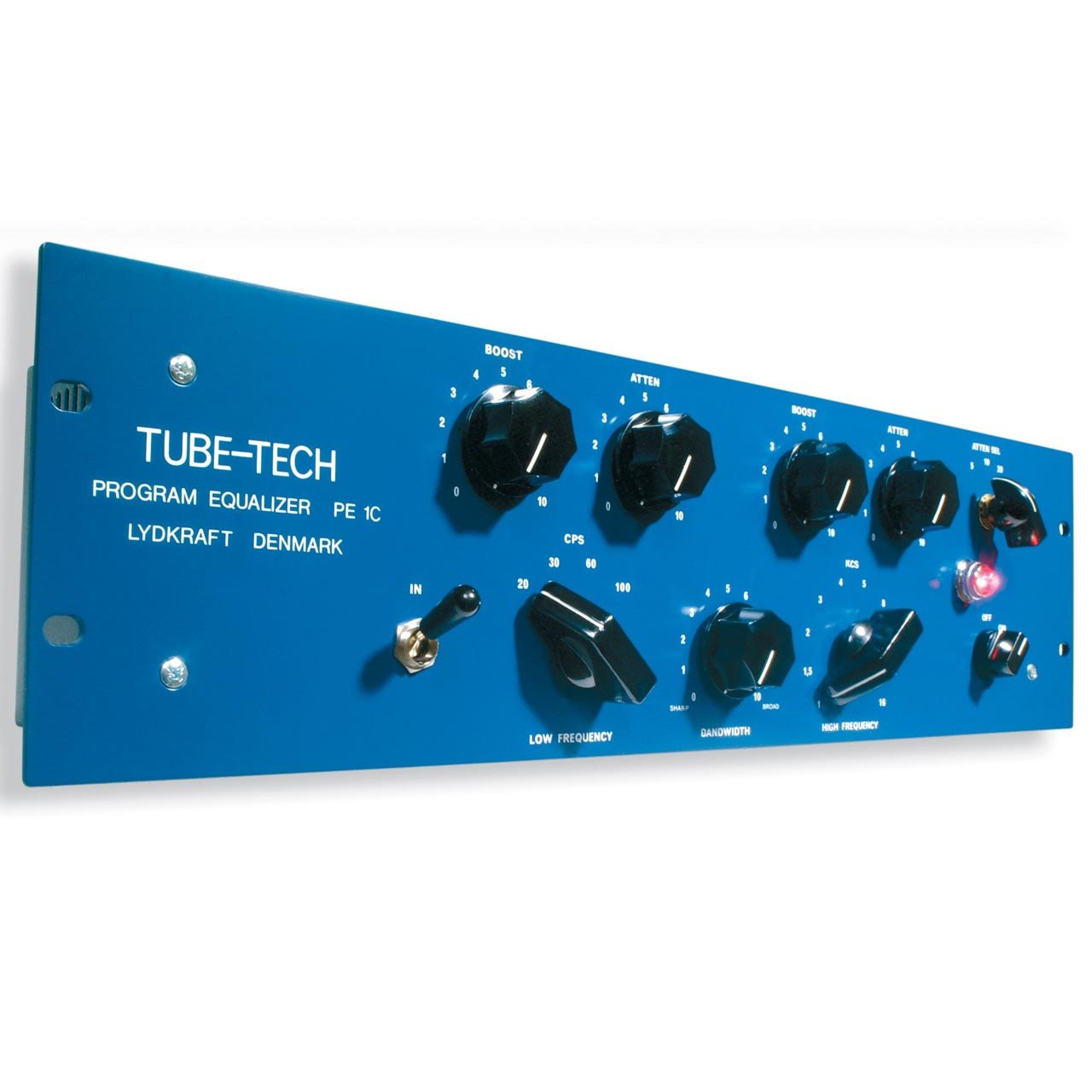

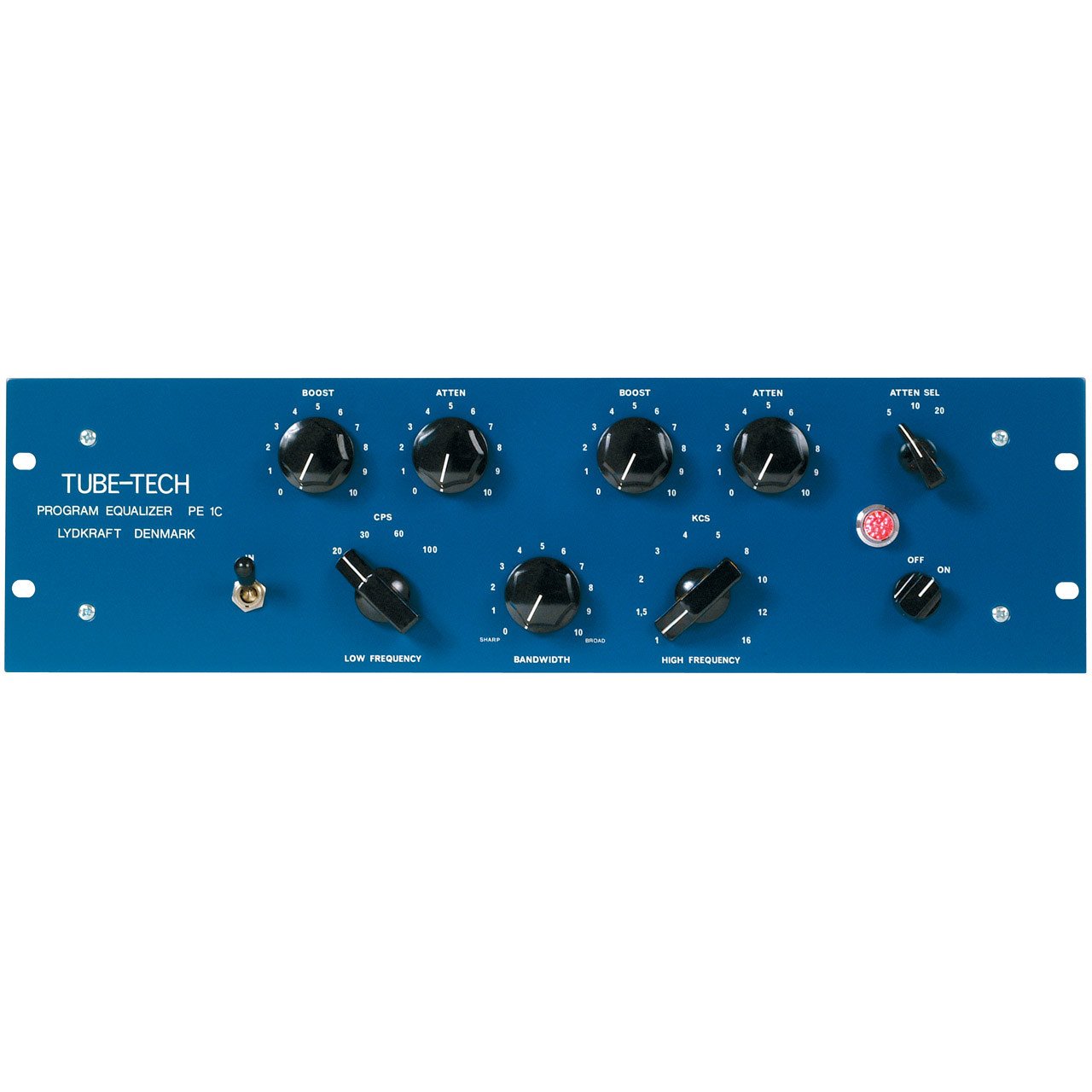

    Tube-Tech PE 1C Passive Pultec-style EQ with Tube-based Push-pull Amplifier

    The Tube-Tech PE 1C is a passive all tube EQ, derivative of the infamous Pultec EQP 1A. The PE 1C is arguably the most diligent hardware design to emulate the aforementioned classic. PE 1C offers two separate filters with variable cut/boost frequencies that can be combined to recreate the magic of the EQP 1A.


      • Tube-Tech PE 1C PRODUCT FEATURES:

        The TUBE-TECH PE1C is a passive tube based program equalizer based on the design
        of the old PULTEC EQP1A, featuring an all passive eq section and a high quality
        op amp. All components used are of the highest standard.

        The TUBE-TECH PE 1C Program Equalizer contains a low frequency boost and attenuation section (shelving), and a high frequency boost section (peaking). The high frequency section has variable bandwidth as well as attenuation (shelving). The filter section is of the passive type followed by a tube based push-pull amplifier to restore the gain.

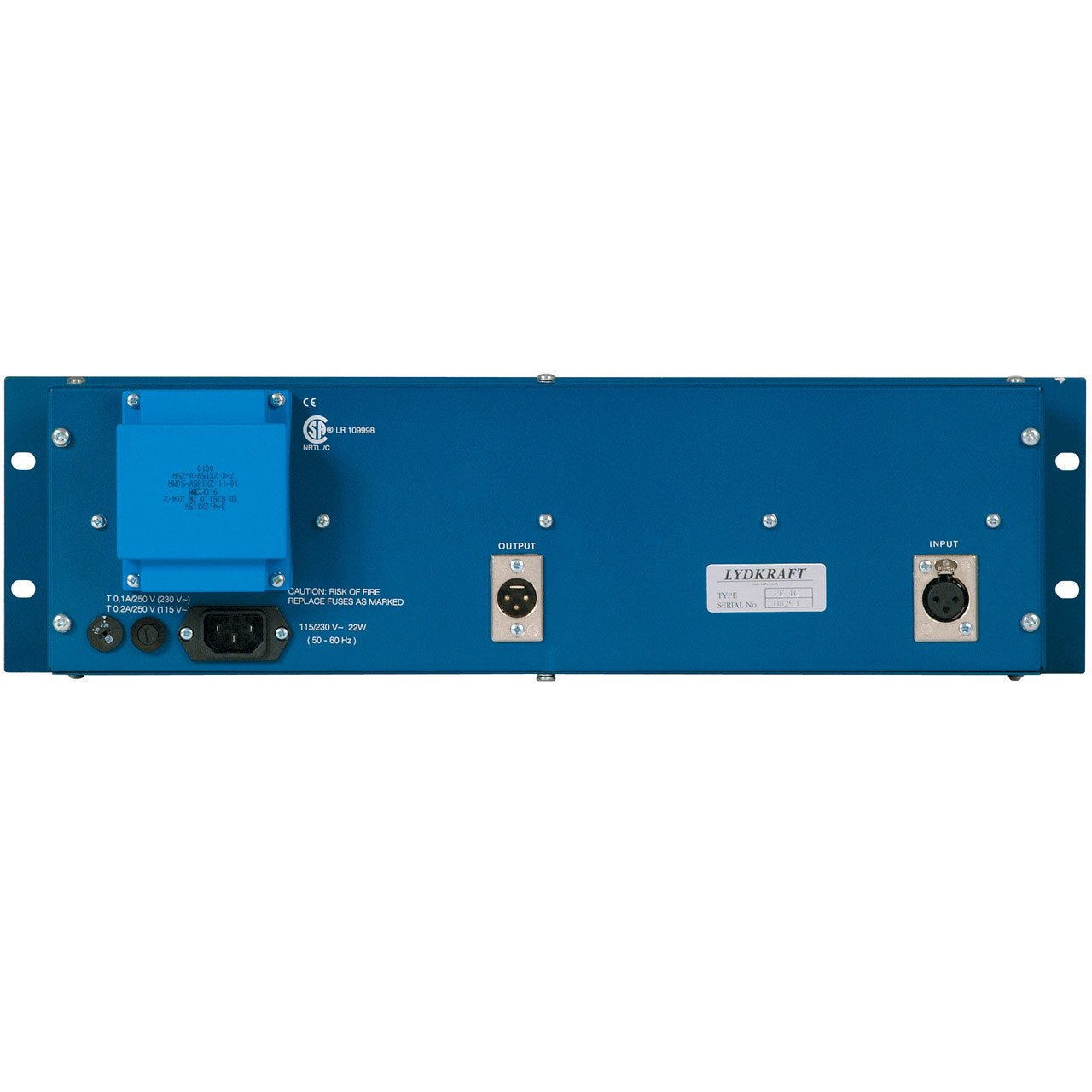

        Input and output are transformer balanced as well as fully floating. Input and output transformers come with a static screen between the primary and secondary wirings.
      • Tube-Tech PE 1C TECHNICAL SPECIFICATIONS:

        Tube based push-pull amplifier
        Freq. resp. @ -3 dB: 5 Hz - 40 kHz
        Low noise: < -85 dBU @ 0 dB gain
        CMRR: > 60 dB @ 10 kHz
        All-tube passive EQ
        4 LF frequencies: 20, 30, 60 and 100 Hz (Boost: 0 to +14 dB, attenuation: 0 to -18 dB)
        10 HF boosts with variable bandwidth: 1, 1.5, 2, 3, 4, 5, 8, 10, 12 and 16 kHz (0 to +18 dB w/ sharp Q, 0 to 10 dB w/ broad Q)
        3 HF attenuations: 5, 10 and 20 kHz (0 to -18 dB)
        Input impedance: 600Ω
        No insertion loss
        Clickless In/Out switch
        Conductive plastic potentiometers
        In- and output are transformer balanced and fully floating
    Need more info on the PE 1C? Click HERE for the official Tube-Tech product listing >>>
