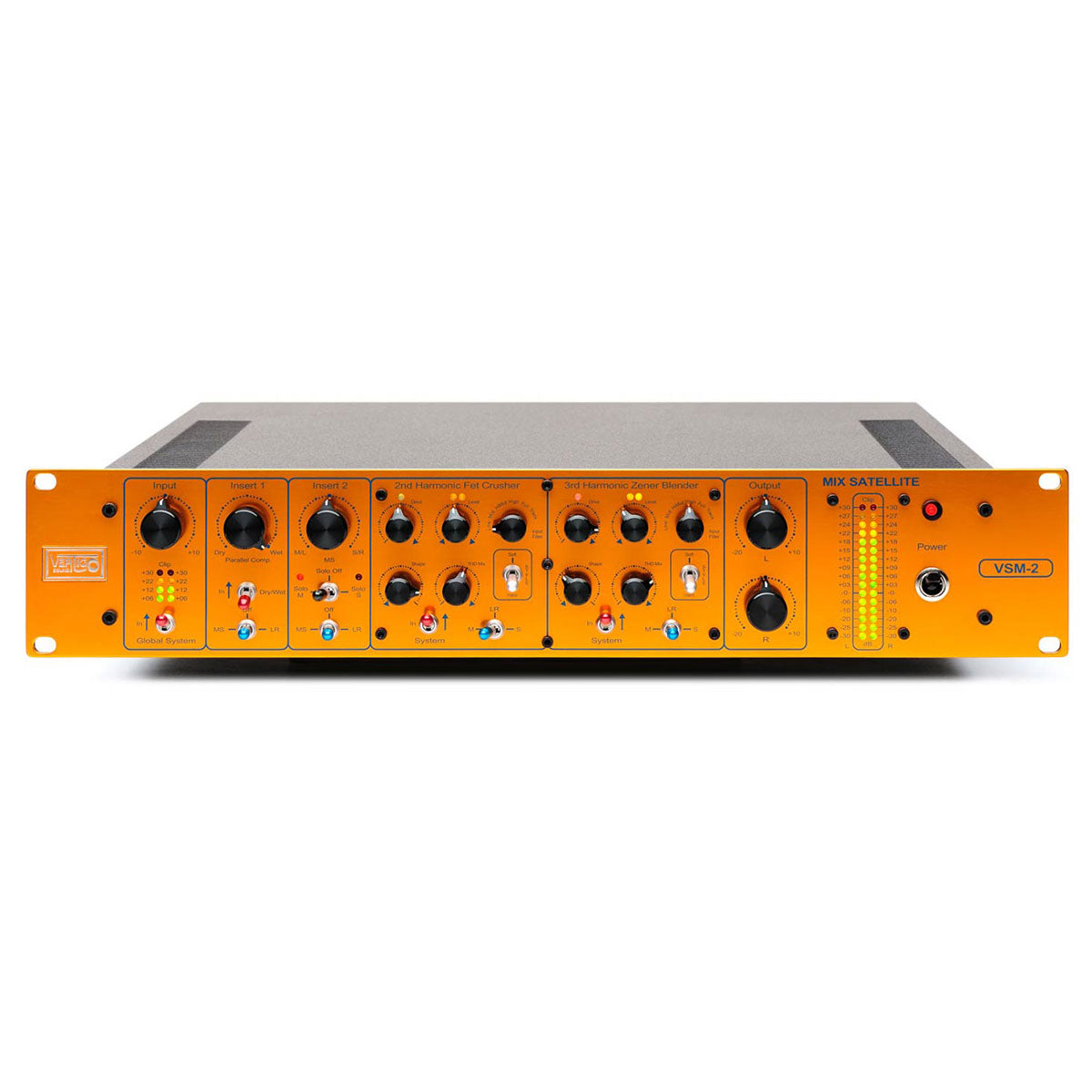

    Vertigo VMS-2 Mix Satellite

    Choose Version

    The VSM-2 is a creative fully analog Mix and Mastering tool. The VSM offers MS, Blending and two sophisticated coloration generators in 2U size. The VSM-2 is also available in a “basic version” without harmonic Generators.

    This represents a „All In One“-solution for Mastering studios with no more need to invest in mastering consoles, switching devices, monitor controllers, MS En & de-coders etc.

    Like all Vertigo Sound products, the VSM-2 is manufactured to the highest industry standards to guarantee the utmost performance and maximum durability.

    Special Order - typically 2 weeks from order



      • Product Features:

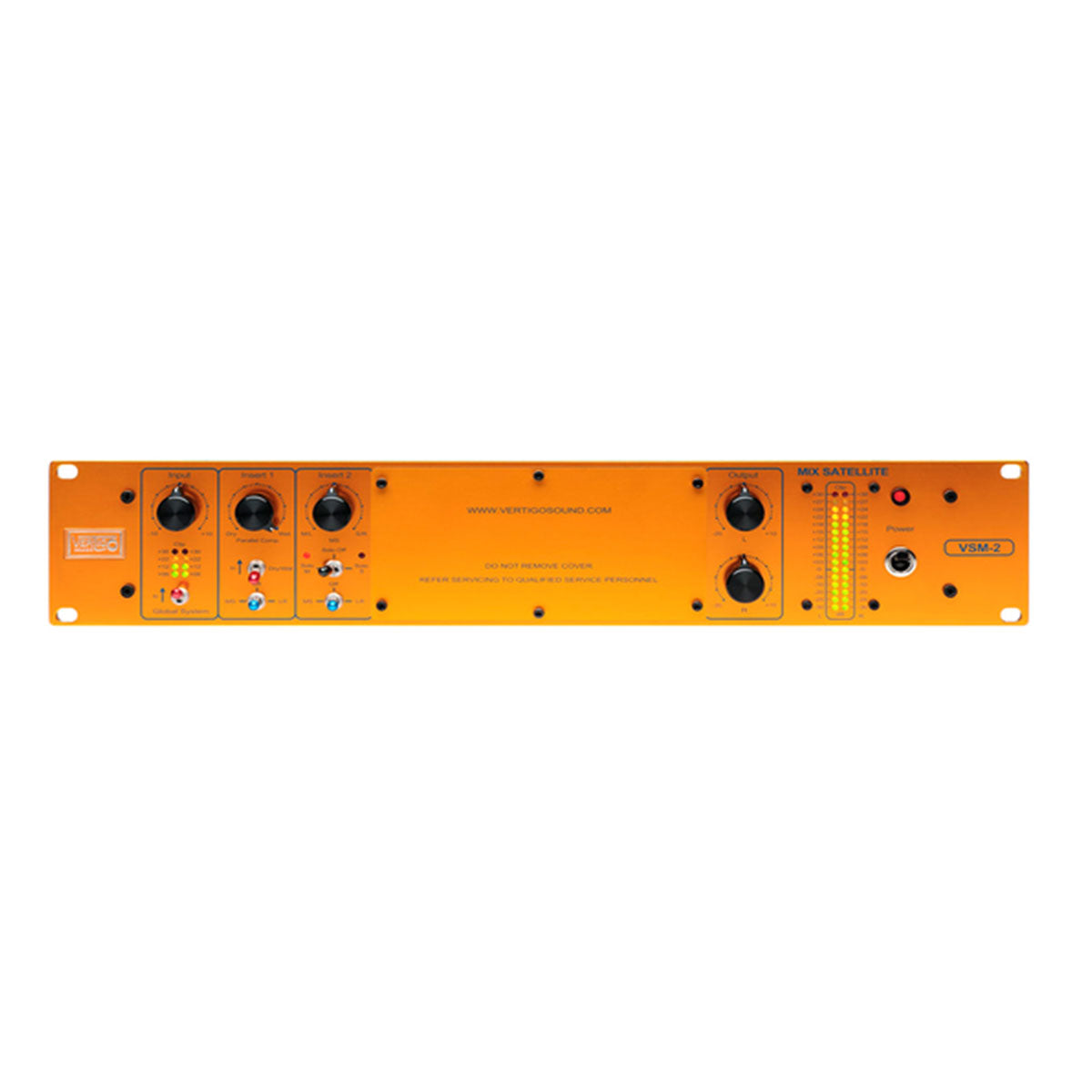

        VSM-2 Basic:

        All analog, latency free processing

        Two fully balanced inserts on XLR offering MS En & DE-coding

        Level compensated MS En & DE-coding

        Insert 1 provides Dry-Wet Mix control „Parallel Compression“ for LR and MS

        Insert 2 provides „M&S Stereo Width“ control

        Level compensated AFL Solo for M and S-Signal

        All controls can be easily recalled via stepped controls, pointer knobs & fine scales

        Hardwire bypass for all and each processing stage

        Excellent headroom with up to +30dbu at the Ins & Outs

        Level matching of the inputs and outputs

        Fast input and output metering plus various clip leds

        Colour coded switch controls for easy intuitive operation

        Superior crafted & anodized frontplate in „sun orange“ & blue metallic silk screen print


        VSM-2 „full version“ additional features:

        Two independent stereo coloration circuits

        Stereo & M or S Generation of pure 2nd & 3rd harmonics

        Each coloration generator is independantly switchable to M, S or LR

        Excessive harmonic filtering possibilties for each harmonic generator

        RMS LED level control for equal level of harmonic generators

        Unique „Track“ mode for processing individual instruments

        Soft & Hard clip switching capability

      • Technical Specifications:

        All Ins & Outs electronically balanced

        Dynamic Range: 128 db

        Frequency response: 10 Hz … 100 kHz (+- 1 db)

        Max. Output Level: + 30 dBu

        THD at +28dbu <= 0,003%

        Signal to Noise Ratio at + 6 dBu = 104 db (20..20 kHz, unweighted, RMS)

        Noise: – 98 dBu (20 Hz – 22 khz – unweighted, RMS) @ 0 db Unity Gai

        Power consumption: max 30 Watts
