Vicoustic Multifuser Wood MKII Diffusion Panels 64 Tiles (1 Units)

Please check available finishes before ordering.

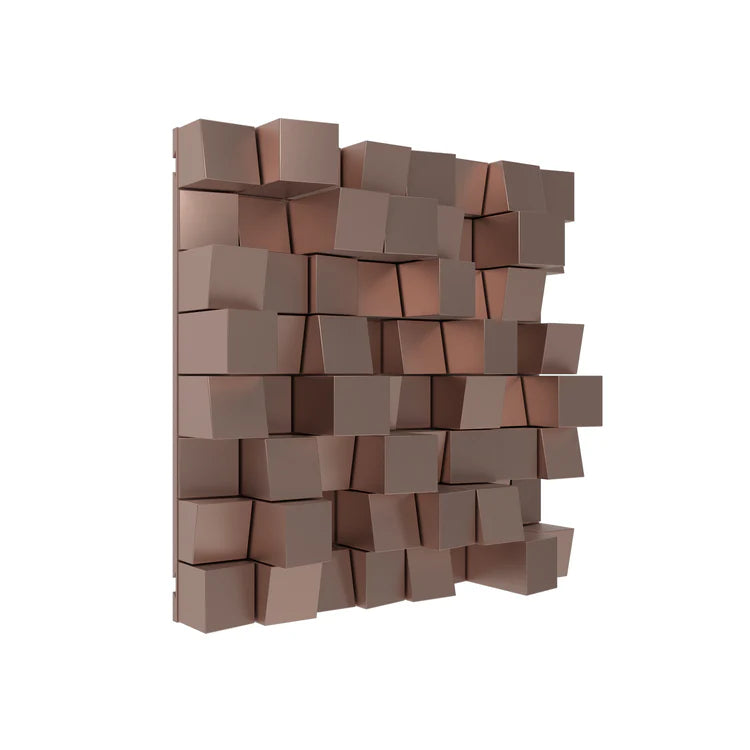

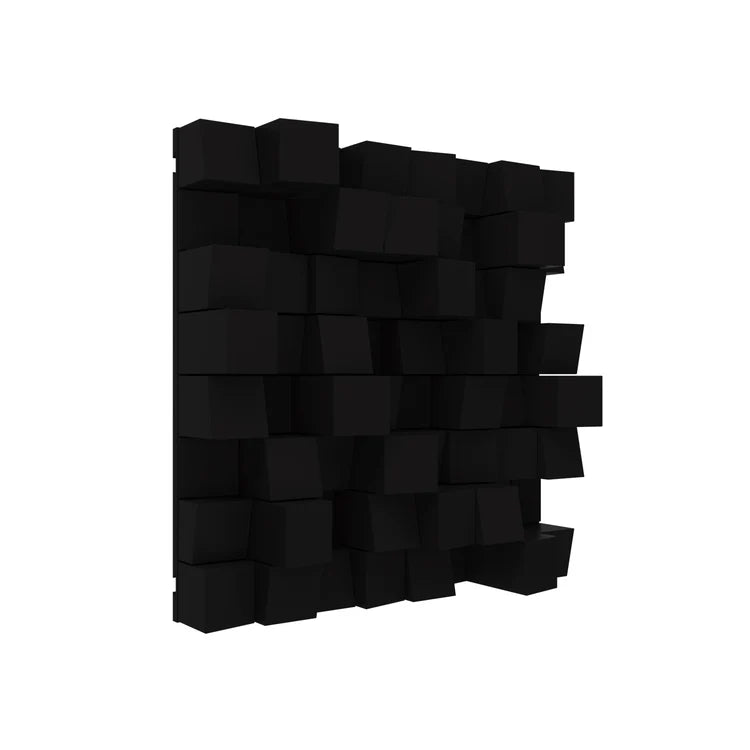

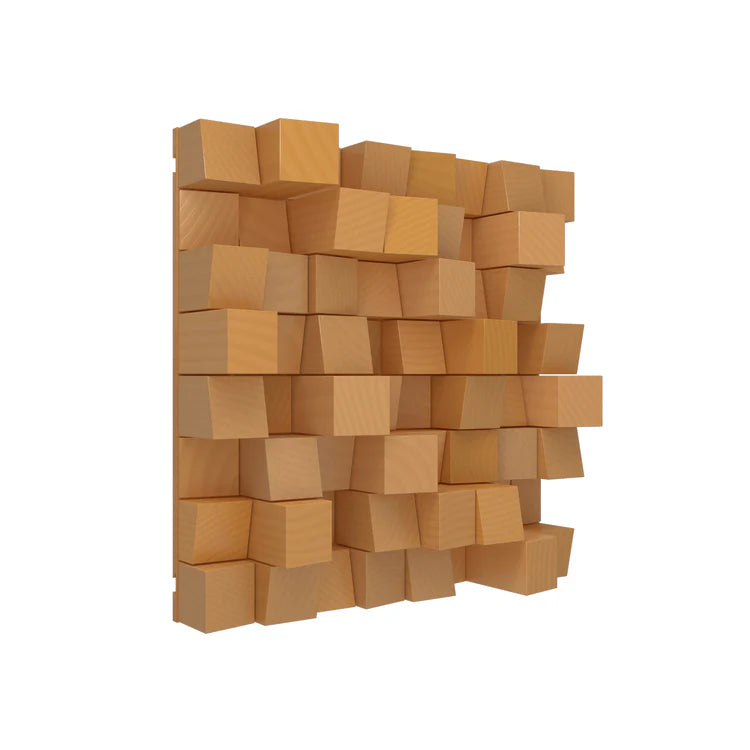

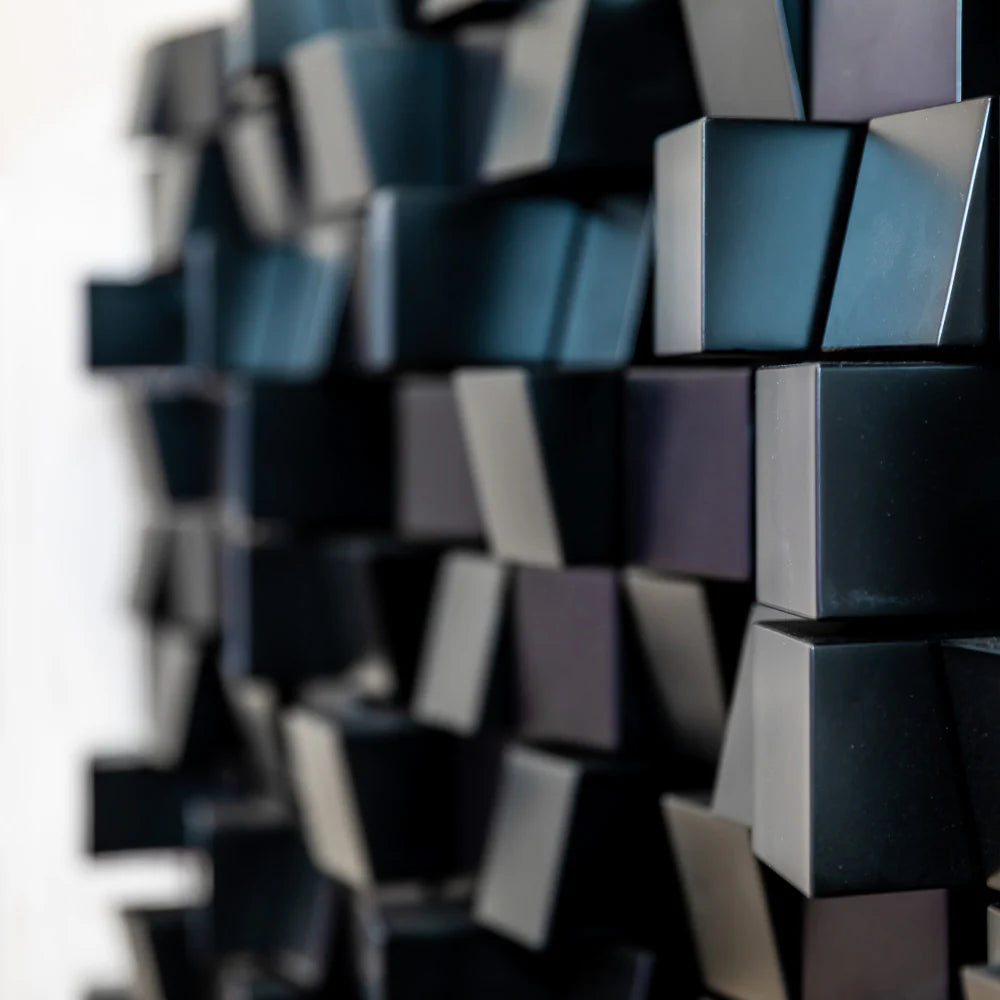

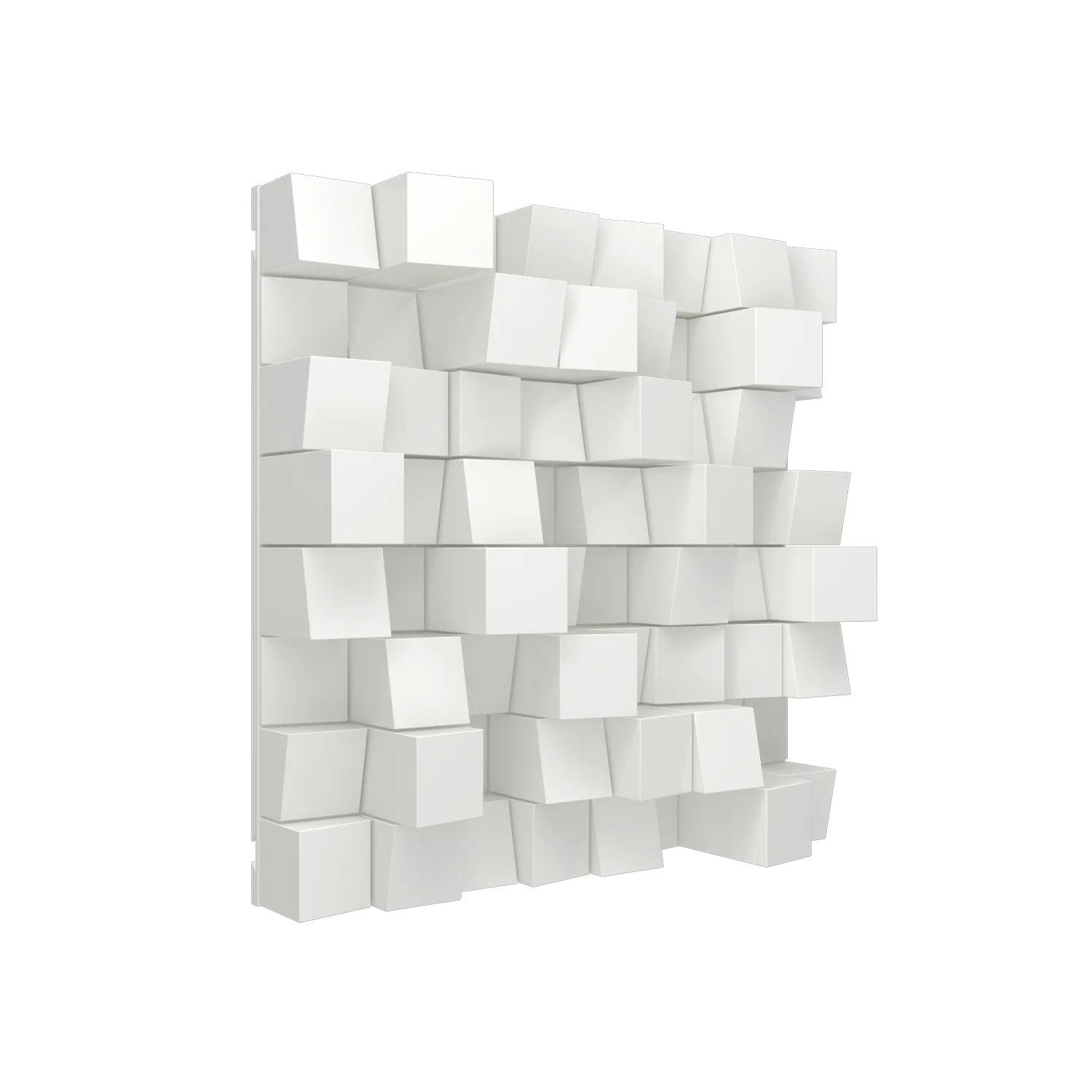

Made from solid wood, the Multifuser collection is perfect for use in venues such as concert halls, hi-fi rooms and recording studios, where effective diffusion is often required, without too much absorption occurring at the same time. With its striking angled surface, the two-dimensional diffuser is based on a QRD sequence combined with changing reflection techniques (a result of the angled surface). The panel itself is made in two parts. Each part can be rotated in different directions so that a uniform, omni-directional scattering of sound is achieved, with particularly effective diffusion of mid and low frequencies. Multifuser Wood 64 works between 310Hz and 8kHz and Multifuser Wood 36 works between 470Hz and 10kHz. As well as its acoustic efficiency, the panel’s attractive appearance makes it suitable for use in a range of settings. Available in Light Brown, Black, White and two new colours: Metallic Copper and Metallic Gold.

Tech Specs:

Dimensions: 36 – 595×595×96mm / 23.4"×23.4"×3.8"; 64 – 595×595×143mm / 23.4"×23.4"×5.6" (L×H×W, per panel)

Weight:  64 – 17.55kg / 38.69lbs (per panel)

Raw Material: Natural Wood – Solid Wood and Plywood; Matte and Metallic colors – Lacquered MDF and Plywood

Scratch Resistance: No

Performance

Functionality: Diffusion

NRC: 36 – 0.25; 64 – 0.35

Fire Rate

Europe: Euroclass E

USA: Class B (ASTM-E84)

Packaging Information

Units/Box: 1 unit/box

Box Dimensions (L×H×W): 64 – 625×330×190mm / 24.6"×13"×7.5"

Box Gross Weight: 64 – 18.2kg / 40.2lb

Installation

Fixation: VicFix J Profile (included), VicFix Suspension Profile 595mm or 1190mm (ceiling)

Place: Walls, Ceiling
