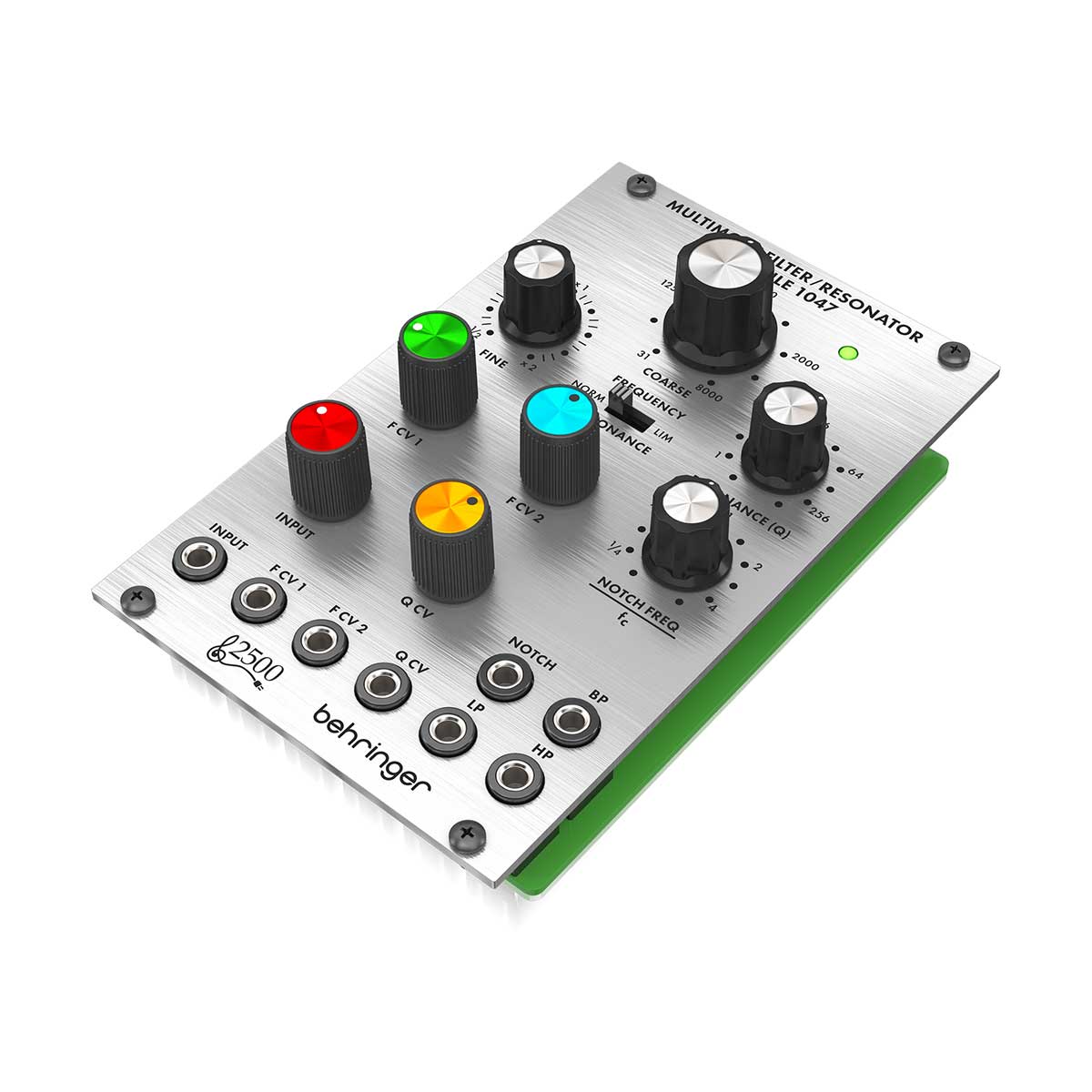

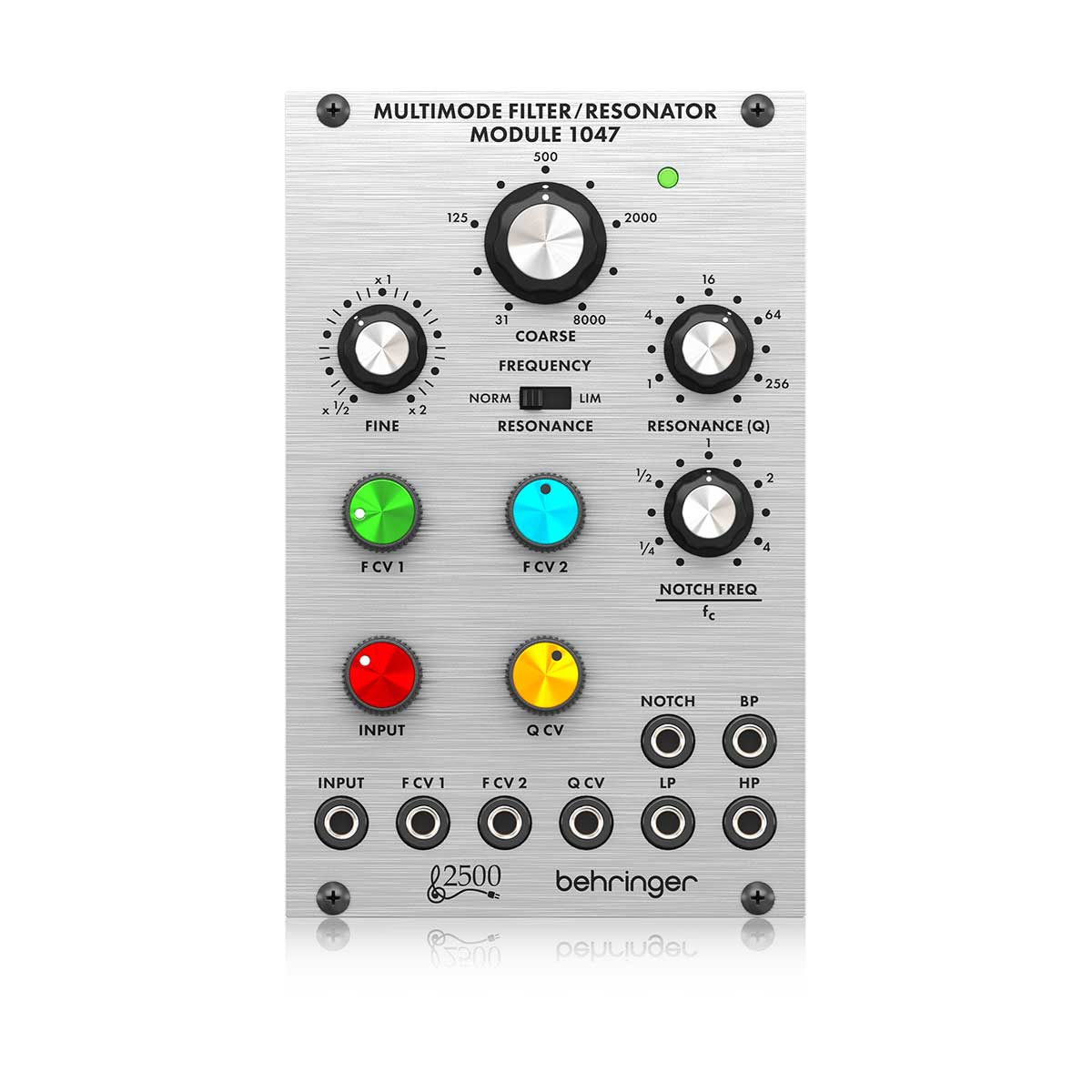

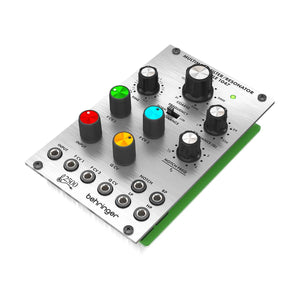

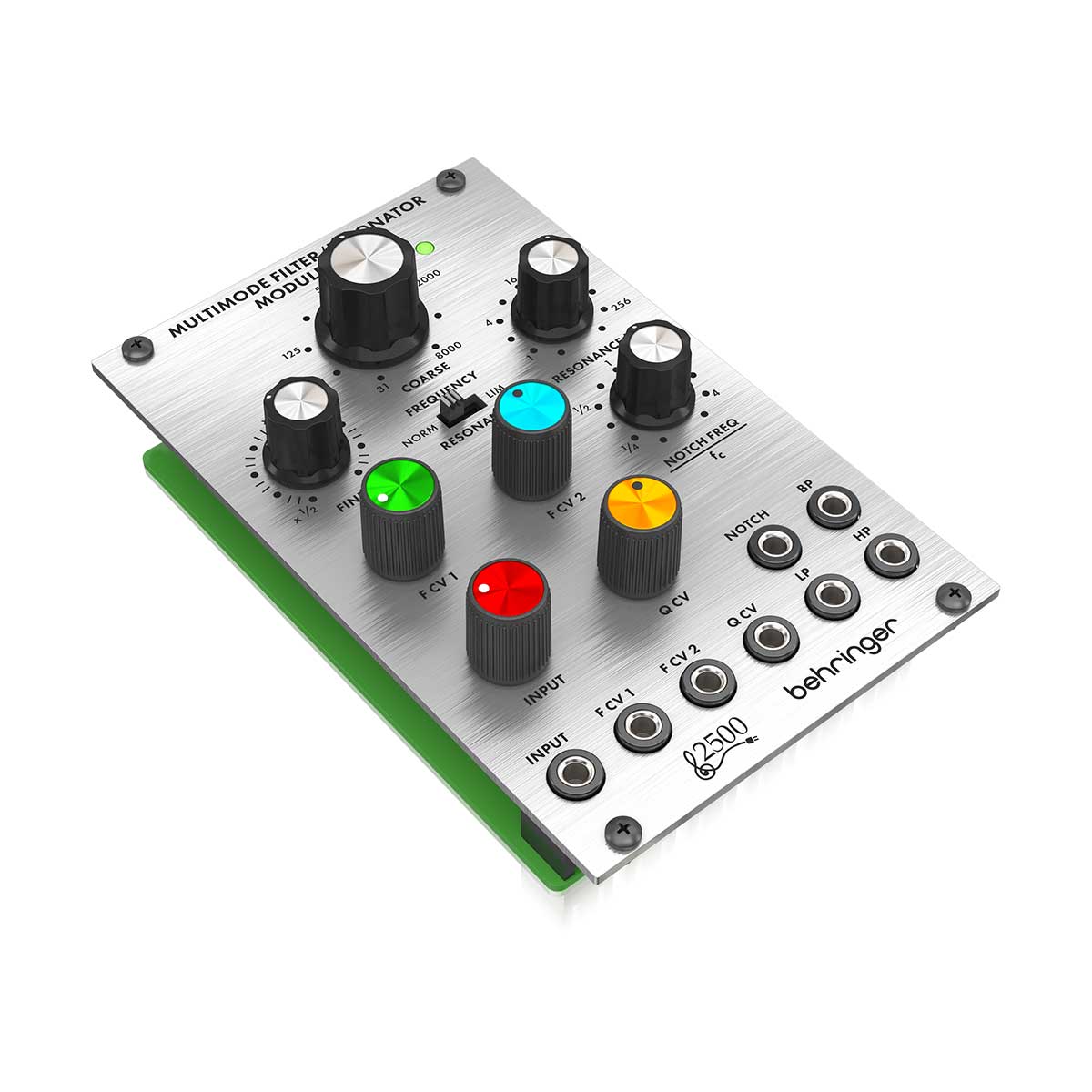

Behringer Multimode Filter / Resonator Module 1047

• Classic-sounding 1047 analog multi-mode filter and resonator module from the '70s

• An authentic reproduction of the circuitry from the "2500" Series

• Consists of a highly resonant 12 dB state-variable filter capable of proving a wide variety of formant shaping and tonal modulation

• Filter simultaneously provides high-pass, band-pass, low-pass, and notch outputs

• Coarse and fine controls adjust the cut-off frequency of the filter from 16 Hz to 16 kHz with 2 external control signal inputs and attenuators

• Resonance (Q) control adjusts the level of the resonant peak from 0 to 512 with an external control signal input and attenuator

• The keyboard percussion feature allows the filter to generate a wide range of percussive sounds

• A keyboard gate signal is connected to the external input with a keyboard CV connected to a frequency control input

• Striking a key will create percussive sounds when the Keyboard Percussion mode is activated

• When the keyboard is released the filter tone damps at a rate determined by Final Q

• Eurorack specs: 16 HP, XX mA +12 V, XX mA -12 V

MULTIMODE FILTER RESONATOR

The MULTIMODE FILTER/RESONATOR MODULE 1047 is a classic voltage-controlled 12 dB per octave state-variable filter, the filter is a matched transistor design for a vintage sound. The 1047 filter is equipped with coarse and fine filter frequency controls, a resonance (Q) control which acts on all 4 filter outputs, a resonance limit switch that prevents signal overload when high levels of resonance are used, the notch frequency/FC control allows the notch frequency to be adjusted up or down from FC as set by the frequency controls, 2 summed frequency CV attenuators and resonance (Q) CV attenuator for maximum flexibility, the signal input is also equipped with an attenuator. All this gives you endless possibilities of filter curve shape to create the ultimate sound.

Ins and Outs

1047 gives you comprehensive connectivity, filter signal input, FCV 1 and FCV 2 inputs can be used for filter frequency control or modulation, the Q CV input allows modulation of Q and resonance. The independent low-pass, high-pass, band-pass, and notch filter outputs are all available simultaneously to feed multiple filter signals to other modules.

Eurorack Ready

Installing the MULTIMODE FILTER/RESONATOR MODULE 1047 is easy as it is designed to fit into a standard Eurorack case. Just connect the power cable to the power supply and screw in the module using the included screws. This allows for 1047 to be mixed with other synth modules for a truly unique setup.
