  • TUB-ME1B

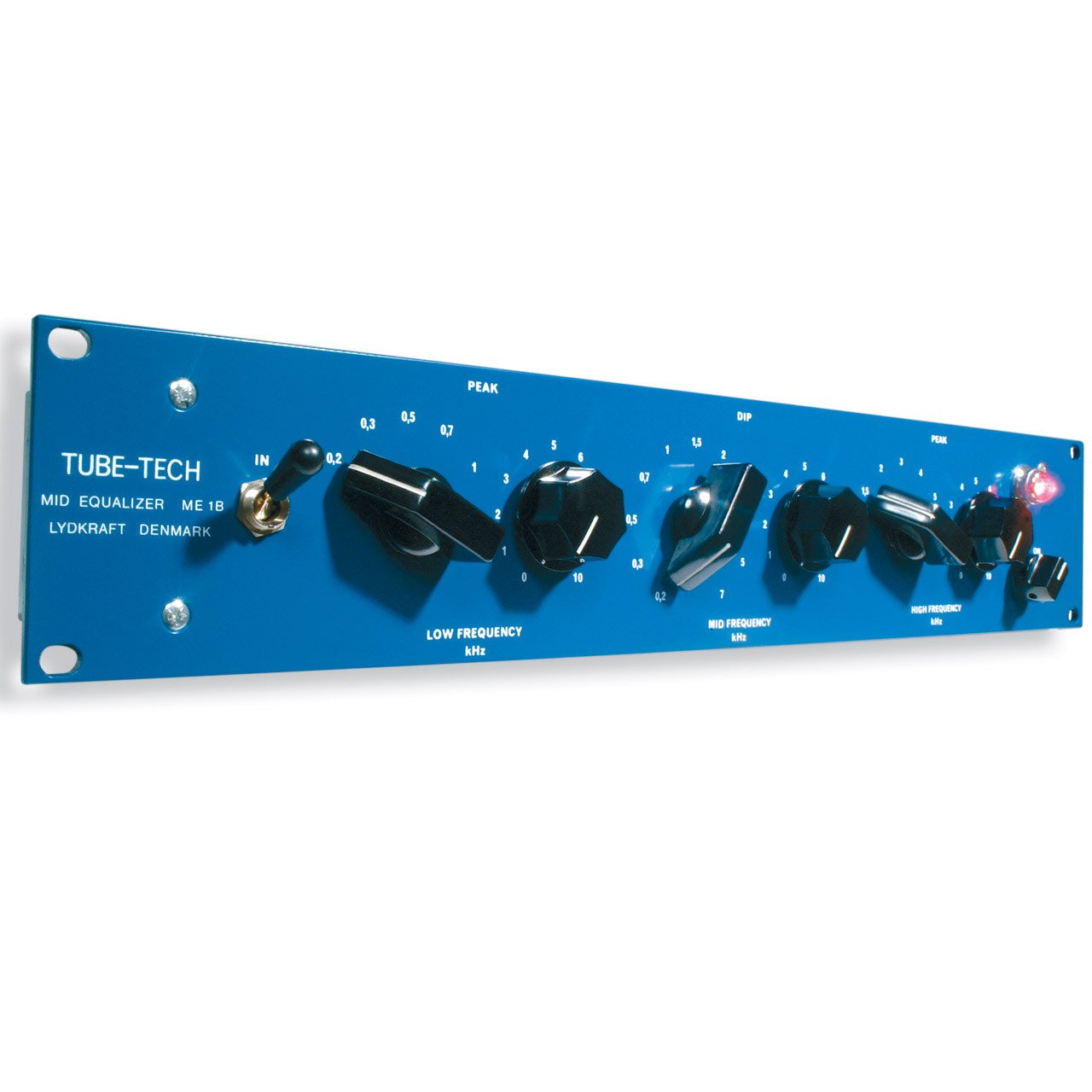

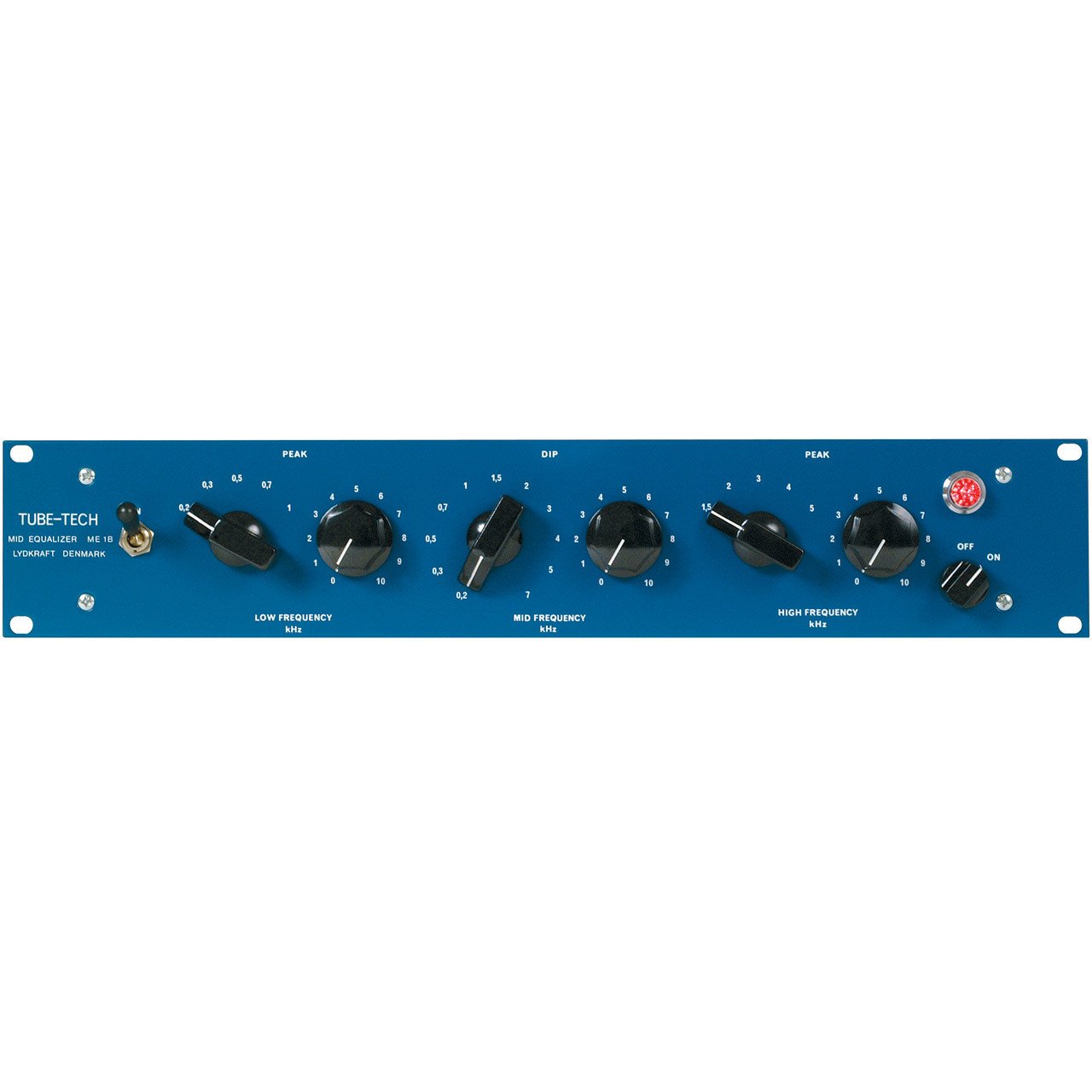

    Tube Tech ME1B

    The Tube-Tech ME 1B is a passive midrage equaliser based on the Pultech MEQ5. The ME 1B is all tube, and optimised for mid-range sound sources - excelling on vocals. The Tube-Tech ME 1B offers a broader frequency range than the MEQ5, however it retains the classic two-boost / one-cut section giving the ME 1B a deliciously smooth and musical response. The ME 1B is the ideal EQ to compliment the Tube-Tech PE 1C.

      • Tube-Tech ME 1B PRODUCT FEATURES:

        The TUBE-TECH ME 1B is a passive tube based midrange equalizer developed to
        match and surpass the demands of even the most discerning studio engineers.

        The TUBE-TECH ME 1B Midrange Equalizer contains a low frequency boost section for peaking, a mid frequency attenuation for dipping as well as a high frequency boost section for peaking. The filter section is of the the passive type followed by a tube based push-pull amplifier to restore the gain.

        Input and output are balanced as well as fully floating. Input and output transformers come with a static screen between the primary and secondary wirings.

        Tube based push-pull amplifier
        Frequency response @ -3 dB: 5 Hz to 40 kHz
        Low Noise: < -80 dBU @ 0 dB gain
        CMRR: > 60 dB @ 10 kHz
        5 LF peaks: 0.2, 0.3, 0.5, 0.7, and 1 kHz (0 to +10 dB)
        11 MF dips: 0.2, 0.3, 0.5, 0.7, 1, 1.5, 2, 3, 4, 5 and 7 kHz (0 to -10 dB)
        5 HF peaks: 1.5, 2, 3, 4, 5 kHz (0 to +8 dB)
        Input impedance: 600Ω
        No insertion loss
        Conductive plastic potentiometers
        In- and output are transformer balanced and fully floating
