Adam Audio

ADM-SUB10 mk2

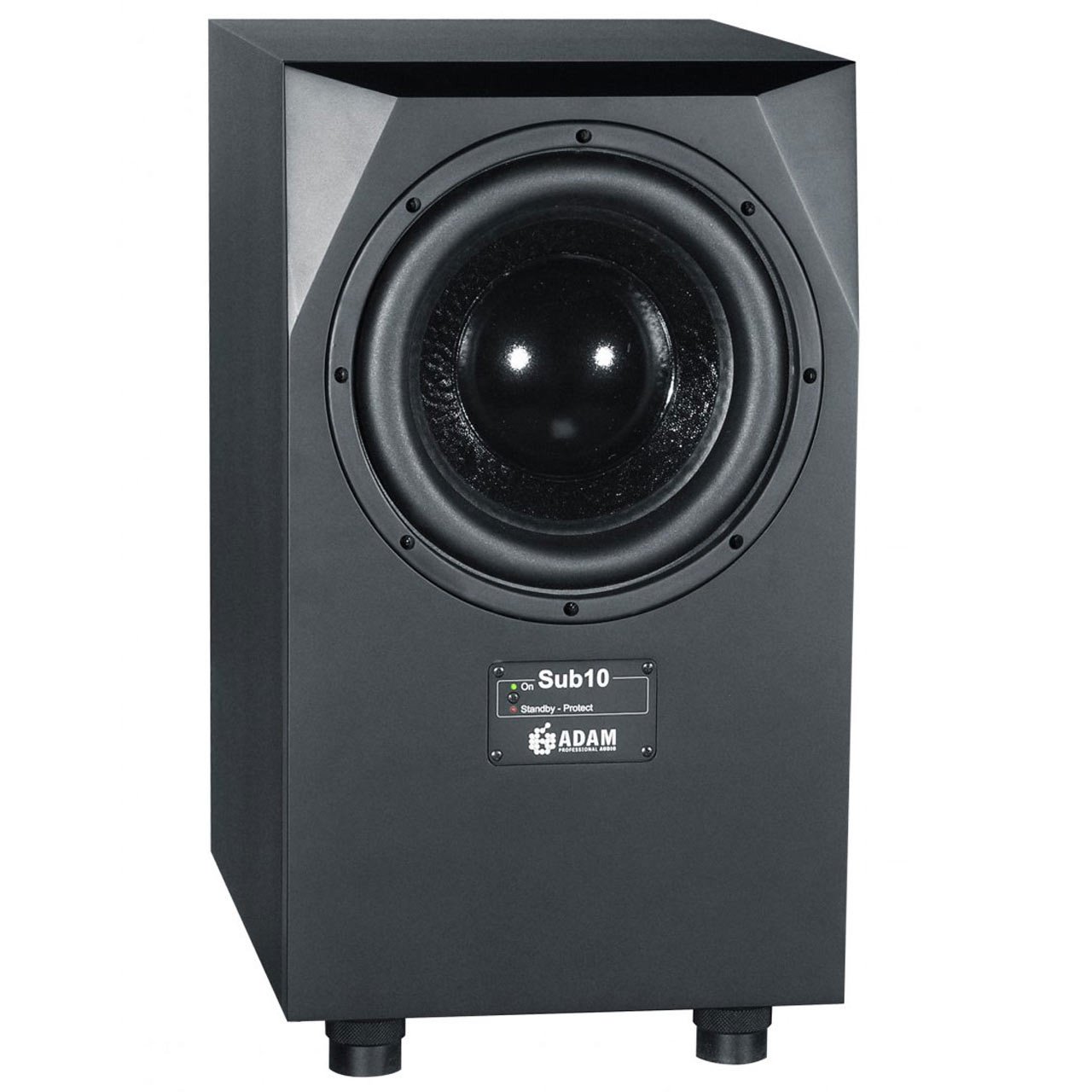

Adam Sub10 mk2 Active Studio Subwoofer

The active Sub10 mk2 subwoofer from Adam, features a 10' woofer with plenty of power. Extremely balanced and true low-frequency reproduction. The Sub10 is characterised by its definitive accuracy and true low frequency sound reproduction. This sub pairs perfectly with the Adam A7X, F7, S2X for a massive, full frequency, big studio sound.


      • Adam Sub10 PRODUCT FEATURES:

        The Sub10 Mk2 is a powerful subwoofer designed to extend the low frequency capabilities of any near or midfield monitoring system down to 25Hz.

        A sturdy special woofer with extended cone travel and a heavy-duty coil have been optimized for accurate reproduction from a bass reflex enclosure. The down-firing bass reflex tube avoids intrusive ventilation noise because of its generous size and shape. The PWM amplifier produces over 90% efficiency and can handle critical passages without overheating for long periods of time. An additional output allows you to cascade as many subwoofers as needed.

        The Sub10 Mk2 subwoofer provides a precise combination of low cutoff frequency (-3 dB at 25Hz) and an undistorted high sound pressure level (113dB at 1m).

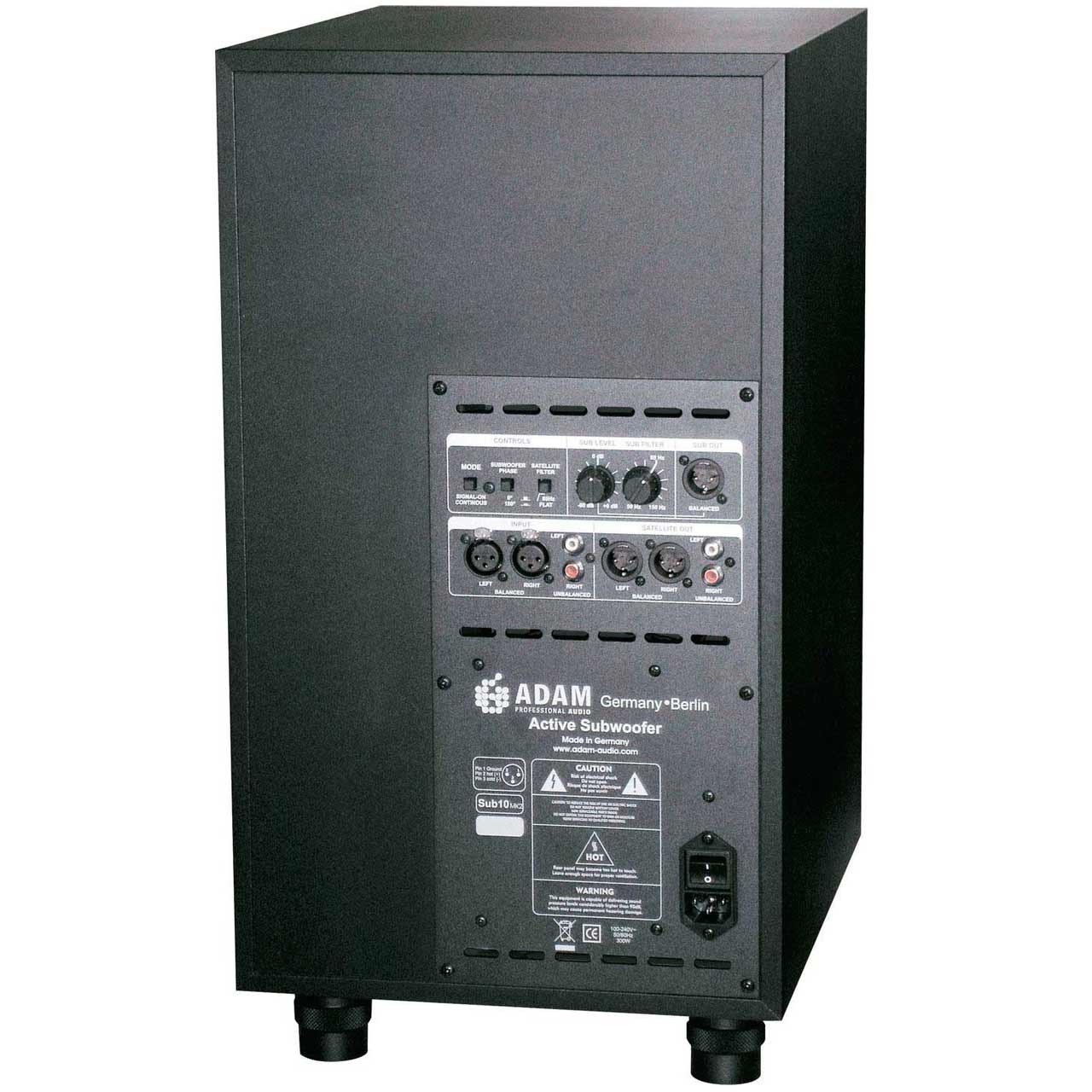

        Panel / Controls

        All subwoofers feature a level control (-60dB to +6dB), phase switch (180°) and a variable upper frequency control (50-150Hz). For the satellite outputs, an 85Hz high pass filter can be switched in to block frequencies below 85Hz so satellite speakers can meet the Dolby® recommendations for theater sound and also to relieve the satellites from the lower frequencies. In addition, you can either switch on/off the subwoofer manually or use the option of automatically powering up the subwoofer whenever it receives a signal (‚signal-on/ continuous').

        All subwoofers feature both balanced (XLR) and unbalanced (RCA) input/output connectors and comprehensive control options that allow for adapting to different room acoustics and requirements.

      • Adam Sub10 TECHNICAL SPECIFICATIONS:

        Subwoofer
        Number 1
        Basket Ø 10" (260 mm)
        Voice coil Ø 2" (50 mm)
        Cone material Paper
        Built-in Amplifiers
        Subwoofer 1
        Amp. power RMS / music 200 W / 300 W
        Input connectors
        Analog XLR / RCA
        General data
        Panel Rear
        Frequency response 25 Hz - 150 Hz
        THD > 60 Hz ≤1 %
        Peak SPL max at 1m ≥113 dB
        Crossover frequencies 50 - 150 Hz
        Input impedance 10 KOhm
        Weight 46.3 lb (21 kg)
        Height x Width x Depth 22" (560 mm) x 12" (300 mm) x 15.5" (400 mm)
        Warranty 5 Years
Need more info on the Sub10? Click HERE for the official Adam Audio product listing >>>
