SDI Video Inputs
4 x 10-bit SD-SDI, HD-SDI and 6G‑SDI.
$819.00$899.00
HDL-MULTIP6G/04

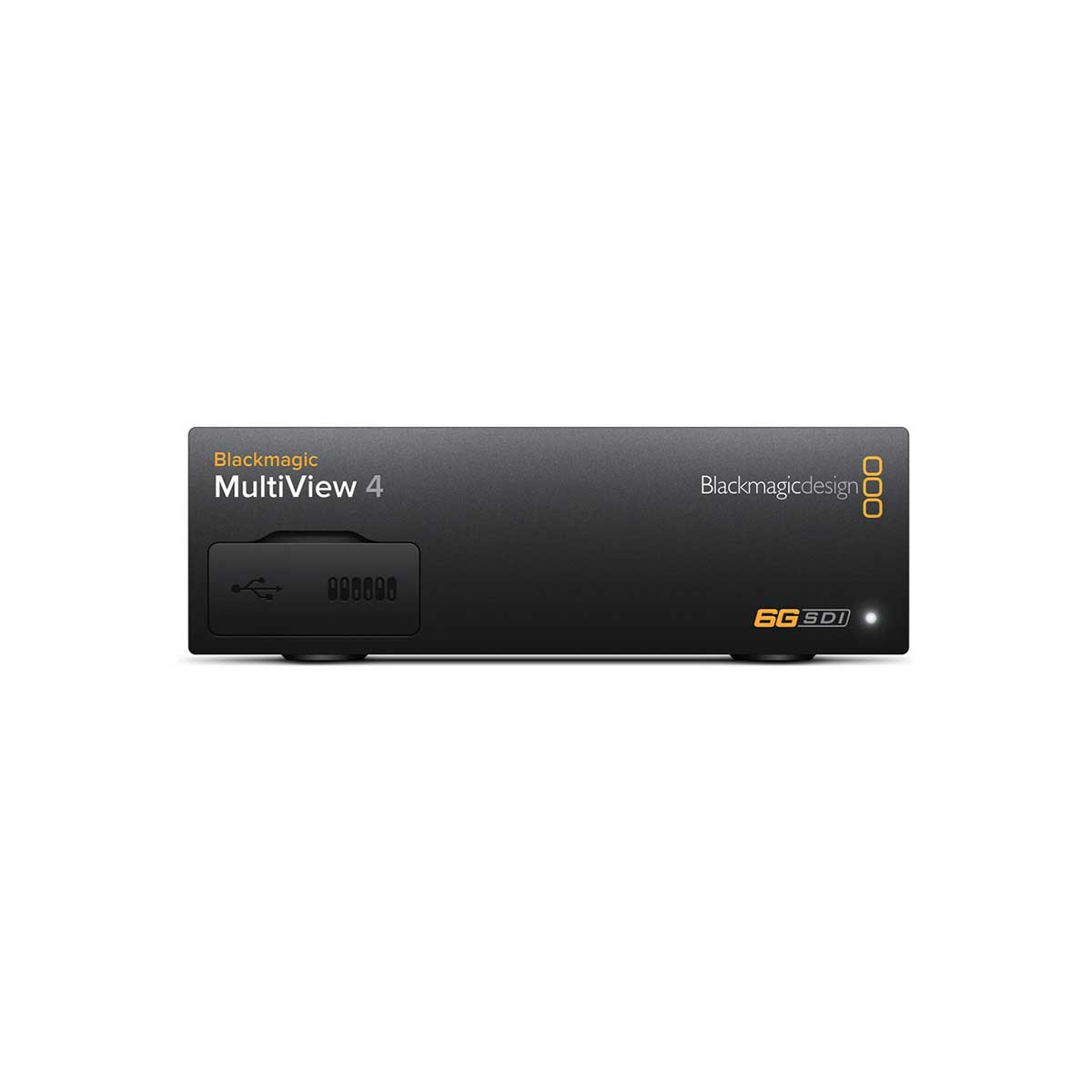

Blackmagic Design MultiView 4 Multi-Viewer
Blackmagic MultiView 4 is a multi viewer that lets you monitor 4 completely independent SDI video sources on a single display! Featuring 4 6G-SDI inputs with full re-synchronization, MultiView 4 lets you monitor any combination of SD, HD and Ultra HD video formats and frame rates all at the same time. Blackmagic MultiView 4 can output to both 1080 HD and 2160p Ultra HD displays so you connect it to either regular HD or Ultra HD televisions. If you connect an Ultra HD television or monitor, you can take advantage of the extra resolution of Ultra HD and see full resolution 1920 x 1080 HD in each view for incredible sharpness! You can even turn on audio meter overlays, custom labels and more in each view!
The easiest SD, HD and Ultra HD multi view you'll ever use!
Blackmagic MultiView 4 has four independent 6G‑SDI inputs that work with all SD, HD and Ultra HD formats up to 2160p30. The included Ethernet remote control software lets you turn on audio meters, select audio to output, and create custom labels. MultiView 4 displays your sources in a standard 2x2 grid. You can also add a Teranex Mini Smart Panel for full front panel control and rack mount it using the optional Teranex Mini Rack Shelf!
Type: Video Monitoring

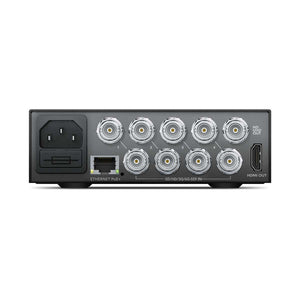

Connections
SDI Video Outputs
4 loop, 1 HD/Ultra HD.
SDI Rates
270Mb, 1.5G, 3G, 6G.
SDI Video Multi View Outputs
1 x 10-bit HD-SDI and 10 bit 6G‑SDI
HDMI Video Multi View Outputs
1 x HDMI type A connector. Output supports EDID of the monitor.
SDI Reclocking
On all SDI outputs, auto switching between standard definition, high definition or 6G‑SDI video.
Reference Input
None
Multi Rate Support
Auto detection of SD, HD or 6G‑SDI. Simultaneous viewing of 4K, HD and SD video.
Updates
USB 2.0 high speed (480Mb/s) interface or via Ethernet.
Configuration
RJ45 Ethernet or USB 2.0 for firmware updates and IP address setting.
Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50,1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
2K Video Standards
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
4K Video Standards
4K DCI 24p
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M, SMPTE 425M-B, ITU‑R BT.656 and ITU‑R BT.601.
Audio Meters
Each view, VU standard.
Source Routing
None
SDI Video Sampling
4:2:2 and 4:4:4.
SDI Audio Sampling
Television standard sample rate of 48kHz and 24‑bit.
SDI Color Precision
10-bit 4:2:2 and 4:4:4.
SDI Color Space
YUV or RGB for inputs, YUV for outputs.
SDI Auto Switching
Automatically selects between SD‑SDI, HD‑SDI, and 6G‑SDI on each input so that each input can be running a different television standard.
SDI Metadata Support
Video payload identification ancillary data as per SMPTE 352M.
Control
Built in Control Panel
None. Supports Teranex Mini Smart Panel which adds menus and 2.2 inch color display.
External Control Panel
None
Display
Optional Teranex Mini Smart Panel with 2.2 inch LCD for menu settings.
Software
Software Control
MultiView software included free for Windows™ and Mac™.
Internal Software Upgrade
Via included updater application.
Operating Systems
Mac 10.12 Sierra or later.
Power Requirements
Power Supply
IEC power cable required, 90 ‑ 240V AC input.
Power Fail Protection
MultiView 4 settings preserved and restored instantly at power on.
Power over Ethernet
Can be powered via 48V DC using PoE+ (power over ethernet)
Power Consumption
16 Watts
