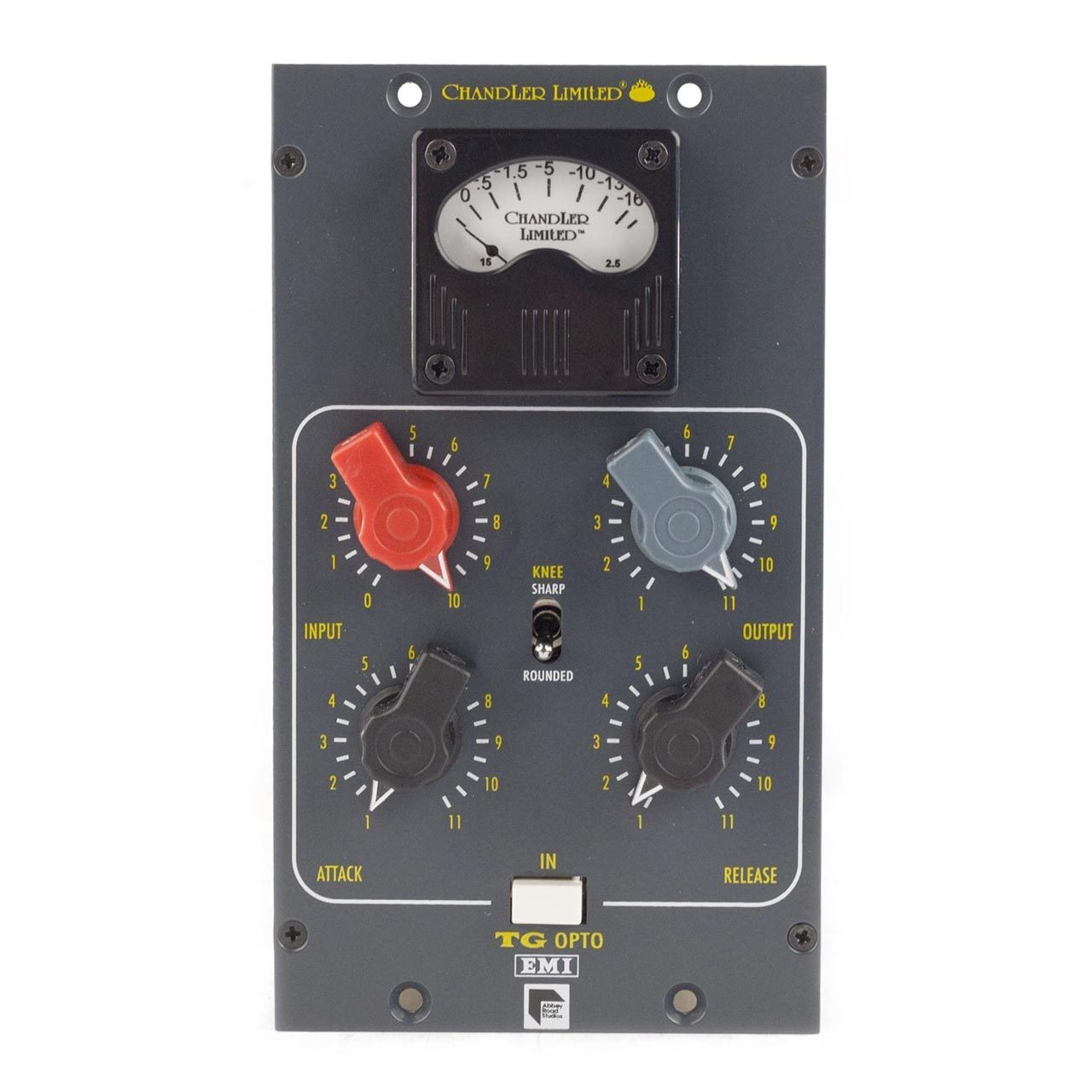

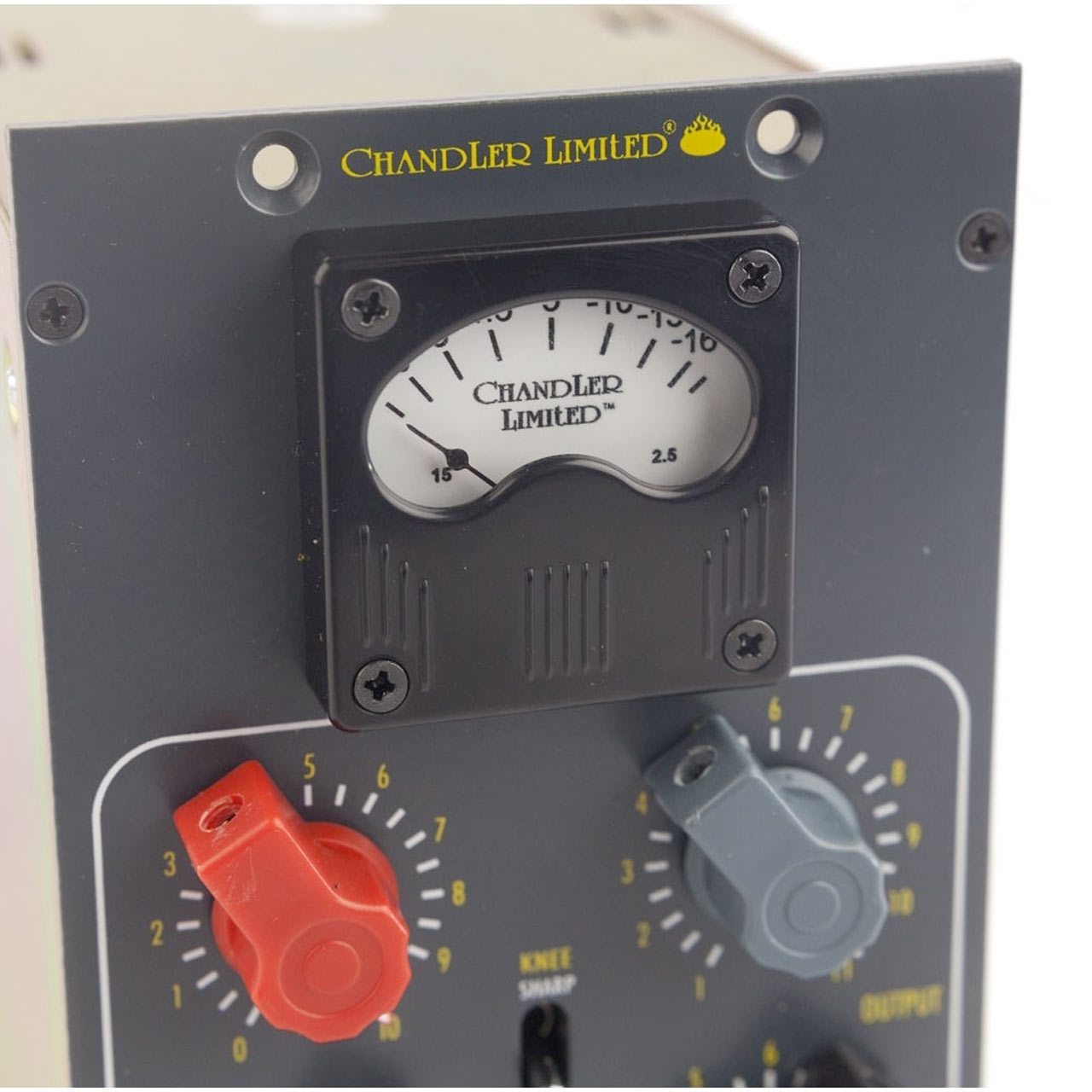

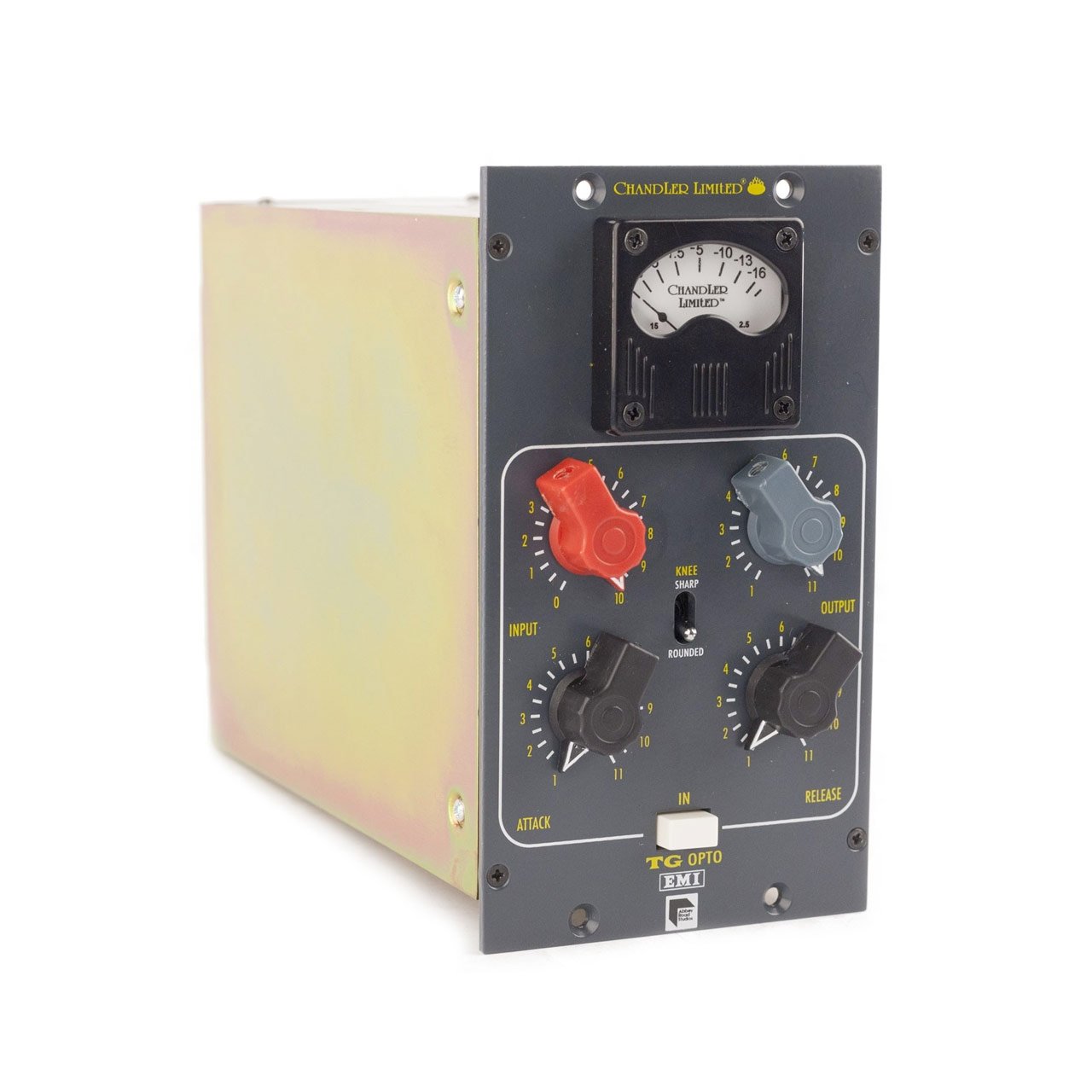

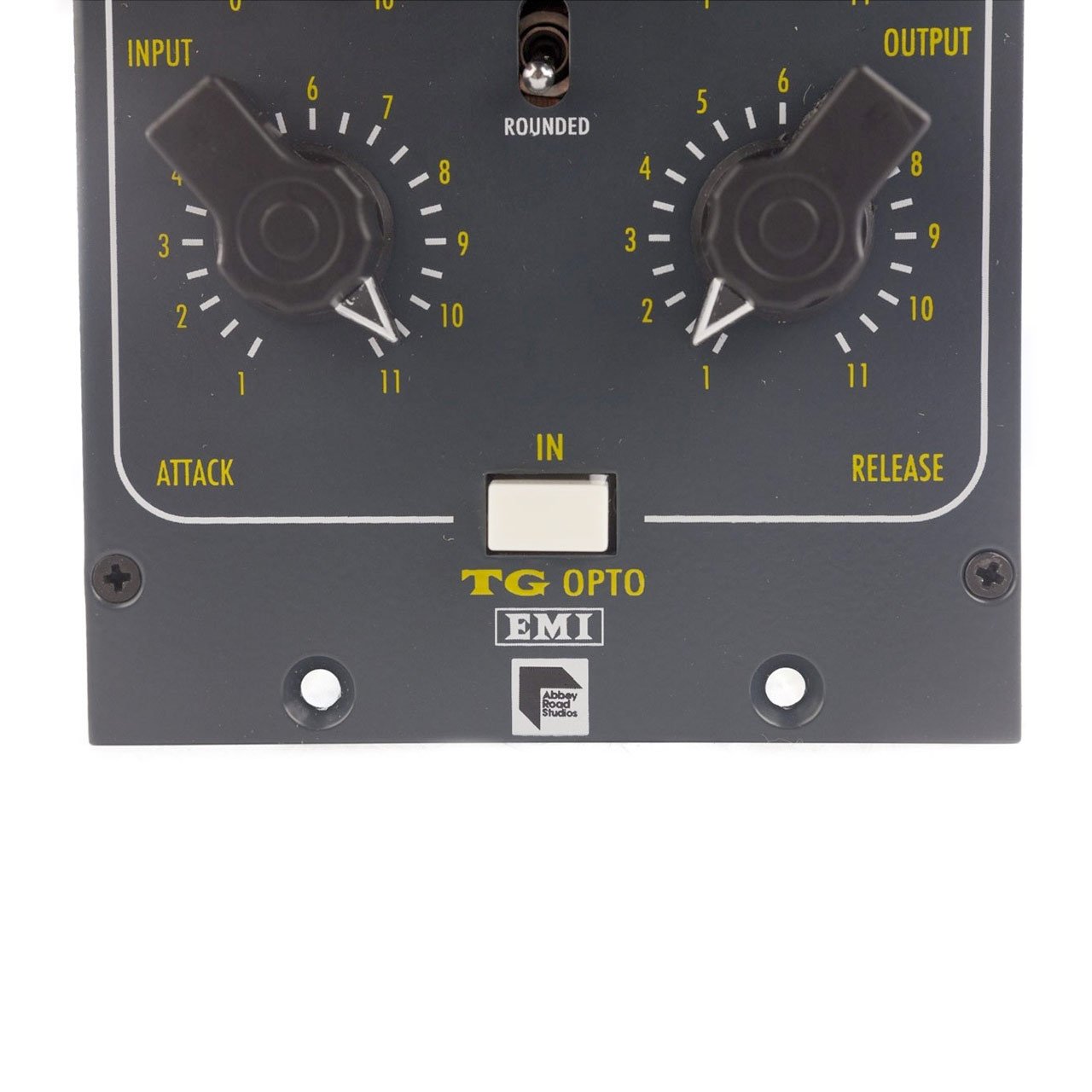

    Chandler Limited TG Opto Compressor - 500 Series Compressor

    The Chandler Limited TG Opto, is a double-wide optical mono compressor for the 500 series format. The TG Opto 500 has been modelled off the compressor found in the Chandler TG1 Cassette. Key features include a switch for selecting a sharp or rounded knee, VU metering, and attack, release, input and output chicken-head style encoders.

      • Chandler Limited TG Opto Compressor PRODUCT FEATURES:

        The TG Opto compressor control-set includes: selectable sharp and rounded knees, continuous input, output (makeup gain), attack, release, and true bypass.
        The attitude of the TG Opto is one of two personalities, each actuated by the selectable sharp and rounded knee types. In sharp, the TG Opto is capable of explosive drum sounds, and set to rounded, it is well suited to scenarios where the artifact of compression is required to be less obvious or gentle.

        The continuous control-set affords the ability to fine-tune compression to respond to an array of sources and create a variety of tones.

        Create your own TG console channel today by adding the TG Opto compressor, TG2-500 preamp and TG12345 MKIV equalizer to your 500 Series rack!

        Chandler Limited is the only company in the world authorized to develop, manufacture and market the “Official Equipment” of EMI/Abbey Road Studios.
      • Chandler Limited TG Opto Compressor TECHNICAL SPECIFICATIONS:

        I/O: 500 Series format (frame dependent)

        500 Series format: +/-16v
        Max. current draw: +16v @ +100mA / -16v @ -100mA

        Channels: Mono, double space
        Circuit: Discrete, Transistor
        Input: Continuous
        Make-up Gain: Continuous
        Attack: Continuous
        Release: Continuous
        Knee: Switchable, Sharp/Rounded
        Bypass: True Bypass
    Need more info on the Chandler Limited TG Opto Compressor? Click HERE for the manufacturer's website >>>
