DPA Microphones

DP-CO4099U

DPA d:vote™ CORE 4099 Mic, Loud SPL with Universal Mount

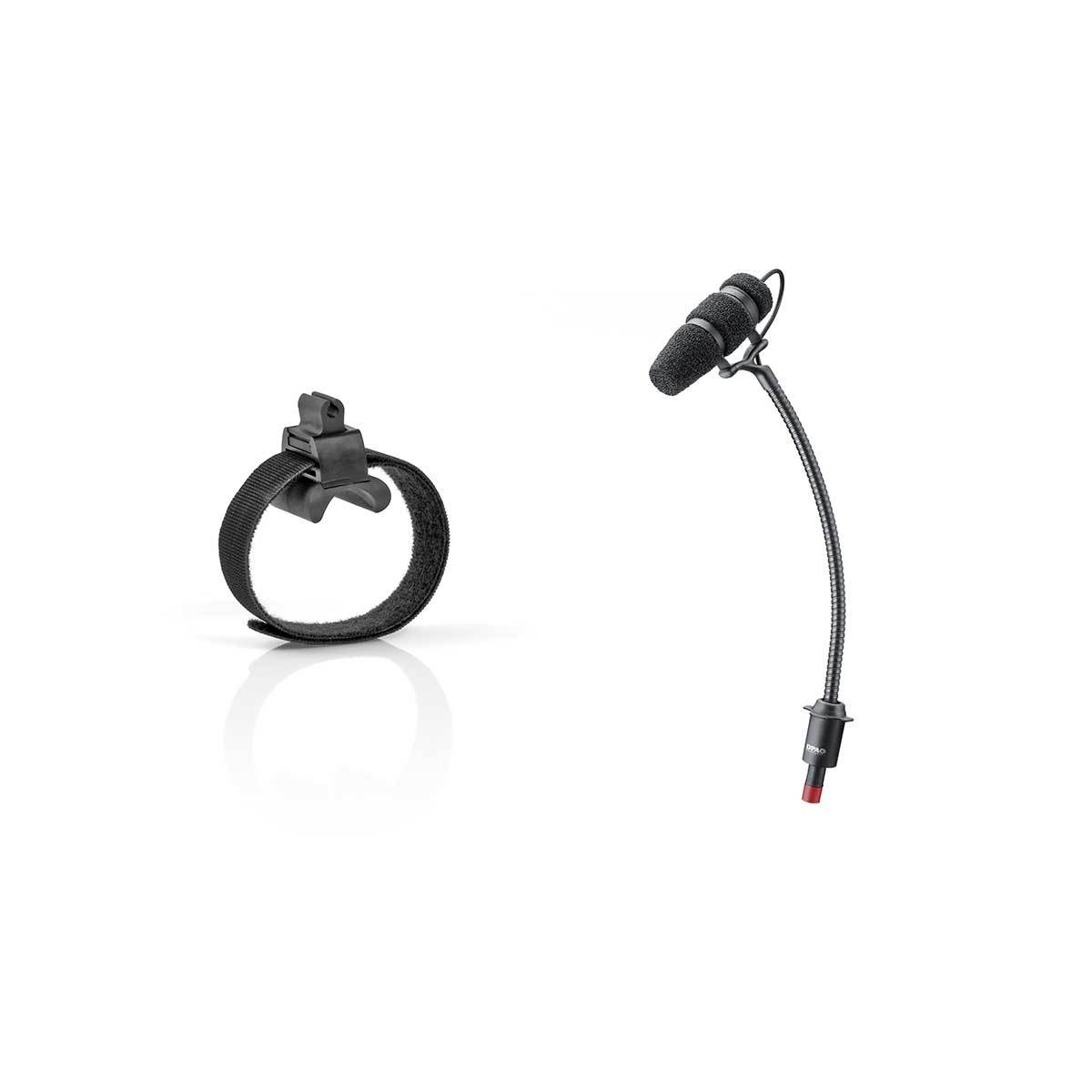

The DPA d:vote™ CORE 4099 for Loud SPL solution is designed to address the unique mounting challenges of slim bodied and unusually shaped instruments. The design of the microphone clip includes a hook-and-loop fastener strap, which allows it to fit instruments of varying sizes and diameters such as the oboe, clarinet, bassoon, recorder and flute. The fastener strap pulls tight to fit the circumference of the instrument, like a wristwatch on your arm. On instruments of a large diameter, additional fastener straps can easily be added to extend the clip’s reach. It is lightweight, unobtrusive and designed to stay out of the way during performances, using a revolutionary 90°-system which provides a wide range of mounting options. By detaching the clip from the gooseneck and re-mounting it turned 90°, the number of mic positions is doubled.


    • Product Features:

      d:vote™ CORE 4099 Instrument Microphone for Clarinet, Oboe, Bassoon, Recorder, Flute & other Universal Applications (4099-DC-1-199-U).

      CORE by DPA technology inside
      Supercardioid condenser microphone
      Handles high SPLs
      Superior gain-before-feedback
      Flexible and easy mounting
      Gentle and easy to mount on the instrument
      Detachable cable and a versatile gooseneck extender
    • Technical Specifications:

      Directional pattern

          Supercardioid

      Principle of operation

          Pressure gradient

      Cartridge type

          Pre-polarized condenser

      Frequency range

          20 Hz - 20 kHz

      Frequency range, ± 2 dB, at 20 cm (7.9 in)

          80 Hz - 15 kHz with 2 dB soft boost at 10-12 kHz

      Sensitivity, nominal, ±3 dB at 1 kHz

          6 mV/Pa; -44 dB re. 1 V/Pa

      Equivalent noise level, A-weighted

          Typ. 23 dB(A) re. 20 μPa (max. 26 dB(A))

      S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL)

          Typ. 71 dB(A)

      Total harmonic distortion (THD)

          < 1% up to 131 dB SPL peak

      Dynamic range

          Typ. 108 dB

      Max. SPL, peak before clipping

          142 dB

      Output impedance

          From MicroDot: 30 - 40 Ω. From DAD4099/DAD6001-BC: 100 Ω

      Cable drive capability

          Up to 300 m (984 ft) with DAD4099 or DAD6001-BC XLR Adapter

      Output balance principle

          Signal balanced with DAD4099 or DAD6001-BC XLR Adapter

      Common mode rejection ratio (CMRR)

          > 60 dB from 50 Hz to 15 kHz with DAD4099 or DAD6001-BC XLR Adapter

      Power supply (for full performance)

          Min. 5 V to max. 50 V through DPA adapter for wireless systems

      Current consumption

          Typ. 1.5 mA (microphone). 3.5 mA with DAD4099 or DAD6001-BC XLR Adapter

      Connector

          MicroDot

      Colour

          Black

      Weight

          27 g (0.95 oz)

      Microphone diameter

          5.4 mm (0.21 in)

      Microphone length

          45 mm (1.8 in)

      Cable length

          1.8 m (5.9 ft)

      Cable diameter

          1.6 mm (0.06 in) / 2.2 mm (0.09 in)

      Polarity

          +V at MicroDot pin for positive sound pressure (and pin 2 on DAD4099 or DAD6001-BC XLR adapter)

      Temperature range

          -40°C to 45°C (-40°F to 113°F)

      Relative humidity (RH)

          Up to 90%

      Gooseneck length

          140 mm (5.5 in)
