- JBL 12 in low frequency driver with a 64 mm (2.5 in) diameter edgewound ribbon voice coil which provides more cross-sectional wire area in the voice coil gap than round wire designs, for greater efficiency and power handling.
- JBL 2414H-C 25 mm (1 in) polymer diaphragm compression driver improves high frequency performance as well as system reliability.
- The advanced network topology crossover design shapes frequency response and delivers "coherent summation" in the crossover region.
- High-voltage capacitors and inductors with massive cores and heavy gauge wire enable the crossover network to handle high power without saturating.
- Progressive Transition™ high frequency waveguide provides superior coverage control, reduced distortion, and smoother frequency response.
- The rugged, acoustically superior enclosure is constructed from 19 mm (.75 in) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for extreme durability and improved low-frequency performance.
- SonicGuard™ protects the high frequency driver from excess power without interrupting the performance.

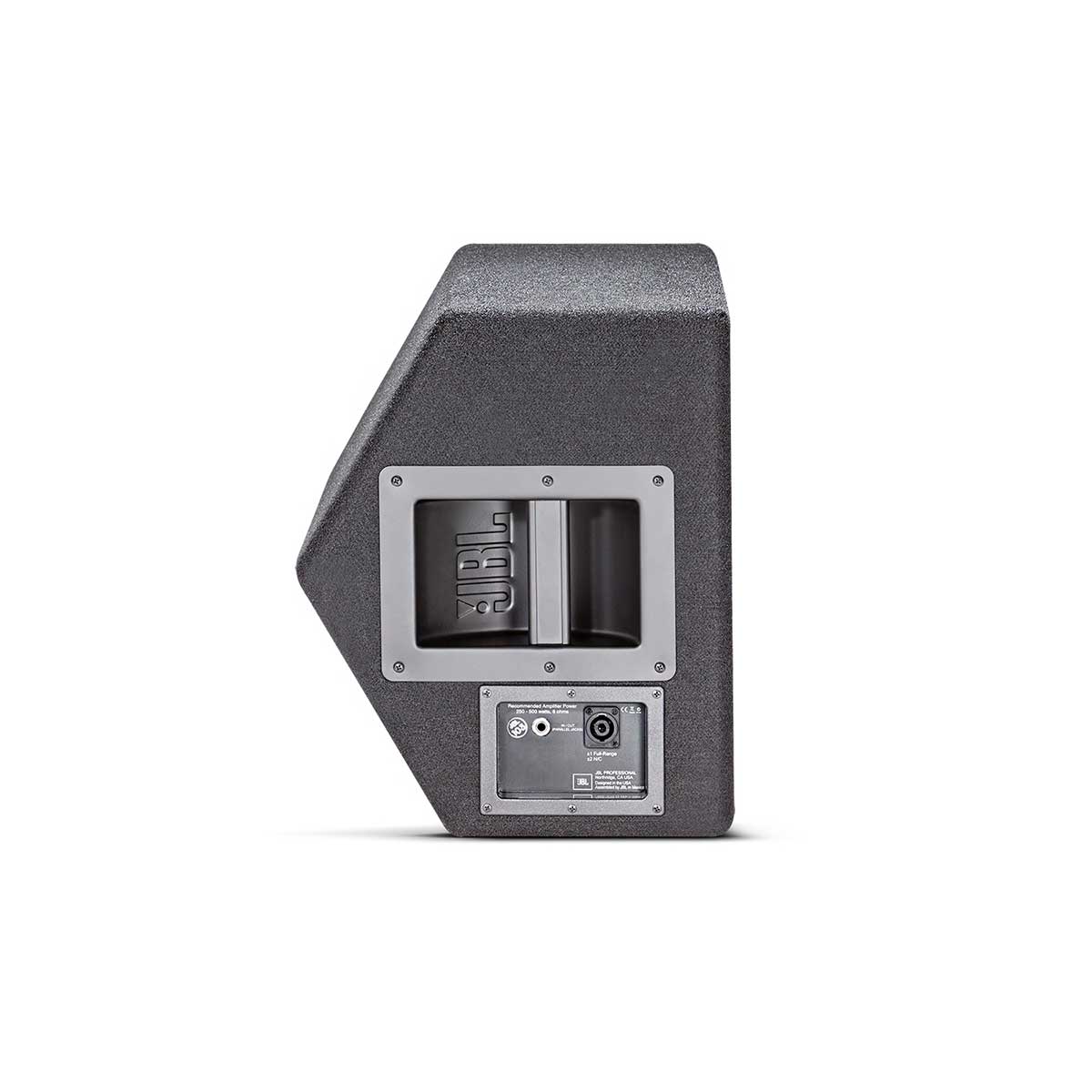

- Non-resonant, all-steel handles are used.

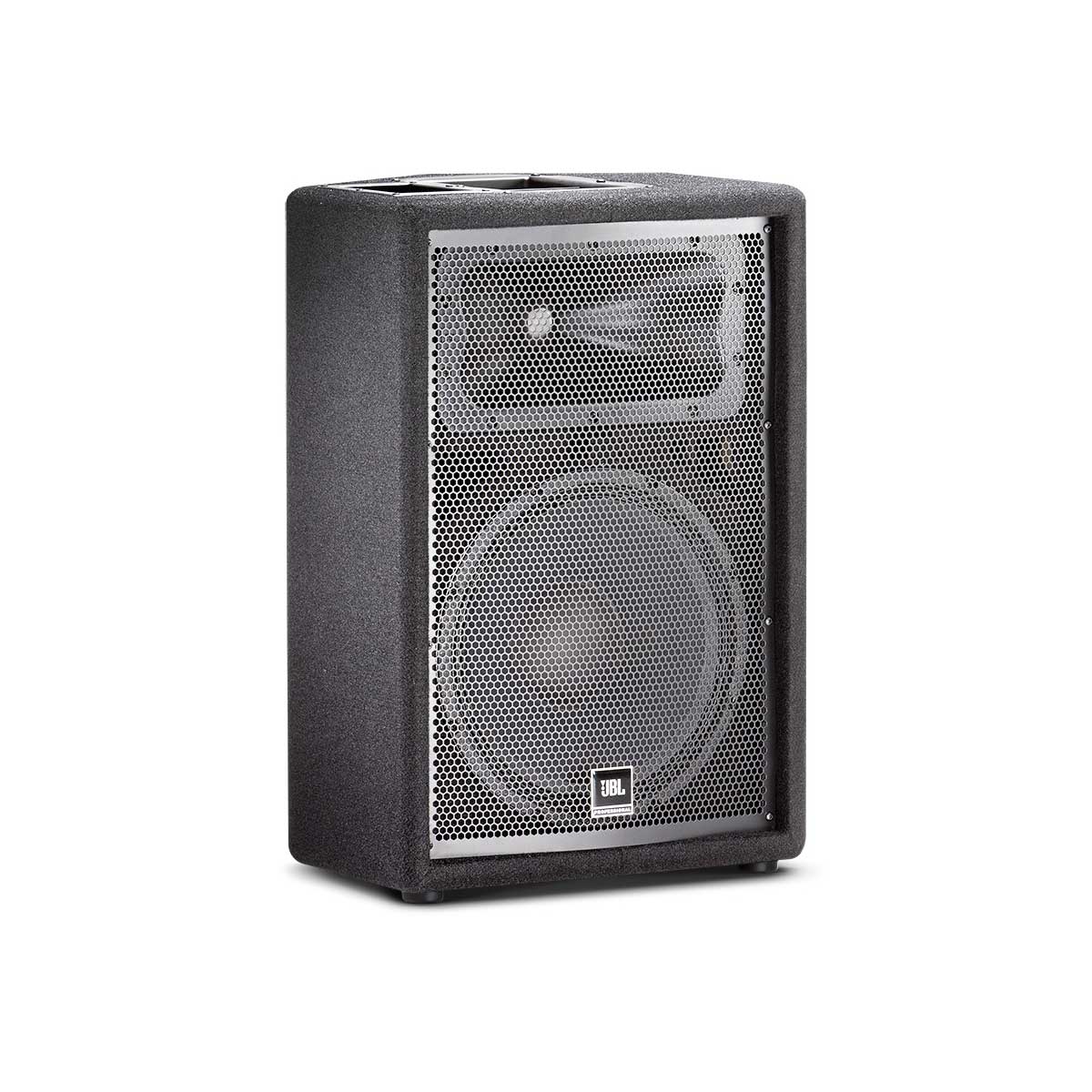

- Attractive 18-gauge hexagon perforated, steel grille protects components from damage.
- Dual-angle pole-mount socket allows the speaker to tilt 10°for more uniform audience coverage.
|Power Rating||250 W / 1000 W|
|Frequency Range (-10dB)||60 Hz - 20 kHz|
|Frequency Response (±3 dB)||80 Hz - 18 kHz|
|Sensitivity (@1m)||98 dB SPL (1w/1m)|
|Nominal Impedance||8 ohms|
|Recommended Amplifier Power||250 W to 500 W into 8 ohms|
|Maximum SPL (1m)||128 dB|
|Nominal Dispersion||90º x 50º|
|Crossover Frequency||2.1 kHz|
|Dimensions (H x W x D)||584 mm x 399 mm x 325 mm (23 in x 15.7 in x 12.8 in)|
|Weight||19.5 kg (43 lb)|
|HF Driver||JBL 2414H-C , 1" exit compression driver mounted on Progressive Transition™ Waveguide|
|LF Driver||JBL M112-8|
|Inputs||Neutrik® Speakon® NL-4 (x1); .25 inTS phone jack (x1); parallel|
|Enclosure||MDF (Medium Density Fiberboard) covered in black carpet.|
