  • MOT-M64

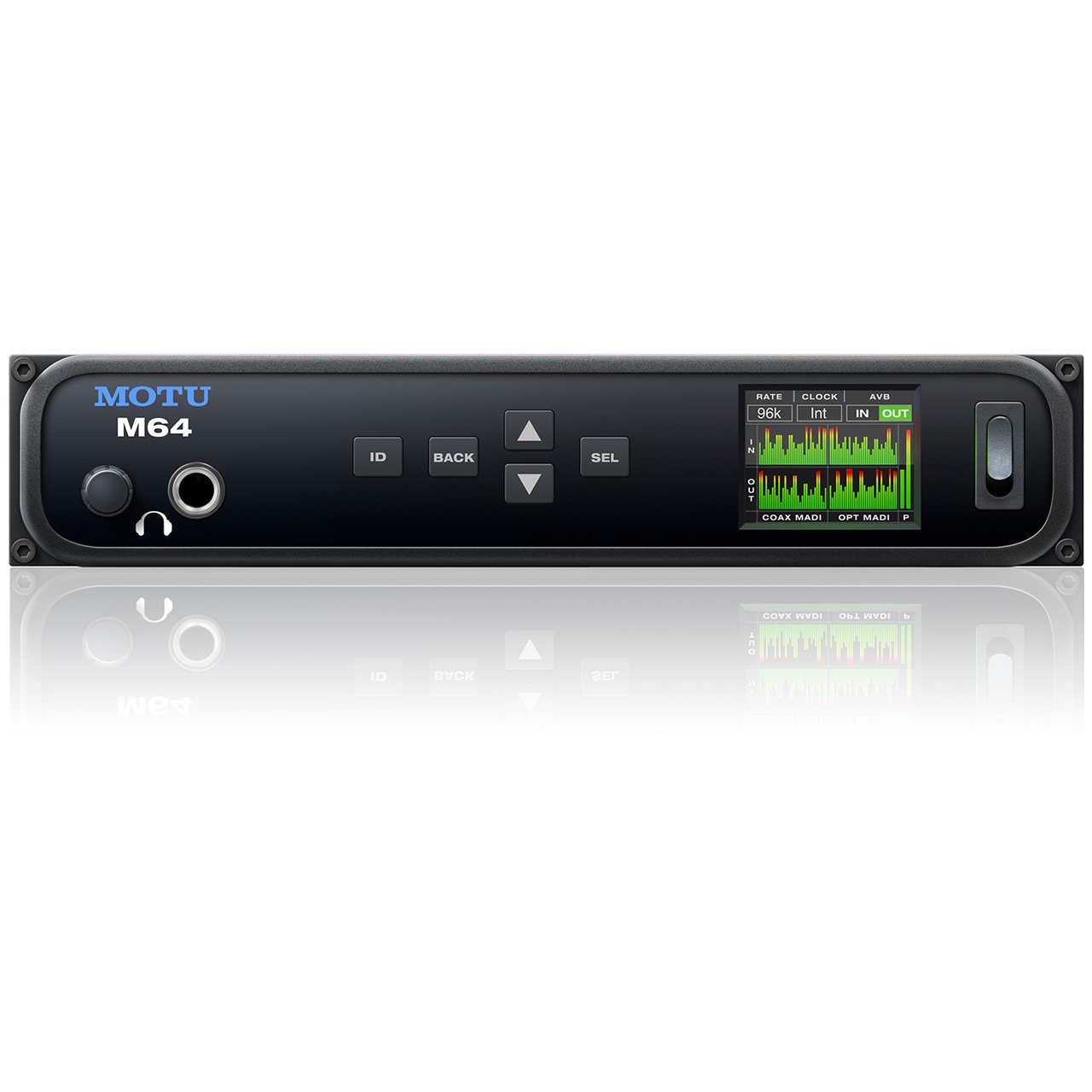

    MOTU M64 - MADI/USB/AVB-TSN Ethernet audio-interface w/ DSP & Mixing

    The MOTU M64 is a USB audio-interface, featuring AVB-TSN over ethernet. The M64 has been designed to handle large digital-audio track counts via MADI, and can be implemented live or in the studio. At 44.1/48kHz the M64 is a 256 channel device. There are 2 x mirrored BNC MADI connectors (outputs), 1 x optical and 1 x BNC for MADI inputs. The M64 also has a detailed LCD display, and handy headphone output on the front panel.


        256 channels of MADI I/O
        Optical MADI (64 channels in and out), plus independent coaxial/BNC MADI (64 channels in and out) with extra duplicate output, in all standard formats and sample rates.

        Flexible repeater, router, converter and splitter
        Send any input to any output, or split to multiple output channels. Convert optical MADI to coax MADI. Includes routing to and from the computer, plus any devices on the AVB-TSN network.

        Stand-alone operation with wireless control
        Connect a standard Wi-Fi router with a standard Ethernet cable for wireless control of device settings, routing/splitting, powerful 48-channel mixing and DSP effects.

        DSP mixing and effects processing
        Flexible 48-input digital mixer with 7 stereo aux busses, 3 stereo groups, access to 64 network inputs, and DSP effects, including reverb, 4-band EQ, gate and compression.

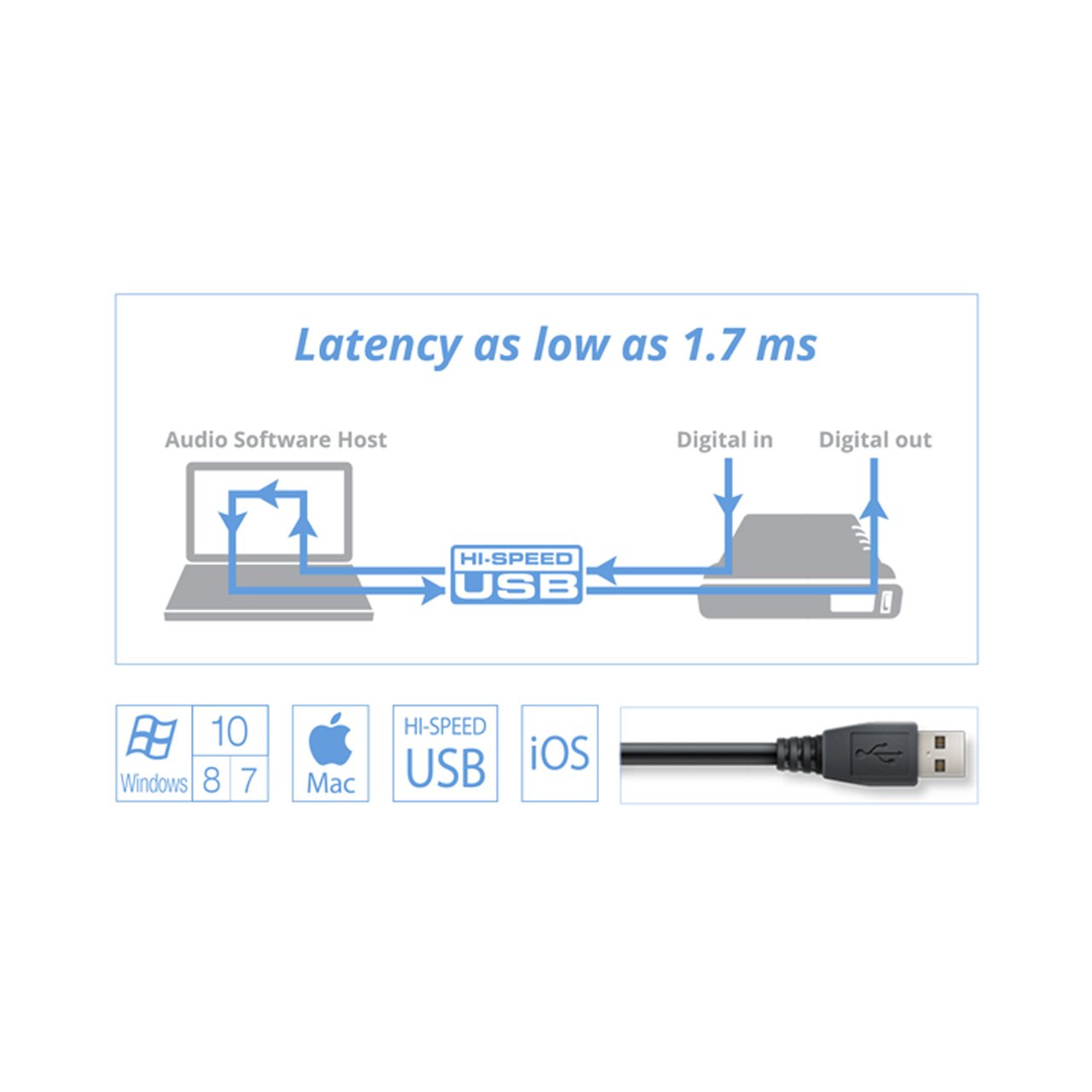

        Ultra-low latency and proven, high-performance MOTU drivers
        Universal connectivity over high-speed USB 2.0 (3.0 and iOS compatible) and AVB. Renowned drivers deliver industry-leading low latency and rock solid performance.

        Convenient headphone monitoring
        Assignable front-panel headphone output with volume control allows for monitoring of any stereo channel pair.

        Word clock I/O
        Standard word clock input and output for resolving to other digital audio gear or house sync.

        Comprehensive metering

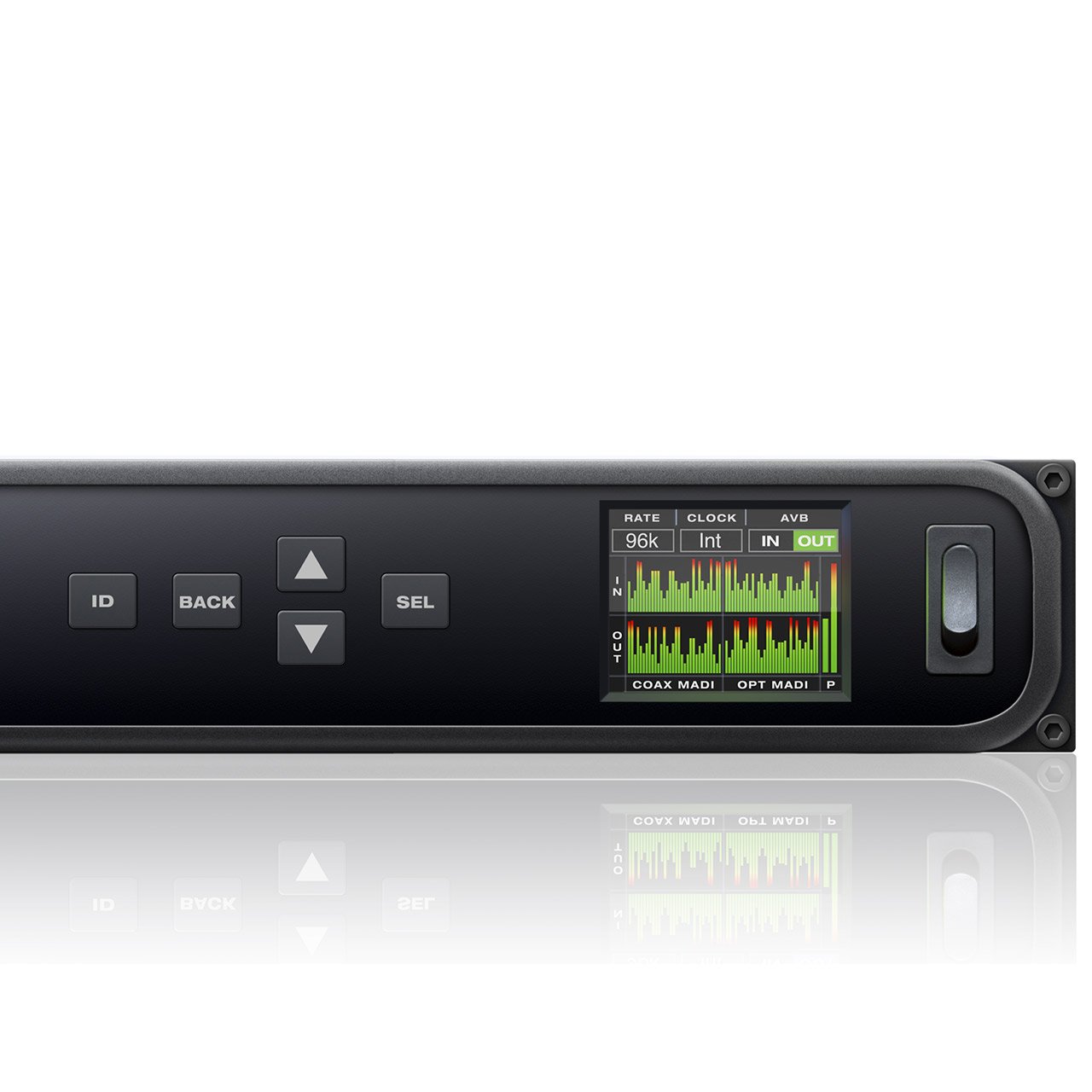

        The full-color LCD lets you view all signal activity at a glance with detailed metering for all I/O. Access hardware settings from a simple and convenient menu.

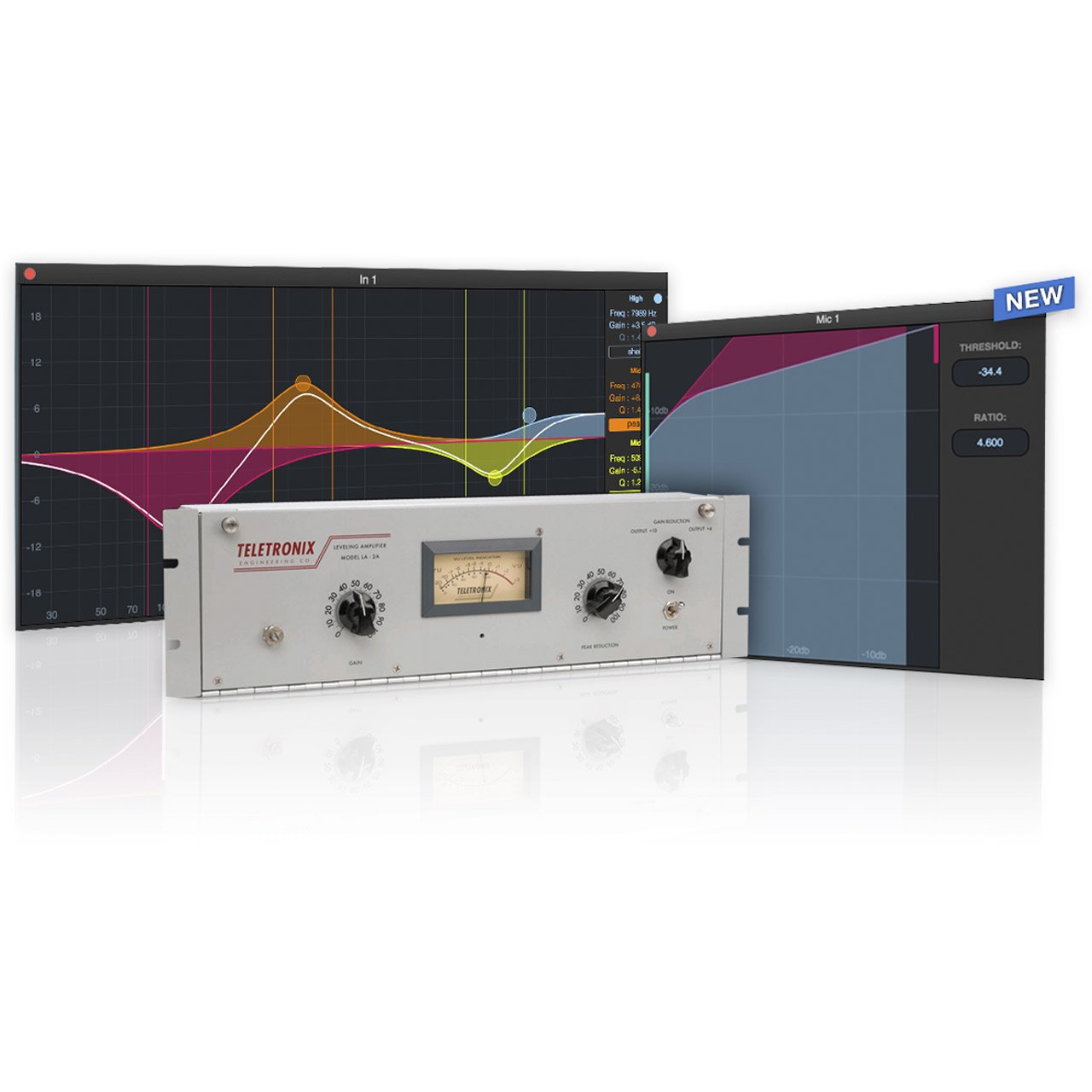

        Modeled vintage effects processing
        Classic reverb. Compression modeled after the legendary LA-2A compressor. EQ modeled after British analog console EQs.

        Web app control from any device
        Control everything from your favorite web browser on a laptop, tablet and smartphone connected to your local Wi-Fi network.

        System expansion
        Add a 2nd MOTU AVB-equipped interface with a simple CAT-5e ethernet cable. Connect up to five MOTU interfaces using a MOTU AVB Switch (sold separately).

        AVB-TSN audio networking
        Build a network with multiple interfaces and computers using standard AVB-TSN switches and network cabling, with ultra-low network latency, even over long cable runs (100 meters point to point). Stream hundreds of audio channels among devices and computers on the network.

        Audio analysis tools
        includes a full-screen real-time FFT display, spectrogram “waterfall” display, full-featured oscilloscope, X-Y plot and phase analyzer.

        Includes AudioDesk workstation software for Mac and Windows with 24-bit recording, sample-accurate editing and 32-bit mixing and mastering.

        Sample rates 44.1, 48, 88.2, 96, 176.4, 192 kHz

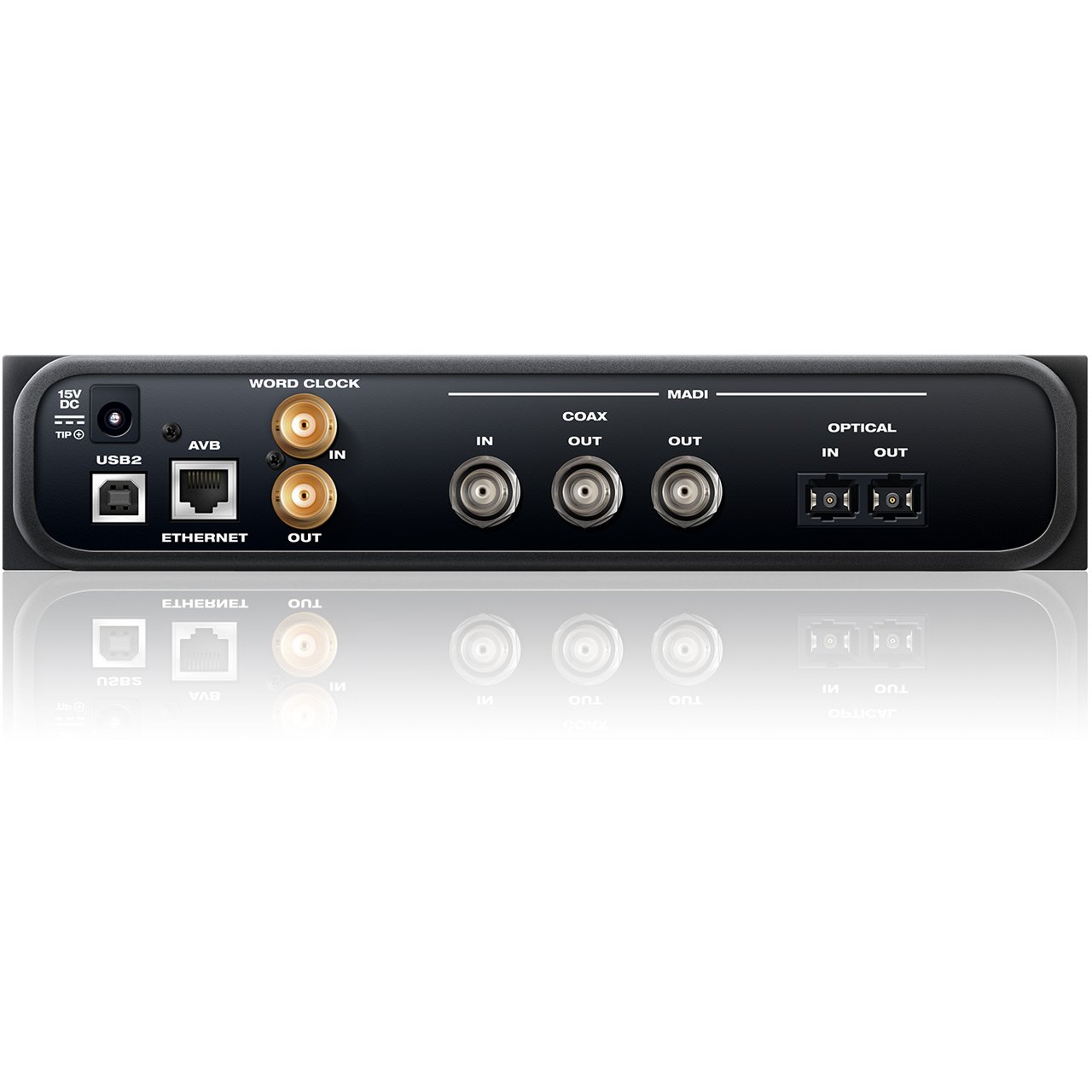

        Digital I/O 1x BNC MADI in
        2x BNC MADI out (mirrored)
        1x optical MADI in/out
        64/56 ch @ 1x, 32/28 @ 2x, 16/14 @ 4x
        Total I/O 128 in / 128 out (256 total) at 1x sample rates
        64 in / 64 out (128 total) at 2x sample rates
        32 in / 32 out (64 total) at 4x sample rates
        Computer I/O 1 x USB 2.0 audio class compliant
              USB 3.0 and iOS compatible
        Computer I/O channels 64 in/out at 1x (44.1 to 48 kHz)
        32 in/out at 2x (88.2 to 96 kHz)
        24 in/out at 4x (176.4 to 192 kHz)
        Headphone 1 x 1/4" TRS stereo phone (assignable)
        Front panel 1 x 1/4" TRS headphone output
        4x switches for menu navigation
        160 x 128 RGB LCD for level meters / menu
        Power External 12-18V DC power supply
        1.0A max • tip pos or neg
        and weight
        (width x depth x height, enclosure only)
        8.6 x 7 x 1.75 inches
        22 x 17.75 x 4.5 cm
        2.0 lbs / 0.9 kg

        Mac System Requirements

        • 1 GHz Intel-based Mac or faster
        • 2 GB RAM; 4 GB or more recommended
        • Mac OS X version 10.8 or later
        • Available USB 2.0 or 3.0 port
        • A large hard drive (at least 500 GB for recording)

        Windows System Requirements

        • 1 GHz Pentium-based PC compatible or faster
        • 2 GB RAM; 4 GB or more recommended
        • Windows 7, 8 or 10
        • Available USB 2.0 or 3.0 port
        • A large hard drive (at least 500 GB for recording)

        Web App Support

        • Any web client platform: Mac, Windows, Linux, iOS, Android
        • Any web browser: Safari, Firefox, Chrome, Opera, Explorer, etc.

        Included Software

        • MOTU Discovery App for Mac & PC (finds connected MOTU interfaces)
        • MOTU Discovery App for iOS (available from Apple App Store)
        • MOTU Pro Audio Control web app (served from the hardware itself)
        • MOTU Audio Tools (FFT, oscilloscope, X-Y plot, phase analyzer)
        • AudioDesk 4.0 for Mac & PC (separate download)

        Operating Systems

        • For computer audio I/O: Mac OS X 10.8 or later; Windows 7 or later
        • For web app control: Mac, Windows, Linux, iOS, Android

        ** Please note, system requirements may change. For the most recent system requirements please visit the manufacturer's official product listing **

    Need more info on the MOTU M64?
