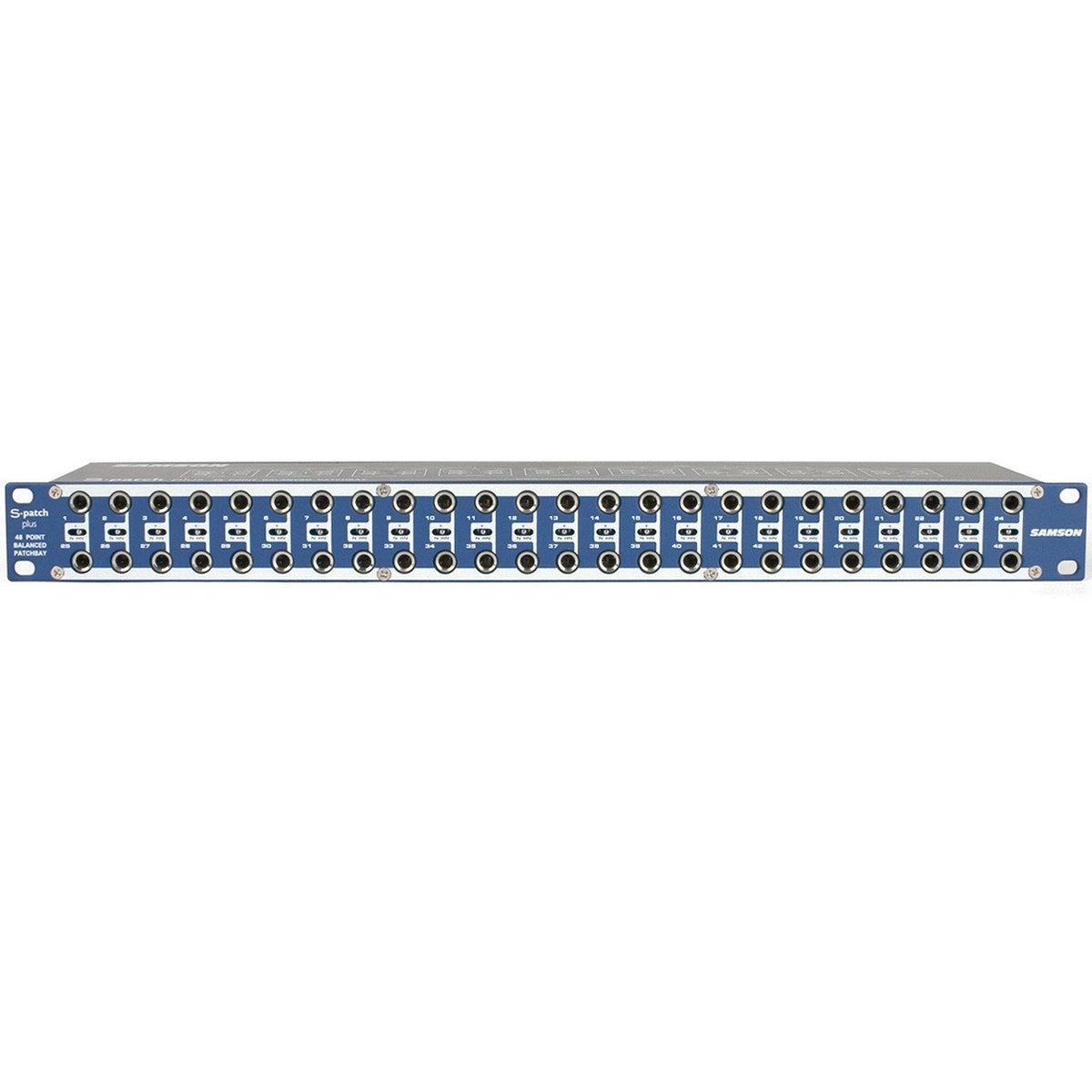

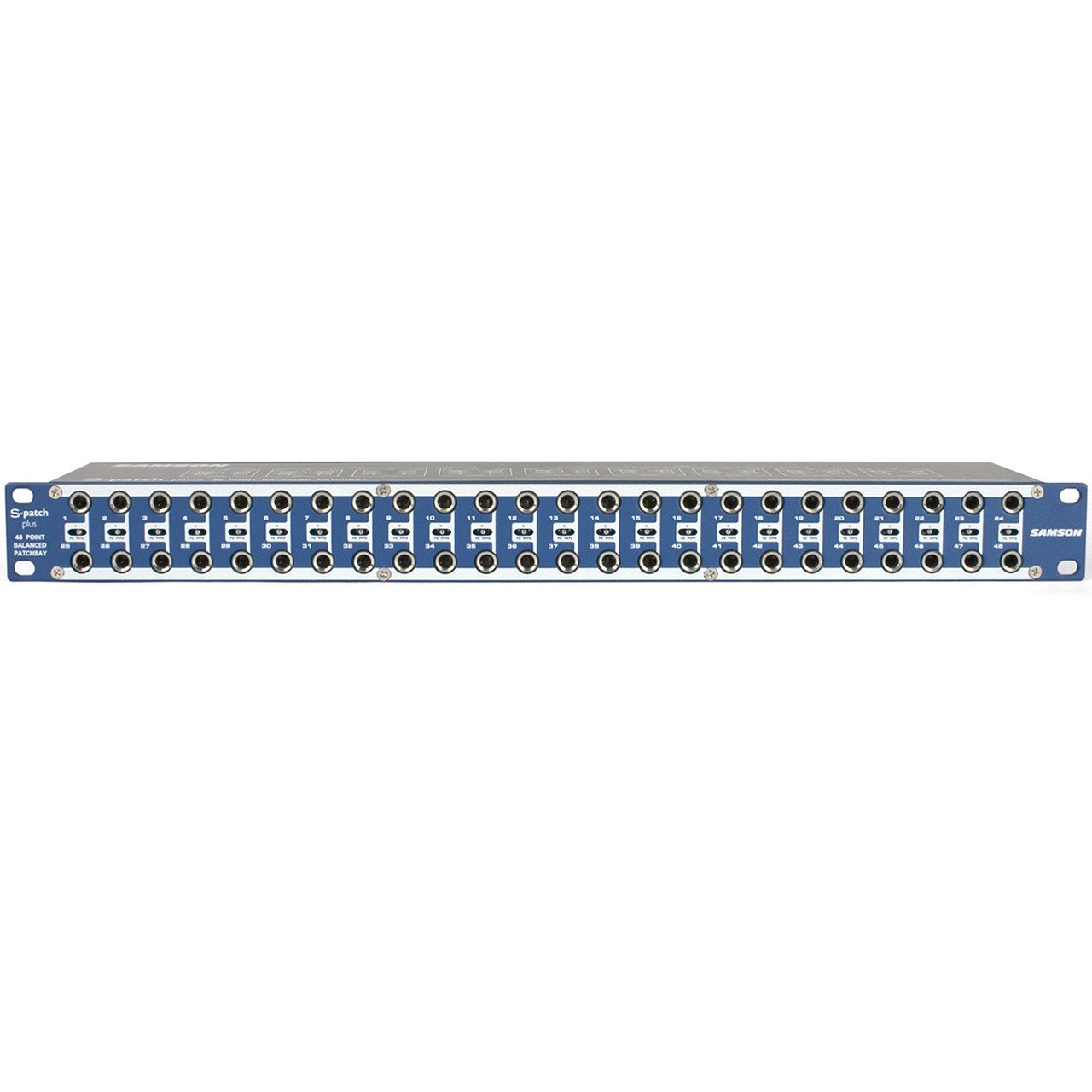

Samson S-patch plus - 48-Point Balanced Patchbay


Excellent value from Samson for anyone interested in a 1/4 inch connecting analog patch-bay solution offering 24 channels. The ultimate patchbay. Fully balanced and extremely durable, our 48-point patchbay makes all your connections easy.

    • Samson S-patch plus PRODUCT FEATURES:


      The S-Patch plus has been designed to provide a convenient, central point to make all your audio connections. Featuring solid construction with 48, 1/4” phone plugs on the front and 48, 1/4” phone plugs on the rear, the S-Patch plus will provide reliable operation while maintaining a clean signal path.
      In addition, the S-Patch plus features high quality, miniature toggle switches allowing each channel to be configured for either Normalled, Half-normalled or Thru operation.
      And since these mini-toggle switches are conveniently located on the front panel, you can instantly change any channels configuration without the need to remove the unit from the rack.
      Whether you’re working in a personal studio or larger professional studio, using one or more S-Patch plus’ will eliminate the need to make connections by reaching around the back of your mixer or equipment rack. S-Patch plus helps you work cleaner and faster, allowing you to focus on making a better production.

      Feature Summary

      Fully balanced, extremely durable 48-Point Patchbay

      Normal, Half-normal and Through Mode operation

      3-way Front Panel Mode Switches

      1/4" TRS Connectors

      19" Rack Mount Chassis

    • Samson S-patch plus TECHNICAL SPECIFICATIONS:


      Switchable Configuration Modes
      Normal, Half-normal and Thru

      Dimensions (H x W x D)
      1 3/4˝ x 19˝ x 3˝ (44.45mm x 482.6 mm x 68.5mm)

      3.8 lbs. (1.72Kg)

Need more info on the Samson S-patch plus?
