Summit Audio

SUM-TLA100A

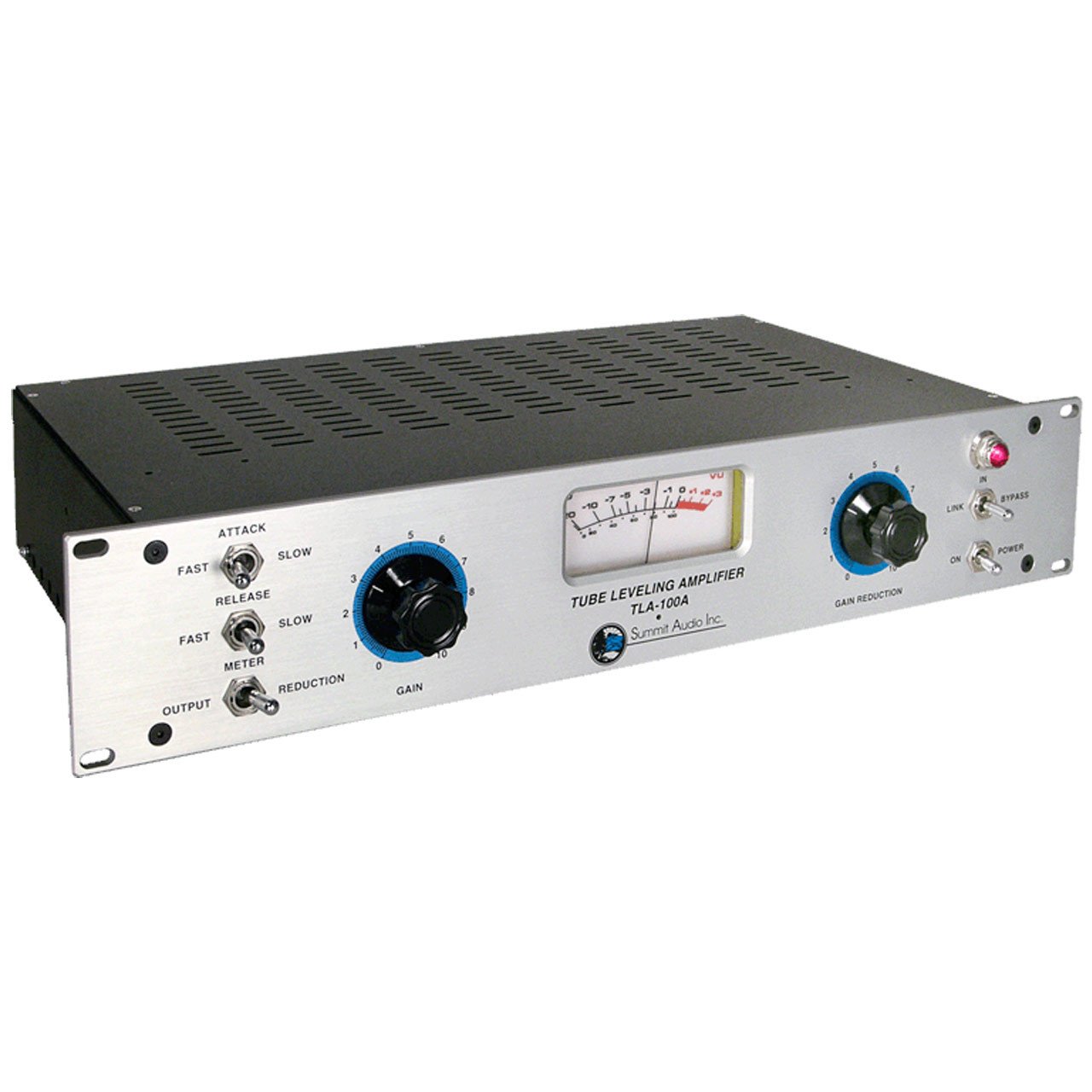

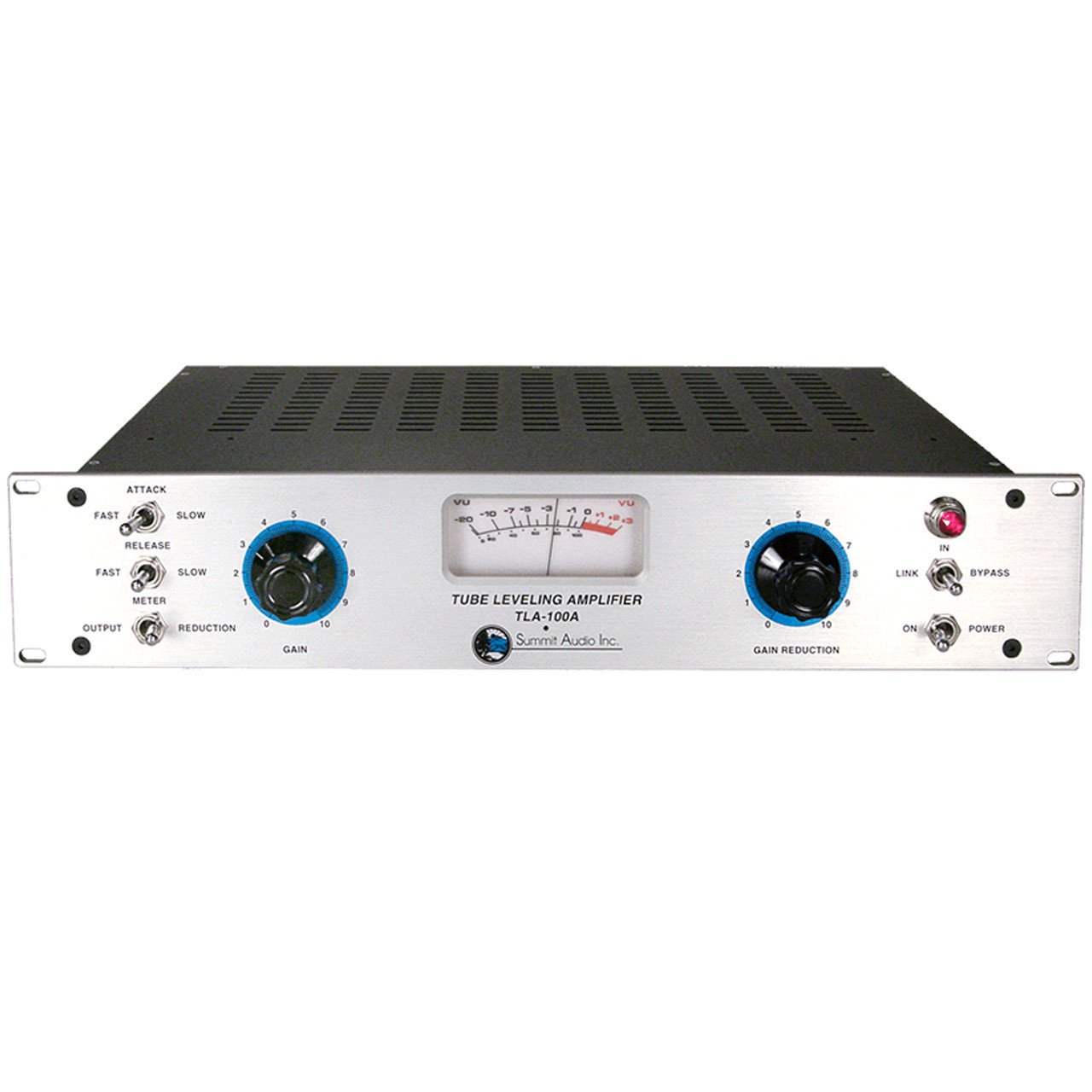

Summit Audio TLA-100A Tube Levelling Amplifier

The TLA-100A by Summit Audio is a leveling amplifier that incorporates both tube and transistor technologies. Sonically, is boasts the smooth response of an optical compressor. However, the TLA-100A also has an accurate and extremely fast attack, making it ideal for tracking lead vocals and drums. The TLA-100A has been handcrafted in the USA.


    • Summit Audio TLA-100A Features:

      Revered
      The world-renowned Summit Audio TLA-100A tube leveling amplifier has been regarded as a staple by studio and live engineers around the world for more than a quarter of a century.

      Simple to operate
      The main thing that has made the TLA-100A an industry standard since it's introduction in the mid-80s is that it's one of the easiest compressors to use, allowing the focus to remain on the performance...not on the gear.

      Best of both worlds
      One of the main qualities that makes the TLA-100A so desirable is that it has the smooth program dependent sound of an optical compressor, but is capable of the much faster attack times required for taming fast transients found in source material such as vocals, bass, and drums.

      Hand-crafted in the USA
      Each piece of Summit gear is meticulously crafted by hand in our shop using only the best quality components and attention to detail. Quality components and engineering know-how are the critical element to the sound and longevity of audio gear.
    • Summit Audio TLA-100A Specifications:

      Height: 3.5 inches (8.89 cm)
      Width: 19 inches (48.26 cm)
      Depth: 10 inches (25.40 cm)
      Weight: 17 pounds (7.71 kg)

      Power Configuration
      Internal AC Supply
      35 watts, 115 or 230 volts, 50 or 60 Hz (Rear Switchable)
      Fuse Size: 0.5 Amp for 115 VAC, 0.25 Amp for 230 VAC

      Compressor Data
      Attack times: 180uS-100mS
      Release times: 32mS- 1.5S

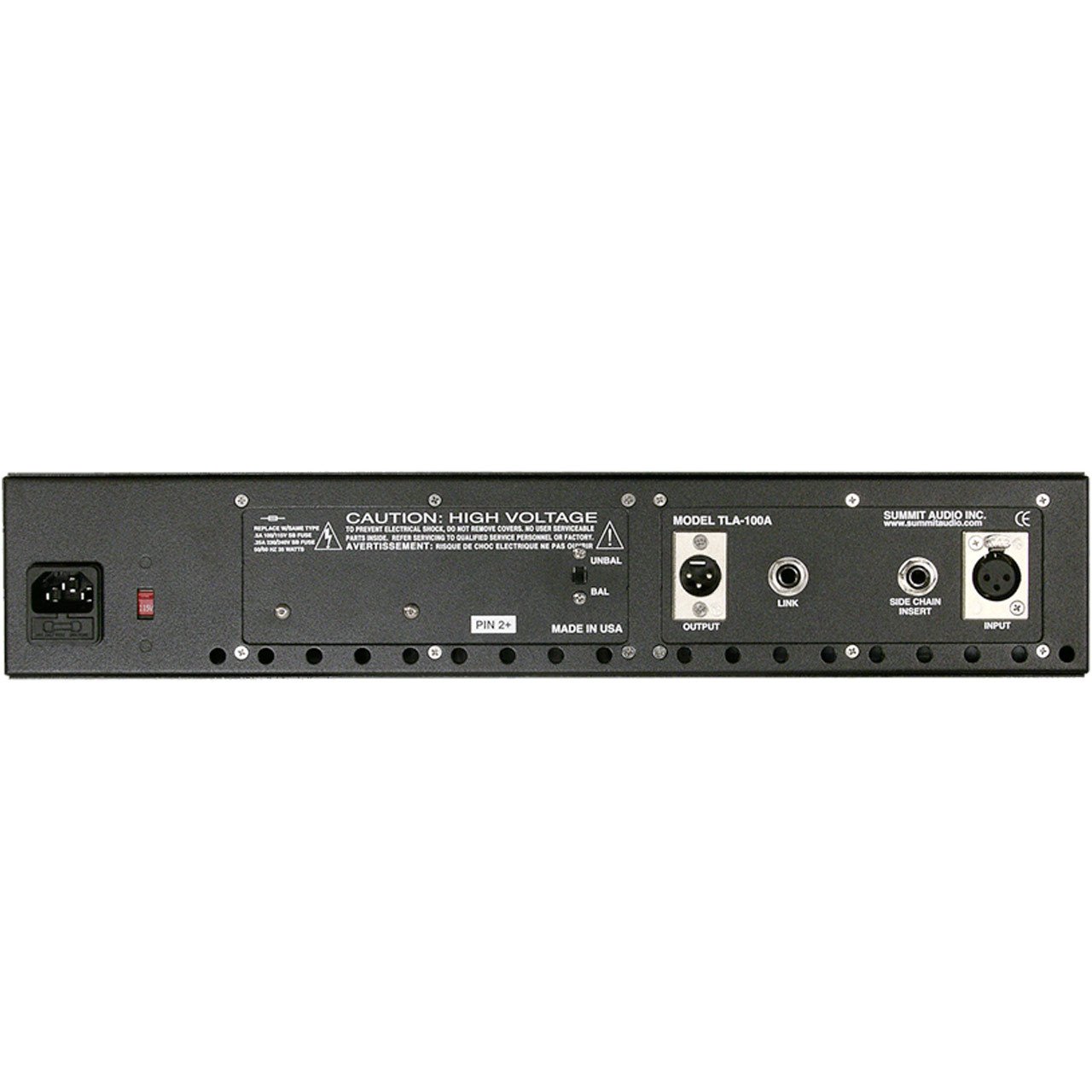

      Connections
      Inputs: +4 dB female XLR
      Outputs: +4 dB male XLR
      Stereo Link: 1/4" mono Jack
      Side Chain: 1/4 stereo jack for balanced signal input

      Max input level
      Max input level: +26dBu
      Max output level (XLR): +20dBu
      Max gain: +34dBu

      Operating Measurements
      Frequency response: 20Hz- 20kHz +/- 1dB with 5dB compression
      Signal to noise ratio: 124dB
      THD + Noise: 0.09% @ 1kHz, 0dB out
      Dynamic Range: 60dB
      Vacuum tubes: single 12AX7A
Need more info on the Summit Audio TLA-100A?
